MODEL A B C
CPS3000 SERIES 260mm 302mm 7mm
CPS1500 SERIES 150mm 302mm 7mm
CPS1000 SERIES 220mm 240mm 6mm
CPS400 SERIES 168mm 240mm 5.2mm

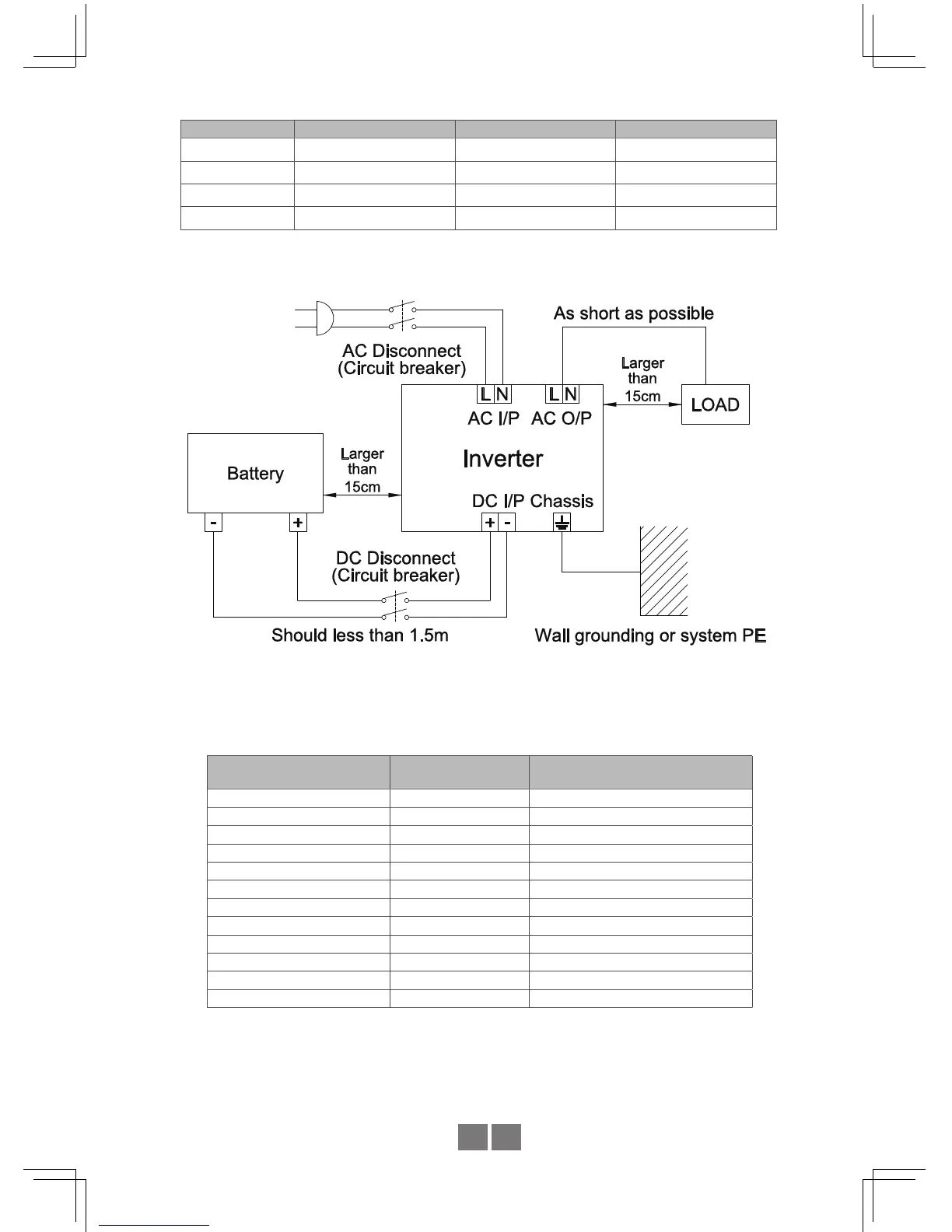

(D) Example of System Diagram
(E) MAXIMUM OVERCURRENT PROTECTION AMPACITY
This rating species the proper overcurrent protection ampacity
MODEL AMPACITY DC
DC BREAKER CURRENT RANG
(Recommend)
CPS3000SA12/ESA12 320 amps 125%
CPS3000SA24/ESA24 155 amps 125%
CPS3000SA48/ESA48 77 amps 125%
CPS1500SA12/ESA12 166 amps 125%
CPS1500SA24/ESA24 81 amps 125%
CPS1500SA48/ESA48 40 amps 125%
CPS1000SA12/ESA12 106 amps 125%
CPS1000SA24/ESA24 53 amps 125%
CPS1000SA48/ESA48 27 amps 125%
CPS400SA12/ESA12 43 amps 125%
CPS400SA24/ESA24 21 amps 125%
CPS400SA48/ESA48 10.5 amps 125%
