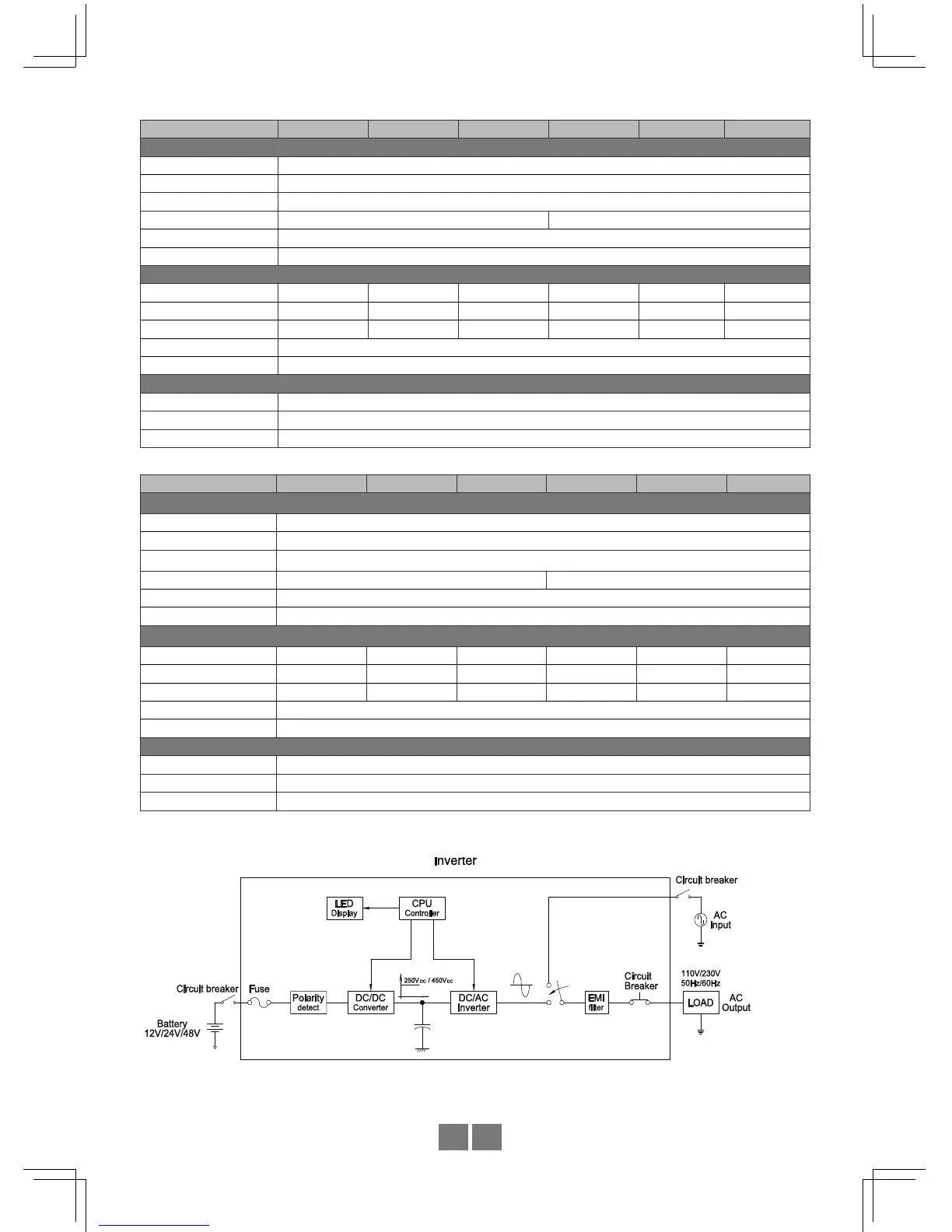

Cyber Power CPS3000 - System Block Diagram

MODEL
CPS1000SA12 CPS1000SA24 CPS1000SA48 CPS1000ESA12 CPS1000ESA24 CPS1000ESA48
OUTPUT
RATED POWER 1000W
MAX. POWER 1150W 200 sec. / 1500W 10 sec
SURGE POWER 2000W > 0.5 s
FREQUENCY 120V ±3% and 50Hz / 60Hz ±0.001Hz 230V ±3% and 50Hz / 60Hz ±0.001Hz
WAVEFORM True sine wave (THD <3.0%)
PROTECTION AC Short, Overload, Over Temperature
DC INPUT (Battery)
BAT. VOLTAGE 10.5 ~15.0V 21.0 ~30.0V 42.0 ~ 60.0V 10.5 ~15.0V 21.0 ~30.0V 42.0 ~ 60.0V
DC CURRENT
(Max)
106A 53A 27A 106A 53A 27A
EFFICIENCY 90% 91% 91% 90% 92% 93%
OFF MODE CURRENT Under 1.0mA at power switch off
PROTECTION Over Load, Battery Polarity, Reverse by Fuse, Battery Low Shutdown, Battery Low Alarm
OTHER
DIMENSION(L*W*H) 340*260*60mm
WEIGHT 4.1kg
COOLING Temperature controlled fan
MODEL CPS3000-12L CPS30
MODEL
CPS400SA12 CPS400SA24 CPS400SA48 CPS400ESA12 CPS400ESA24 CPS400ESA48
OUTPUT
RATED POWER 400W
MAX. POWER 460W 200 sec. / 600W 10 sec
SURGE POWER 800W
>
0.5 s
FREQUENCY 120V ±3% and 50Hz / 60Hz ±0.001Hz 230V ±3% and 50Hz / 60Hz ±0.001Hz
WAVEFORM True sine wave (THD <3.0%)
PROTECTION AC Short, Overload, Over Temperature
DC INPUT (Battery)
BAT. VOLTAGE 10.5 ~15.0V 21.0 ~30.0V 42.0 ~ 60.0V 10.5 ~15.0V 21.0 ~30.0V 42.0 ~ 60.0V
DC CURRENT
(Max)
43A 21A 10.5A 43A 21A 10.5A
EFFICIENCY 89% 90% 90% 90% 91% 92%
OFF MODE CURRENT Under 1.0mA at power switch off
PROTECTION Over Load, Battery Polarity, Reverse by Fuse, Battery Low Shutdown, Battery Low Alarm
OTHER
DIMENSION(L*W*H) 239×257×57.3mm
WEIGHT 2.54kg
COOLING Temperature controlled fan
MODEL CPS3000-PS3000-24L CPS3000-48L CPS3000-12H CPS3000-
2.3 System Block Diagram
