HARDWARE INSTALLATION
These versatile UPS systems can be mounted in a rackmount or vertical
tower orientation. This versatility is especially important to growing
organizations with changing needs that value having the option to
position a UPS on a floor or in a rackmount system. Please follow the
instructions below for the respective mounting methods.
SAFETY PRECAUTIONS
CAUTION! To prevent the risk of fire or electric shock, only use the
supplied hardware to attach the mounting brackets.

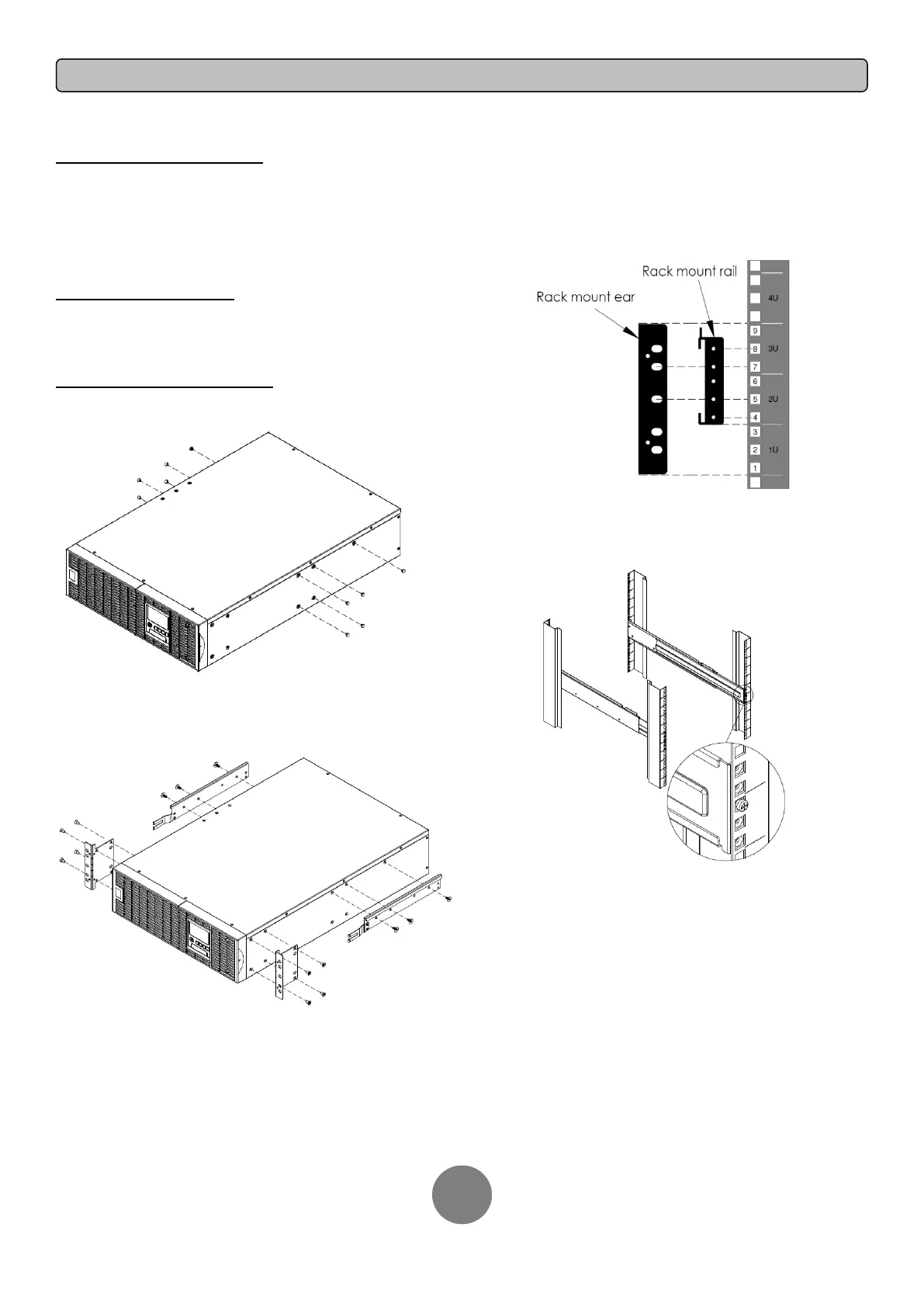

RACKMOUNT INSTALLATION
Step 1: Remove the dust covers
Remove the dust covers *10pcs from the screw holes.
Step 2: Rackmount ears & hanging brackets installation
Attach two rackmount ears to the UPS using the provided M5X7L*8pcs
screws and tighten two hanging brackets with the M5X6L*6pcs screws.
Step 3: Rackmount rail Installation
The rails adjust to mount in 48-cm (19-inch) racks from 52 to 91.5cm
(20.5 to 36 inches) deep. Select the proper holes in the rack for
positioning the UPS in the rack. The UPS takes up 3 rack units, rack
holes positions 1 through 9.
Position the guide screws on the rails into the rear rack square holes to
temporarily support the rails in place. Tighten the front rail screws on the
rack.
