Cybex Arc Trainer 630A Owner’s Manual

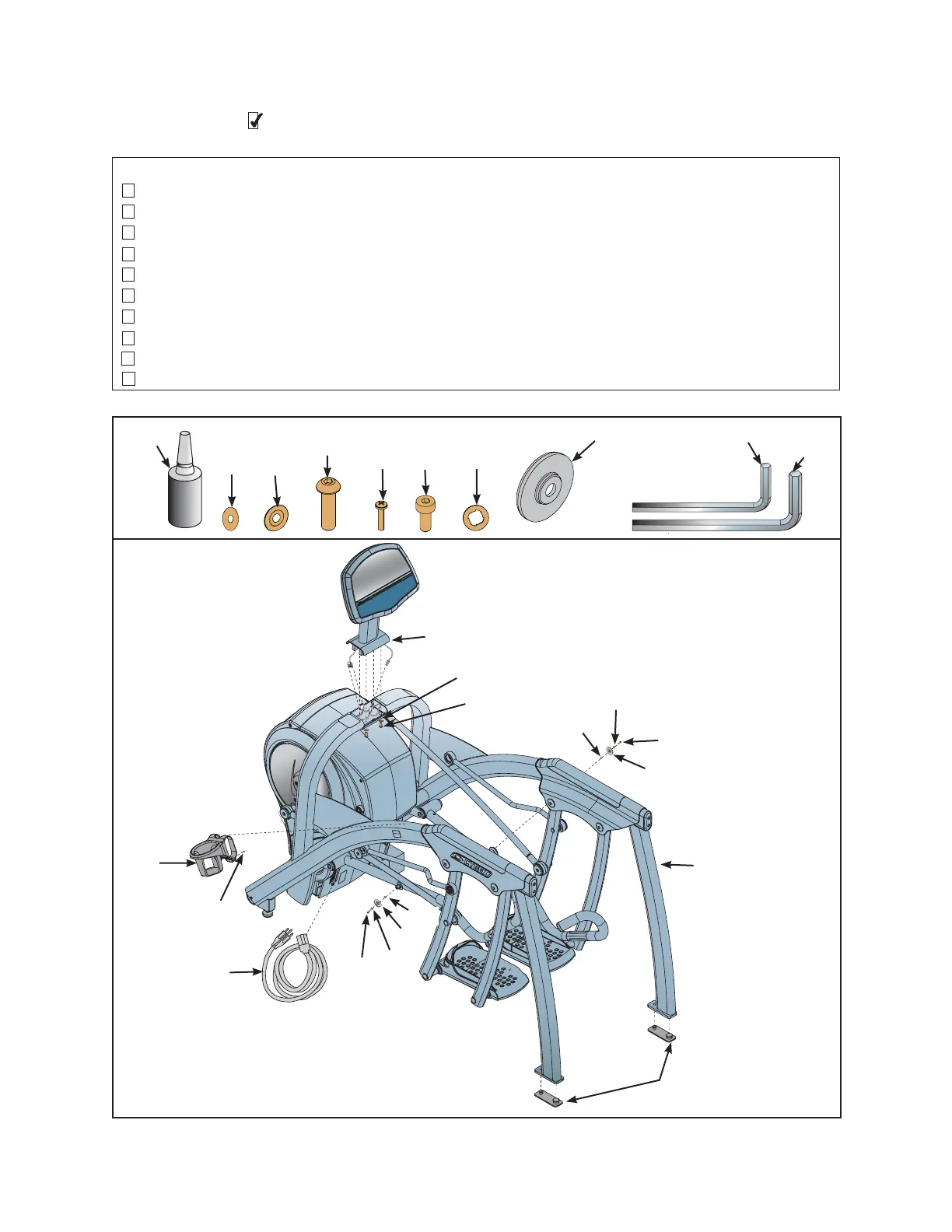

E. Check off ( ) each item in the hardware pack as you find it. See Figure 2.
Setup
and Assembly
Page 5-4
Figure 2
Item Qty Part Number Description
11 1 YA000201 Threadlocker
12 2 600A-311 Flange Spacer
13 4 JC700422 BHSCS .375-16 x 1.50
14 2 HT552515 Pan HD Phil HD Self Tapping 8-16 x .75 Type WB Black
15 2 HX622815 SHCSC .250-20 x .75
16 4 JS347400 Internal Tooth Lockwasher
17 2 PL-16535 Linkage Rod Cap
18 2 BK030204 7/32” Allen wrench
19 1 BK030201 3/16” Allen wrench
20 2 HS307601 Washer .281 x .50
#2
#12
#20
#20
#15
#17
#16
#13
#1
#4
#12
#17
#15
#5
(Optional)
#3
#14
#13
#11
#17
#12
#20
#14
#15
#16
#18
#19
Hardware
