Cybex Arc Trainer 630A Owner’s Manual
C15
C20
C15
C20
C21
C40
C1
C10
C41
C7
C28
C32
C28
C32
C27
C27
C27
C34
C36
C16
C14
C32
C25
C25
C32
C35
C33
C24
C9
C8
C6
C12
C13
C5
C42
C23
C30
C29
C39
C22
C36
C26
C11
C2
C19
C34
C4
C17
C34
C34
C34
C18
C22
C39
C3
C38
C3
C37
C31
C34
C45
C43
C27
A/C Option Only
Customer
Service
Page 6-13
C15
C20
C15
C20
C21
C40
C1
C10
C41
C7
C28
C32
C28
C32
C27
C27
C27
C34
C36
C16
C14
C32
C25
C25
C32
C35
C33
C24
C9
C8
C6
C12
C13
C5
C42
C23
C30
C29
C39
C22
C36
C26
C11
C2
C19
C34
C4
C17
C34
C34
C34
C18
C22
C39
C3
C38
C3
C37
C31
C34
C45
C43
C27
A/C Option Only

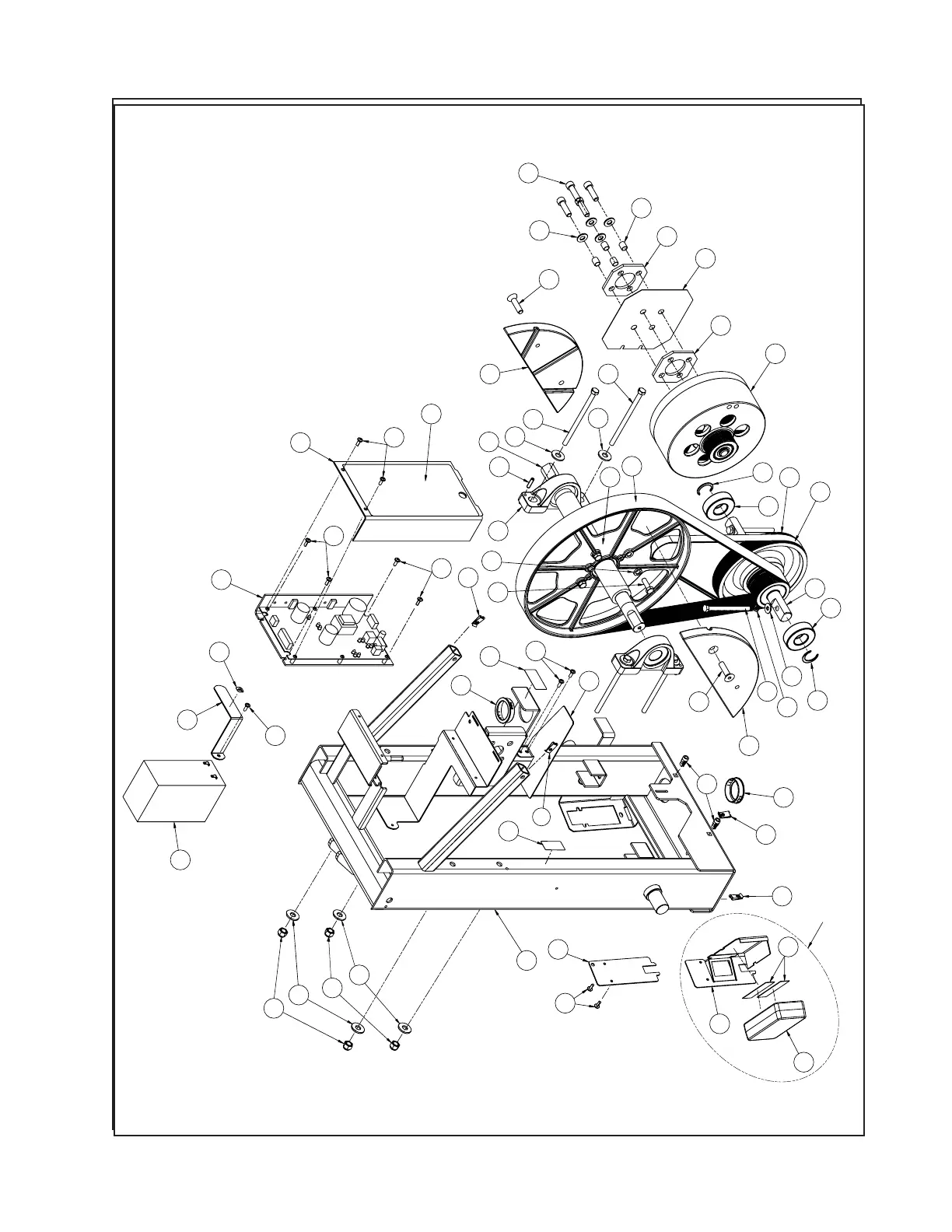

Front End Assembly
82
84
Table of Contents
Default Chapter
5
About this Manual
5
FCC Compliance Information
5
Table of Contents
6
1 Safety
9
Important Voltage Information
9
Grounding Instructions
9
Important Safety Instructions
10
Warning Decals
13
Warning Decals for Units with AC Power Kit
15
Caution Decals
16
Explanation of Symbols Used
17
2 Technical Specifications Specifications
20
3 Operation
21
Terms and Symbols Used
21
Intended Use
22
Quick Operation Guide
23
Detailed Operation Guide
23
Stopping the Arc Trainer 630A
27
Presence Detect
27
Control During Operation
27
Data Readouts
28
Displaying Heart Rate
29
Heart Rate LED
29
Use of Programs
30
Manual Mode
31
The Workout Profile
31
Range of Motion
31
Hill Interval
33
Interval
35
Weight Loss
37
Cardio
39
Strength
41
Manual
43
4 Preventive Maintenance
45
Warnings
45
Regular Maintenance Activities
45
Cleaning Your Arc Trainer 630A
46
Drive Belt Maintenance
47
Lubrication
49
Environment
49
Storage
49
Service Schedule
50
Rechargeable Battery
51
5 Setup and Assembly
53
Warnings/Cautions
53
Choosing and Preparing a Site
53
Electrical Power Requirements
54
Assembling the Arc Trainer 630A
54
Testing the Operation
63
Setting Operation Options
64
Cybex Personal Entertainment Monitor - Optional
65
Total Access Arm Lock Assembly
69
Optional
70
Side Handle - Optional
70
6 Customer Service
71
Contacting Service
71
Serial Number and Voltage
71
Return Material Authorization (RMA)
72
Damaged Parts
73
Ordering Parts
73
Total Access Conversion
76
Heart Rate Grip
76
Schematic
85
5
