Cybex Arc Trainer 750A/750AT Owner’s Manual
21
Liftandmoveunit.

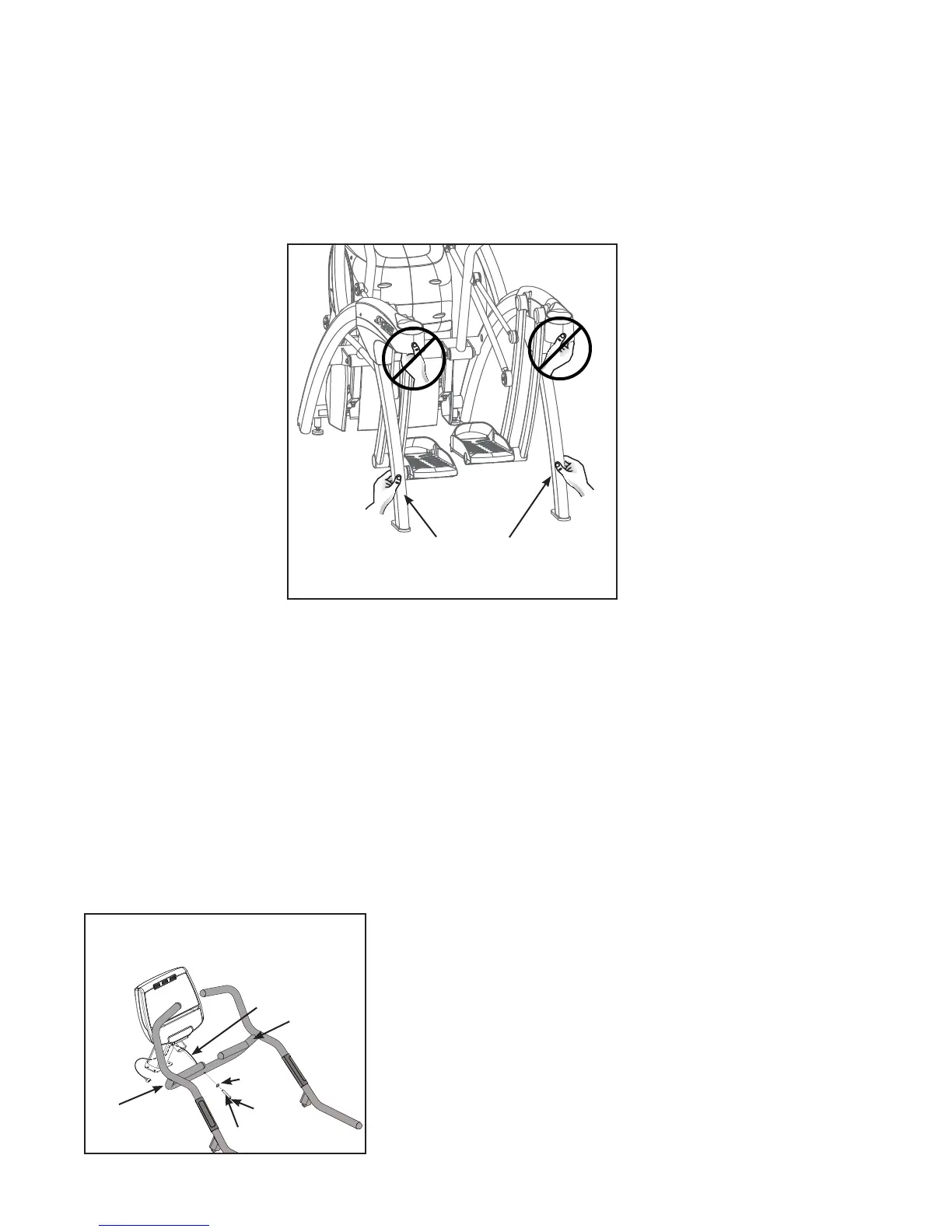

1. Carefully remove large bolts and shipping supports. Keep package material on linkage arms at
this time. This will protect the paint from scratching during assembly.
With one person on each side, firmly grasp each rear support leg and lift. Do not grasp plastic 2.
pivot covers. Grasping plastic pivot covers may cause damage to unit.
Lower Rear
Support Legs
Using proper lifting methods, lift the lower rear support legs so the front transport wheels are able 3.
to roll on floor.
Move unit to intended location.4.
Carefully lower rear support leg.5.
Attach 750A console assembly to handrail assembly.
NOTE: If installing the A/V option, refer to the installation instructions supplied with the A/V unit.
Locate the console assembly (#2a), handrail assembly (#2b), saddle washer (#14a) and one 1.
BHSCS .375-16 x 2.25 SS (#14b).
750A
#2a
#2b
#14a
#14b
Upper Contact
Heart Rate
Cable
#16 (Loctite)
To Next Page
