Cybex Arc Trainer 750A/750AT Owner’s Manual
22

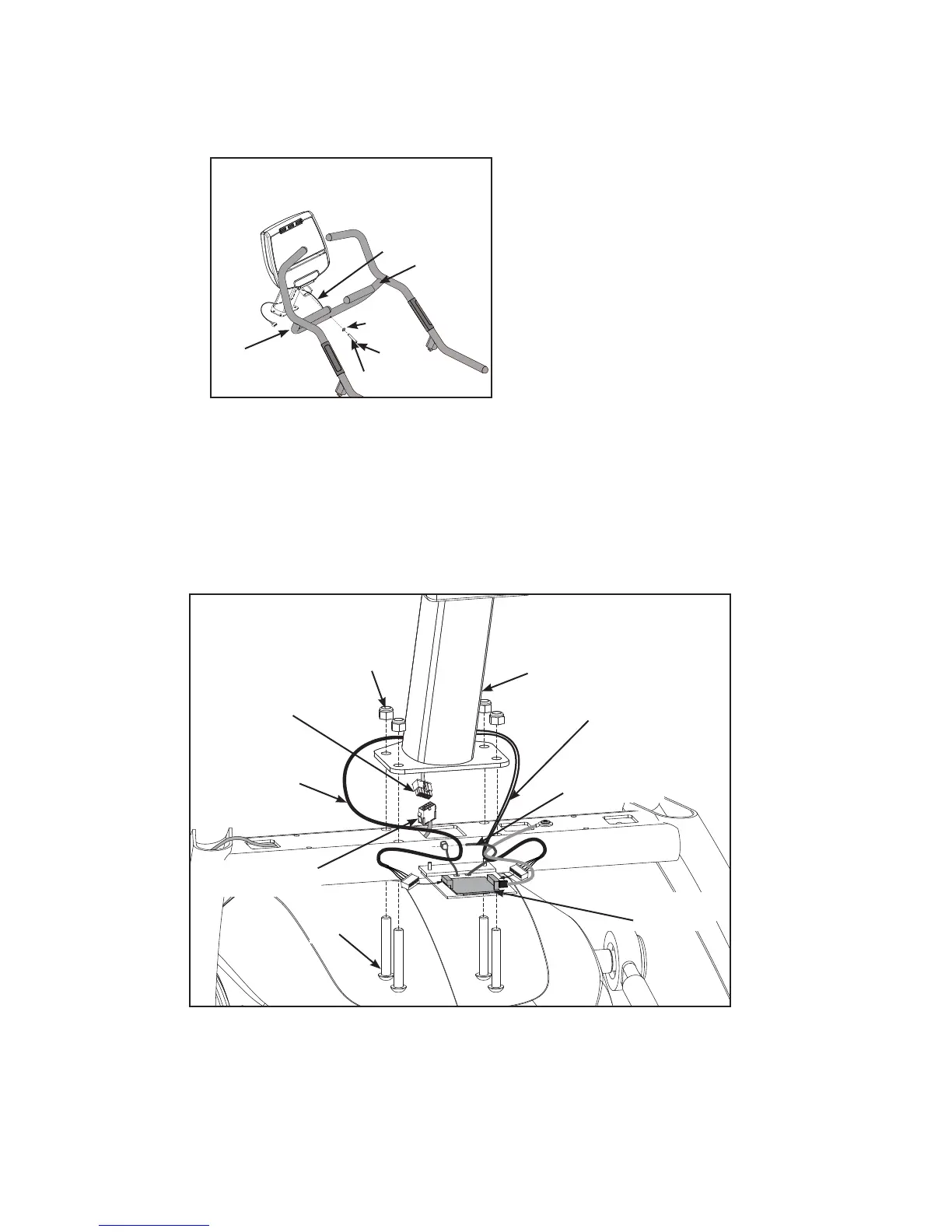

Locate the contact heart rate cable in the handrail assembly.2.
Thread upper contact heart rate cable through the console mount.3.
750A
#2a
#2b
#14a
#14b
Upper Contact
Heart Rate
Cable
#16 (Loctite)
Attach 4. the console assembly (#2a) to the handrail assembly (#2b); using a 7/32” Allen wrench,
secure with one saddle washer .390 ID x .750 OD x 6 (#14a) and one BHSCS .375-16 x 2.25 SS
(#14b). Refer to the above diagram.
Attach 750A cables
Locate the upper display cable, contact heart rate cable, and plug into the lower display cable.1.
Heart Rate
Display Cable
Upper Display
Cable
Lower Display
Cable
Cable Strap
Contact Heart
Rate Cable
Heart Rate
Board
#12
#13
#2a
750A
Plug the heart rate display cable (threaded through console mount in step 8C) into the heart rate 2.
board. Ensure cable connectors are securely fastened. Tighten cable strap. Refer to above the
diagram.
