Cybex Arc Trainer 750A/750AT Owner’s Manual
25
Attach main tray
Locate main tray (#4) and four 1. tap SC 10-12 x 2.00 Type A PN HD PHIL (#11).
Place the main tray (#4) in the correct position on the main frame assembly and hand thread the 2.
four Tap SC 10-12 x 2.00 Type A PN HD PHIL (#11).
#4
#5
#11
#14
Using a Phillips screwdriver, securely fasten the four 3. tapSC10-12x2.00TypeAPNHDPHIL(#11).
Attach tray insert
Locate tray insert (#5) and two 1. Pan HD Phil Hd Self Tapping, 8-16 x .50 Type WB (#14).
Place the insert tray in the correct position on the main frame assembly and hand thread the two 2.

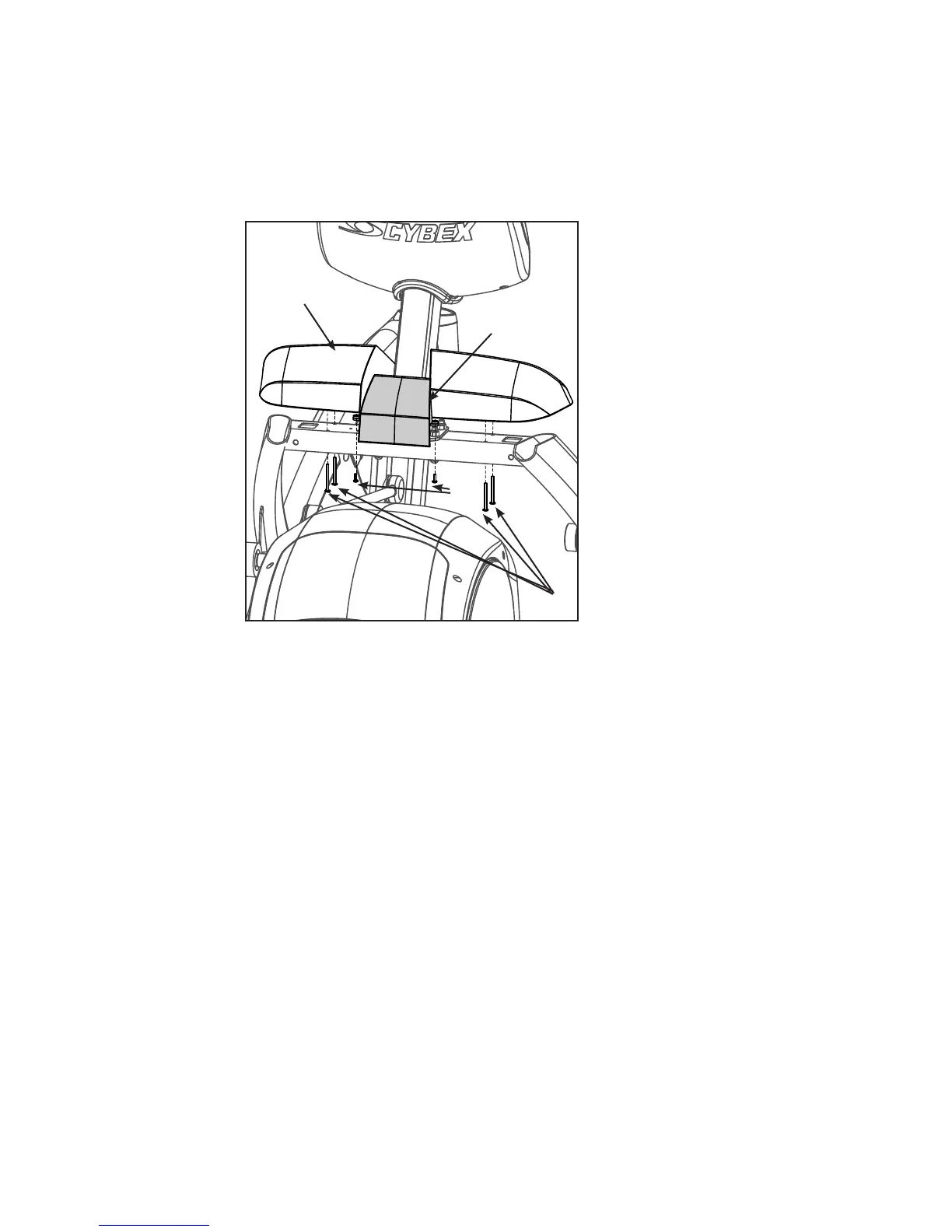

Pan HD Phil Hd Self Tapping, 8-16 x .50 Type WB (#14). Refer to the above diagarm.
Using a Phillips screwdriver, securely fasten the two 3. Pan HD Phil Hd Self Tapping, 8-16 x .50
Type WB (#14).
