Cybex Arc Trainer 750A/750AT Owner’s Manual
24
Hold the four BHSCS .375-16 x 2.25 (#13) with a 7/32” Allen wrench (#15) while tightening with a 5.
9/16” open end wrench to secure console.
Using a 7/32” Allen wrench, tighten the four BHSCS (#14d) to secure the handle assembly. Refer 6.
to the above diagram.
Pull rubber sleeves up to cover handle-to-frame connections.7.

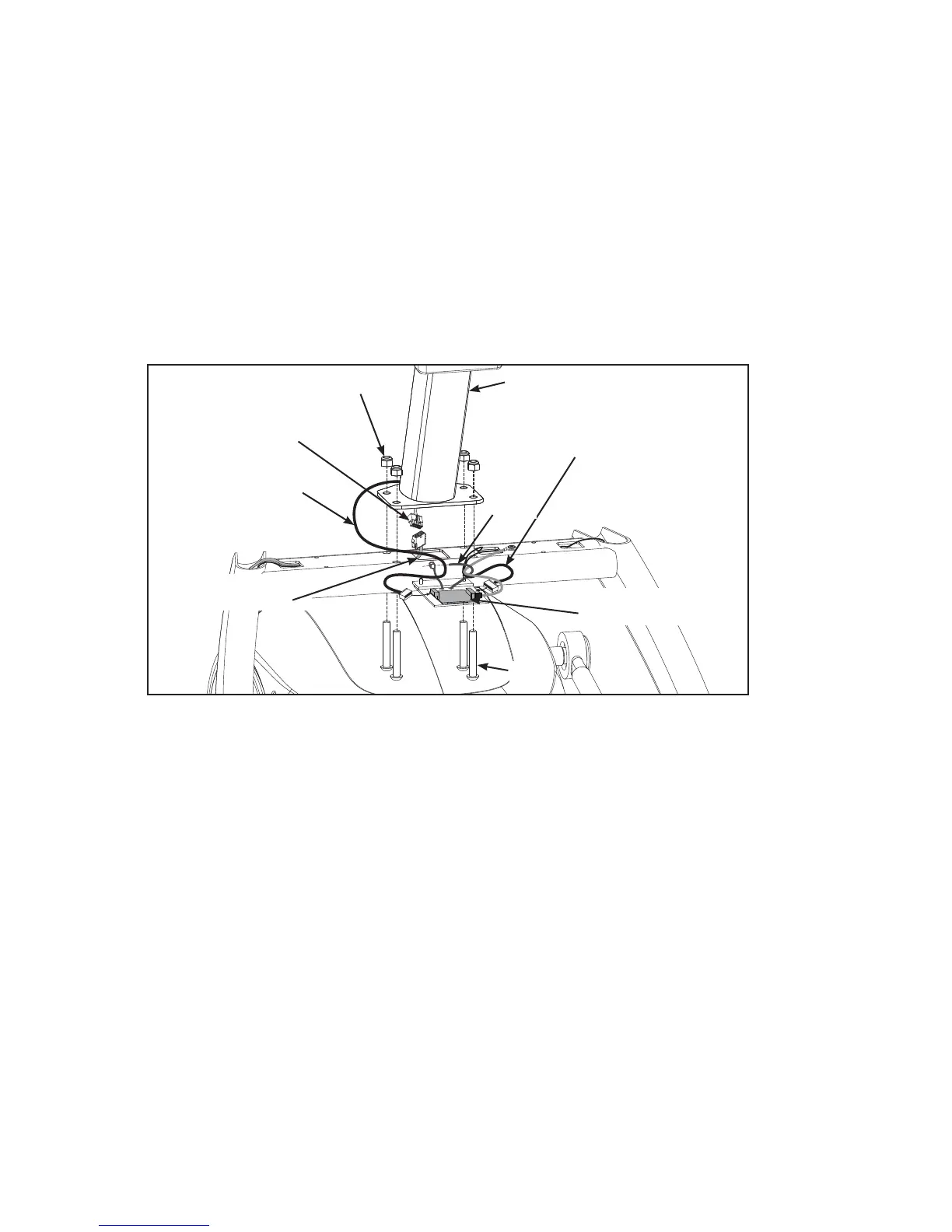

Attach 750AT console assembly.
Locate the console assembly (#2a), four .375-16 nylon locknuts (#12) and four 1. BHSCS
.375-16 x 2.25 (#13).
Heart Rate
Display Cable
Upper Display
Cable
Contact Heart
Rate Cable
Lower Display
Cable
#2a
#13
#12
Cable
Strap
Heart Rate
Board
750AT
Locate the upper display cable and plug into the lower display cable. Refer to the above diagram.2.
Locate the heart rate display cable and plug into heart rate board. Refer to the above diagram.3.
Locate the contact heart rate cable and plug into the heart rate board. Tighten cable strap. Refer 4.
to the above diagram.
Insert (from underneath) the four 5. BHSCS.375-16x2.25(#13). Hand thread the four .375-16 nylon
locknuts (#12) in position. Refer to the above diagram
Conrm that no cables are pinched while lowering the console.6.
Hold the four BHSCS .375-16 x 2.25 (#13) with a 7/32” Allen wrench (#15) while tightening with a 7.
9/16” open-end wrench to secure console. Refer to above diagram.
