Cybex Arc Trainer 750A/750AT Owner’s Manual
29

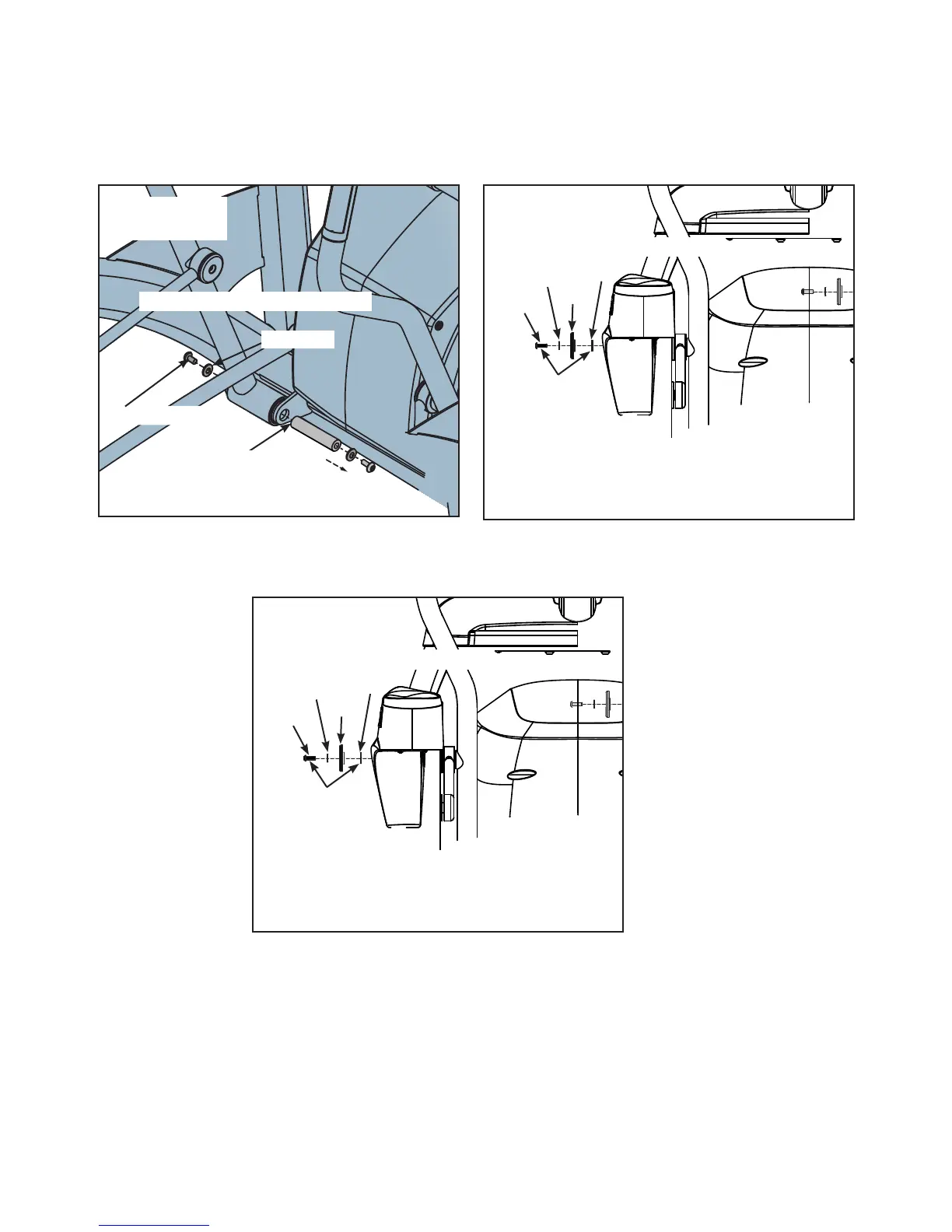

Install right handle assembly
Position the right handle assembly in the correct position on the right side where the left handle 1.
assembly was removed in step 7 of Removeleftandrighthandleassembly.
Screw/Loctite
Washer
Pivot Pin
#21
(Both Sides–Left Side Shown)
750AT
(Both Sides–Left Side Shown)
#20
#17
#18
#19
Loctite
(#16)
NOTE: The SHCS .250-20 UNC-3A SS (#19)
must be tightened to a minimum
of 90 in/lbs.
750AT
Apply loctite (#16)2. to threads inside the arm and screws removed in step two of Remove left and
righthandles.
(Both Sides–Left Side Shown)
#20
#17
#18
#19
Loctite
(#16)
NOTE: The SHCS .250-20 UNC-3A SS (#19)
must be tightened to a minimum
of 90 in/lbs.
750AT
