Cybex 445T Treadmill Owner’s Manual
Assembly
and Setup
Page 2-5
CAUTION: A minimum of two people are required to lift, move and assemble this treadmill.
Always use proper lifting methods when moving heavy items.
4. Lift and move the treadmill.
A. At least two people should lift and move the treadmill to a level location where you intend to
leave it. Use proper lifting methods.
5. Verify the model and voltage.
A. Verify that you have the correct model and voltage by looking at the serial number label located
at the rear of the unit..
6. Install the upright assembly.
A. Locate the upright assembly (#3) and six bolts, 3/8-16 x .625” (#15).
NOTE: Do not pinch or damage display
cable when installing upright
assembly.
B. Carefully place the upright assembly
(#3) on the base assembly (#1) as
shown. See Figure 3.
C. Plug the display cable, located at
the bottom of the upright assembly
(#3) into the base assembly (#1).
See Figure 3.
D. Carefully lift the upright assembly
(#3) into the proper location. See
Figure 4.
E. Using a 9/16” socket wrench,
secure the upright assembly (#3)
to the base assembly (#1) with six
bolts, 3/8-16 x .625” (#15). See
Figure 4.

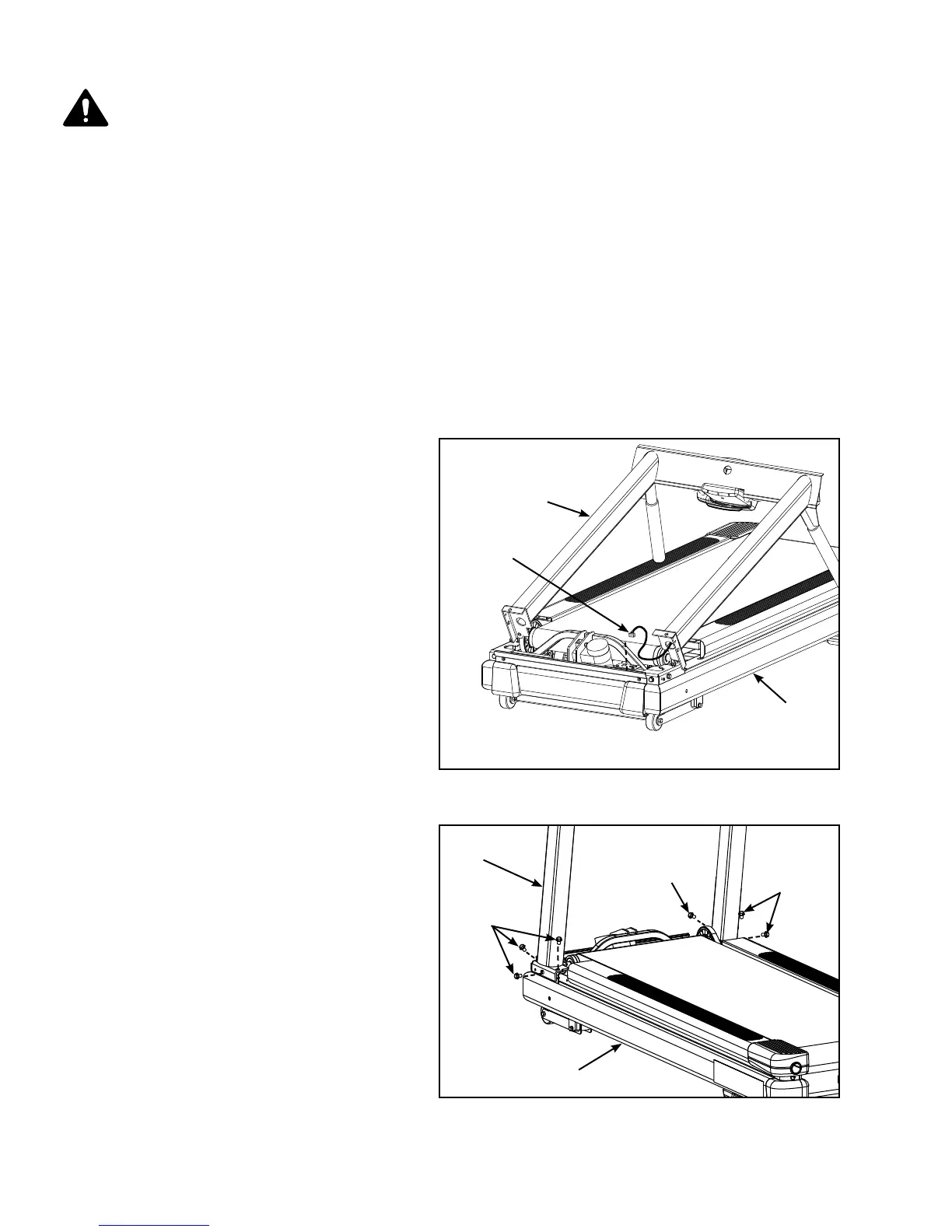

Figure 3
Figure 4
#3
Display
Cable
#1
#1
#3
#15
#15
#15
To Next Page
