Cybex 445T Treadmill Owner’s Manual

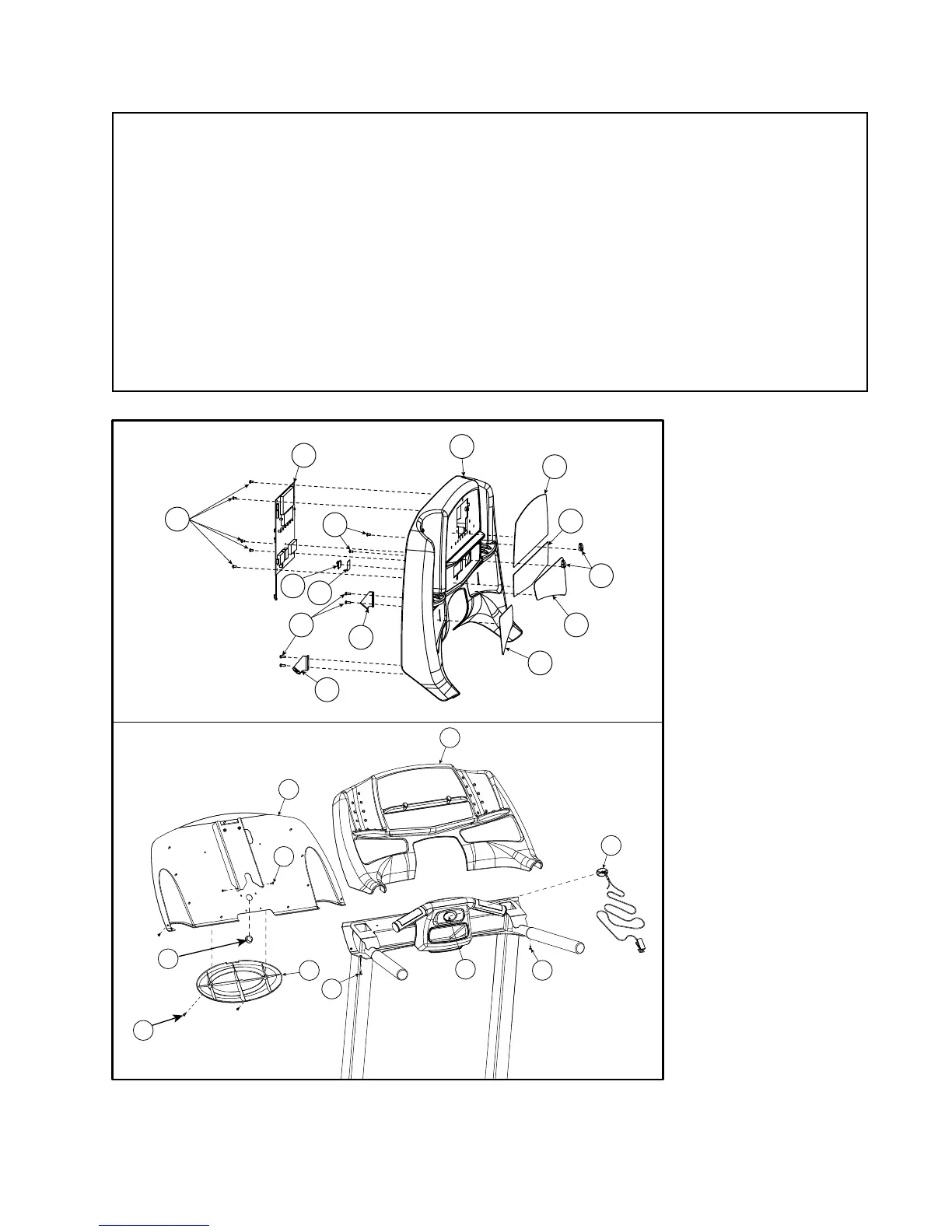

Exploded
Views
Page D-3
ITEM QTY. PART NO. DESCRIPTION
1 1 AF-18899 Weldment, Console Back Plate
9 1 AX-20944 Assembly, E-Stop Lanyard
31 10 HS-15706 Screw, 8-16 x .50, PNHD, STL,
BLK ZN CLR, TYP WB
64 1 PL-19061 Cover, Console, Back Trim, 425T
70 8 HS-11977 Screw, SEMS, 8/32 x .38, PNHD
104 1 DE-20685 Decal, E-stop, Yellow
211 1 HX-18287 Plug, Hole, Plastic, 1”, Black
300 1 KAC-20641-X* Assembly, 425T Console
304 1 AD-21468-Q PCA, Display, 425T
305 1 AF-19187 Bracket, Console Anchor, Right
306 1 AF-19188 Bracket, Console Anchor, Left
308 1 DE-18556-X* Decal, Warning, Right
ITEM QTY. PART NO. DESCRIPTION
309 1 DE-18557-X* Decal, Warning, Left
310 1 EC-19236 Sensor, Polar Wireless Remote Mount
312 7 HS-41187 Screw, SLFTP, 8-16 x .3125, Plastite
313 1 HX-17788 Tape, Double Sided, .032 Thick
314 2 PL-17686 Tab, Book Holder
315 1 PL-18548 Console, Plastic, 425T
316 1 SW-21456-X* Membrane, 445T, Top
316 1 SW-20701-4 Membrane, 445T, Top, IFI
317 1 SW-21457-X* Membrane, 445T, Bottom
317 1 SW-20700-4 Membrane, 445T, Bottom, IFI
317 1 SW-21458-4 Membrane, 445T, Bottom, With A/V,
English only
445T Console Assembly
312
305
31
312
313
310
316
317
314
309
308
315
306
304
31
9
70
104
64
1
70
300
70
211
* Language Key
1-German 2-French 3-Spanish 4-English 6-Japanese 7-Swedish 8-Russian A-Danish
