Cybex 445T Treadmill Owner’s Manual
Exploded
Views
Page D-4
ITEM QTY. PART NO. DESCRIPTION
38 4 HS-19108 Screw 5/16-18 x 3/4, HXHD, Whiz-Lock
70 8 HS-11977 Screw, SEMS, 8/32 x .38, PNHD
78 1 AF-18481 Weldment, Motor Base
80 2 HB-18768 Bearing, LF-1011-12
81 1 AD-19085-Q PCA, Control Board,115 VAC
81 1 AD-19086-Q PCA, Control Board, 230 VAC
82 1 SW-19667 Switch, Rocker, Thermal CB, 20 A
83 1 EC-18896 Filter, 16 Amp
83 1 EC-19869 Filter, 20 Amp
84 2 HN-11136 KEPS, 5/16 - 18, HEX STL ZINC
87 2 HN-11925 KEPS, 10-32, HEX STL ZN
88 1 HW-10856 Washer, Lock External, No. 10 ZC
90 2 EH-12260 Wire Tie, Nylon, 18
91 1 FS-19668 Plate, Circuit Breaker Mount
92 1 DE-20427 Label, Disconnect Power, Multilingual
93 1 DE-19238 Decal, Warning, Motor Plate
99 1 DE-19730-X* Decal, IR Comp Adjust
100 1 HX-17711 Plug, Plastec, 7/16”, Black
101 1 AF-19068 Bracket, Power Factor, Choke
103 1 AX-19649 Motor, Drive, 110 VAC
103 1 AX-19560 Motor, Drive, 220 VAC
121 1 EC-15004 Ferrite, Clamp-on, .40 I.D.
122 1 TR-19201 Choke
123 2 HX-19857 Strip, Motor Base, Isolation
124 1 EH-19717 Bushing, Strain Relief, .370”

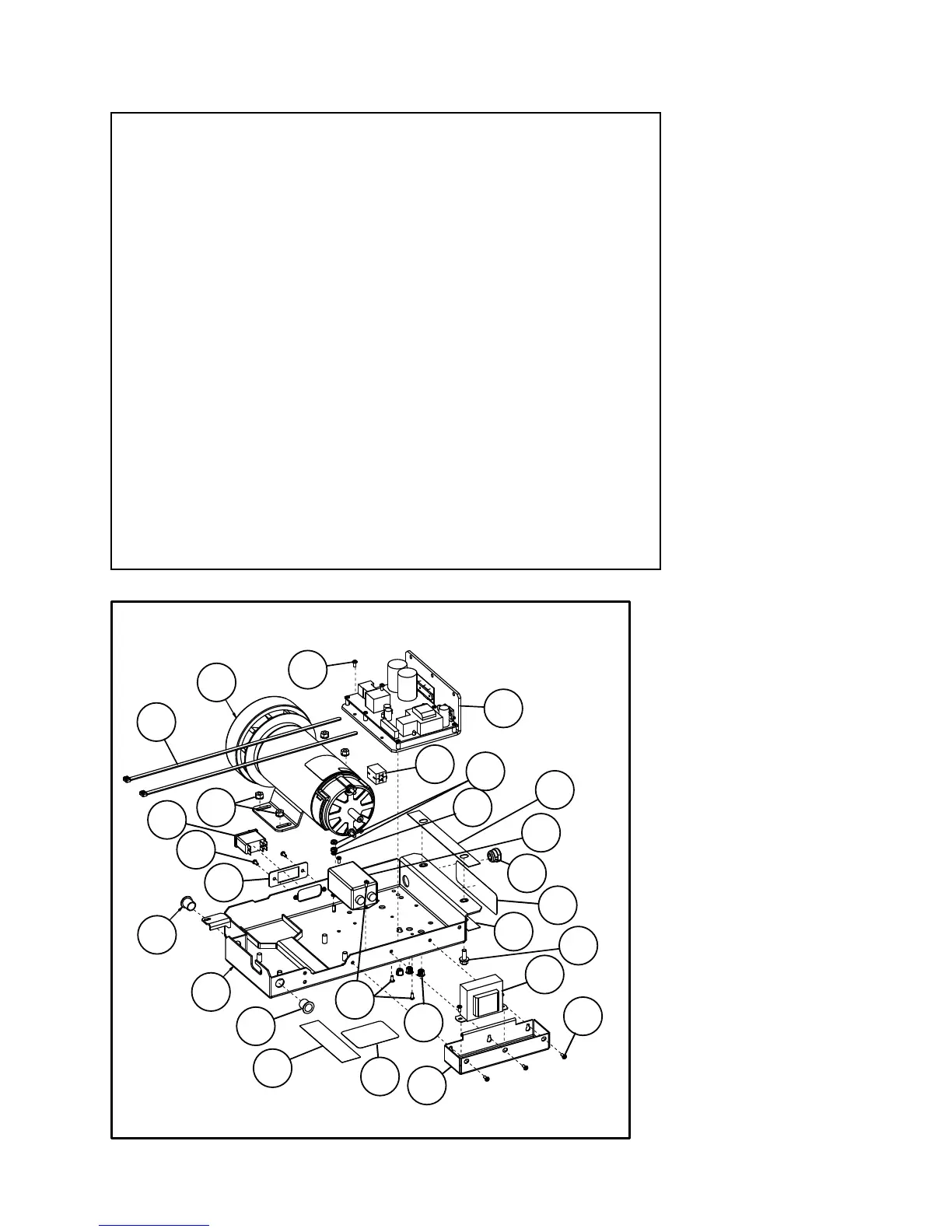

445T Drive Motor Assembly
103
90
70
91
78
88
100
87
122
70
101
84
82
70
80
80
70
92
99
123
93
38
124
83
123
121
81
* Language Key
1-German 2-French 3-Spanish 4-English 6-Japanese 7-Swedish 8-Russian A-Danish
