CYBEX CX-445T - Page 81

Cybex 445T Treadmill Owner’s Manual
Exploded
Views
Page D-5
ITEM QTY. PART NO. DESCRIPTION
7 1 AF-18394 Weldment, Elevation
21 1 FM-18405 Shaft, Elevation
24 1 FT-16825 Sleeve, Elevation Mounting, Top
25 1 FT-16826 Sleeve, Elevation Mounting, Bottom
28 2 HN-17935 Nut Locking, 3/8 - 24, GRD C, STL, ZN
36 1 HS-17936 Bolt, 3/8 - 24 x 2.0, HXHD CAP, G8, YEL ZN
37 1 HS-17937 Bolt, 3/8 - 24 x 2.75, HXHD CAP, G8, YEL ZN
38 4 HS-19108 Screw 5/16-18 x 3/4, HXHD, Whiz-Lock
53 1 HX-19384 Coupling, Shaft, DBL Split 5/8
74 2 CW-22240 Wheel, 3 Dia. x 1.25 W, Plain Bearing
75 4 HB-18768 Bearing, LF-1011-12
76 2 HS-60022 Bolt, 3/8 x 2.25, HXHD CAP, Black Zinc, G5
77 2 HN-60064 Nut, Jam 3/8 - 16, Black Zinc
79 2 HX-22247 Busing, Spanner,.500 OD X 1.5”L
102 1 MR-18402 Motor, Elevation, 115 VAC
102 1 MR-18403 Motor, Elevation, 230 VAC
25
28
102
28
77
74
76
79
38
7
53
21
38
75
24

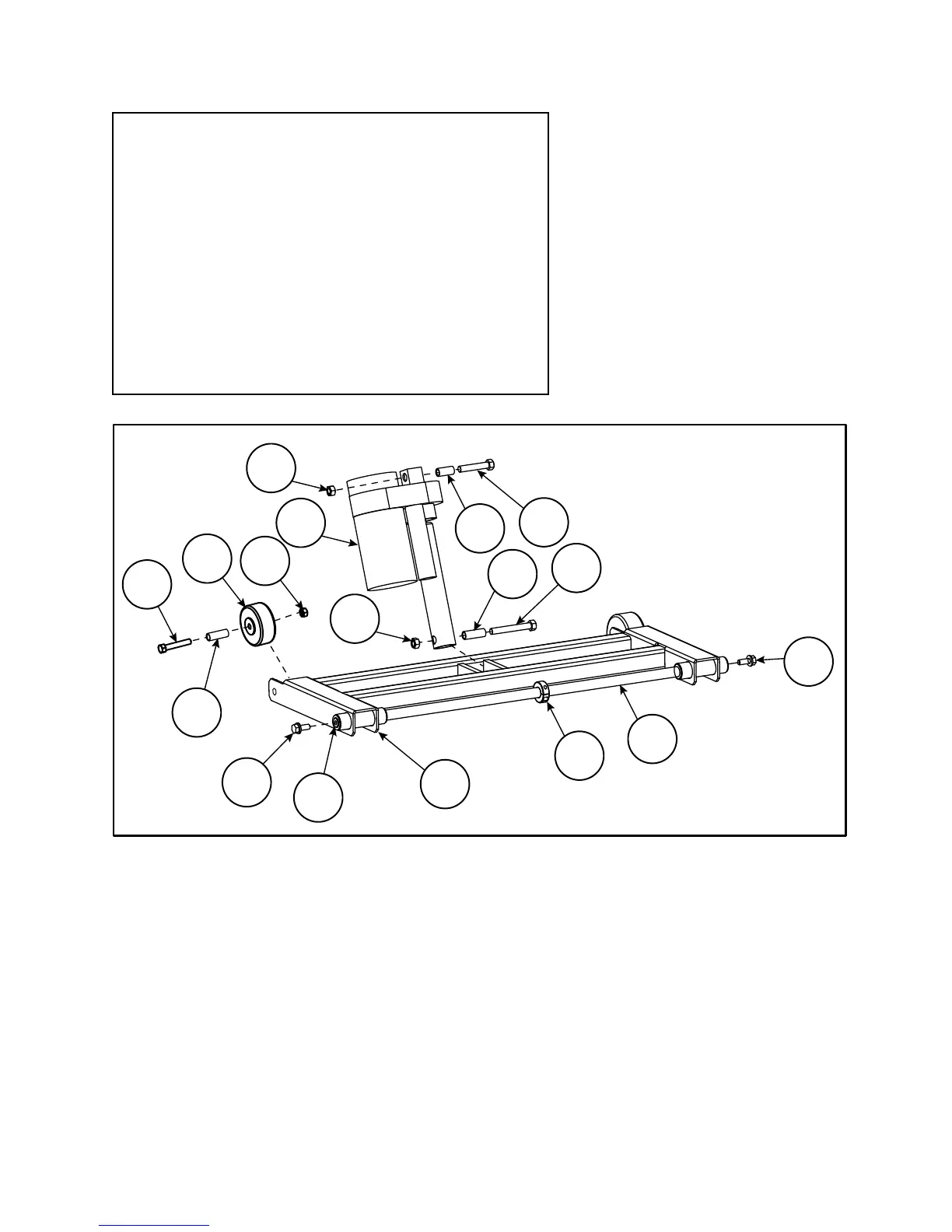

445T Elevation Assembly
37
36
