Cybex 445T Treadmill Owner’s Manual

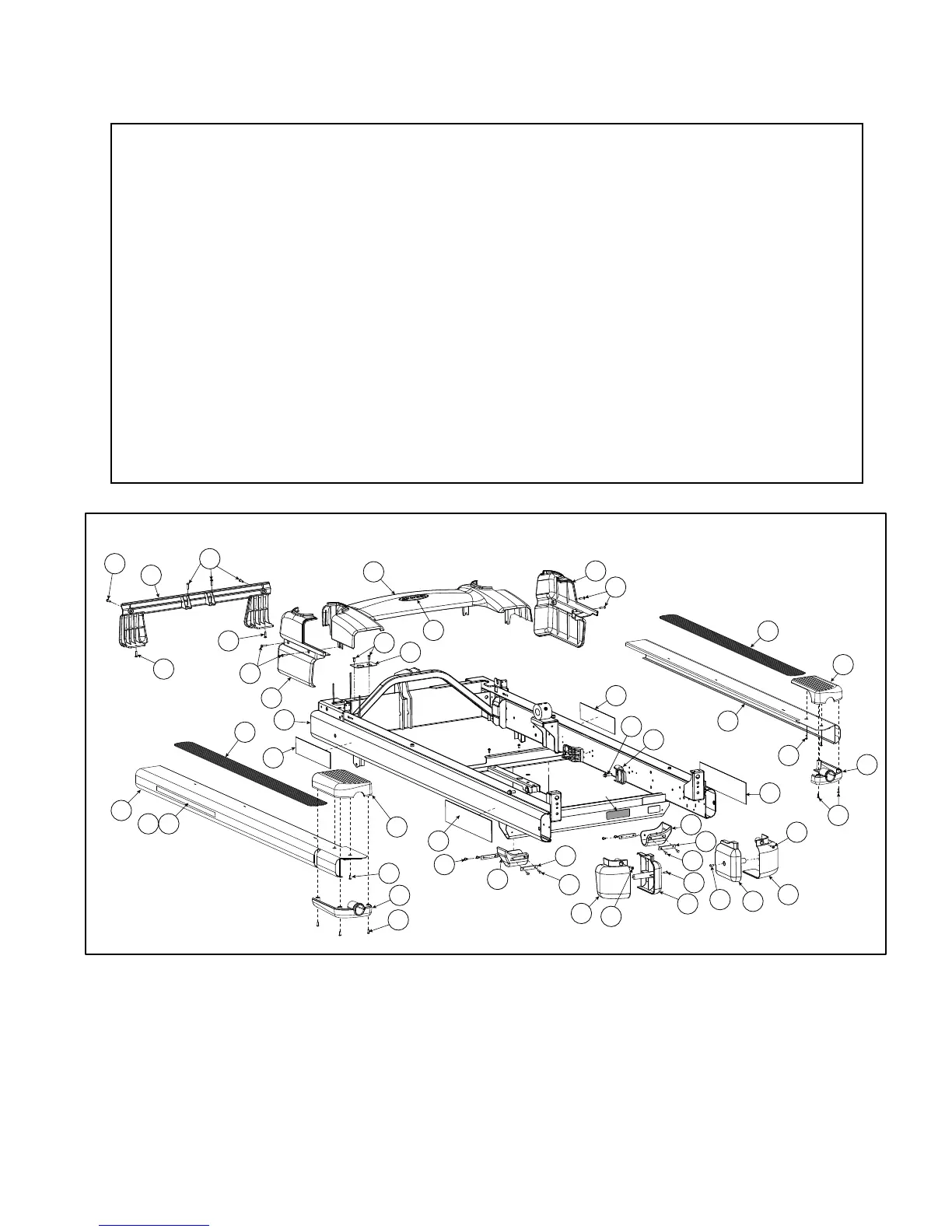

Exploded
Views
Page D-6
ITEM QTY. PART NO. DESCRIPTION
10 1 AX-19239 Assembly, Motor Cover
15 2 DE-19360 Decal, Side Labels, Black
15 2 DE-19353 Decal, Side Labels, Silver
22 4 FS-16511 Plate, Rear Rubber Foot Mounting
23 1 FS-19731 Plate, Cable Connector, 445T
31 4 HS-15706 Screw, 8-16 x .50, PNHD, STL,
BLK ZN CLR, TYP WB
32 10 HS-16509 Screw, SLFTP, 10 x .5, PNHD, PLT,
TYP B, PT-S
35 8 HS-16939 Screw, SEMS,10/32 x .75, PNHD,
BLK ZN, EXT
39 1 HS-41006 Screw, SLFTP, 10/24 x 1.38, PNHD
PHIL, SST, BLK, TT
52 2 HX-19102 Rubber Foot, Rear
57 1 PL-18929 Cover, Rear, Outer Right
58 1 PL-18930 Cover, Rear, Inner Right
59 1 PL-18932 Cover, Rear, Outer Left
60 1 PL-18933 Cover, Rear, Inner Left
61 1 PL-18990 Cover, Motor, Front, 425T
62 1 PL-18991 Cover, Motor, Right ,425T
63 1 PL-18992 Cover, Motor Left,425T
ITEM QTY. PART NO. DESCRIPTION
94 1 DE-19198 Decal, Cybex
200 1 SCK-18765 Assembly, Top Platform, Right
201 1 SCK-18764 Assembly, Top Platform, Left
203 1 AF-20559 Weldment, Frame, 445T
204 1 DE-18766 Decal, Safety Walk
204 1 DE-20718 Decal, Safety Walk, IFI
206 1 PL-18931 Cover, Rear, Top Left
207 1 PL-19120 Cover, Rear, Bottom Left
208 1 PL-18928 Cover, Rear, Top Right
209 1 PL-19118 Cover, Rear, Bottom Right
210 1 DE-19726 Decal, “CX | 445T”, Black
210 1 DE-19727 Decal, “CX | 445T”, Silver 877
223 2 DE-22327 LABEL,BLACK,INTELLIGENT
SUSPENSION 3
224 2 DE-22328 LABEL,SILVER,INTELLIGENT
SUSPENSION 3
225 2 PL-22129 Bracket,Power cord storage,
Plastic
226 2 HS-22137 Bolt, 1/4-14 x 1.25”,HXHD, Washer,
TYP AB,STL ZN
10
94
39
23
35
35
35
35
63
35
201
206
204
15
32
52
22
32
32
59
60
31
52
22
32
31
58
57
32
62
35
203
61
31
31
207
31
31
200
204
208
209
15
210
210
226
225
Serial
Number
445T Frame Assembly
224223
