A. Using a Phillips head screwdriver, remove the screw that holds each
end cap in place. See Figure 3.
4. Remove the side panels.
A. Pull each side panel out and off
the treadmill. See Figure 3.
5. Remove the top steps.
A. Using a Phillips head screwdriver,
remove the three screws that
hold each top step in place. See
Figure 4.
B. Grasp each top step and lift it out
and off the treadmill. See Figures
3 and 4.
6. Check the belt and deck condition.
A. Look at the edges of the belt while you roll it by hand. If the belt has any rips or looks
excessively worn the belt needs to be replaced.
B. Run your hand under the belt on the top of the deck surface. If you feel excessive
ridges or cracks, or if the deck feels grooved yet highly polished, the deck should be
replaced. In time, a worn belt and deck can cause high current draw and ultimately,
motor failure. For instructions on replacing the belt and deck, see Running Belt and
Deck in the Service chapter.
7. Clean under the belt.
A. To minimize the effect of friction between the deck and the running belt, Cybex
recommends cleaning the underside of the running belt and the top of the running deck
surface by wiping them with a clean, dry towel. This cleaning should be done each time
you check the belt and deck condition to prevent premature wear of the deck, running
belt and the drive motor system. See the Service Schedule in this chapter.
Cybex TROTTER Elite Treadmill Owner’s & Service Manual
End Caps
Side Panel
Screws

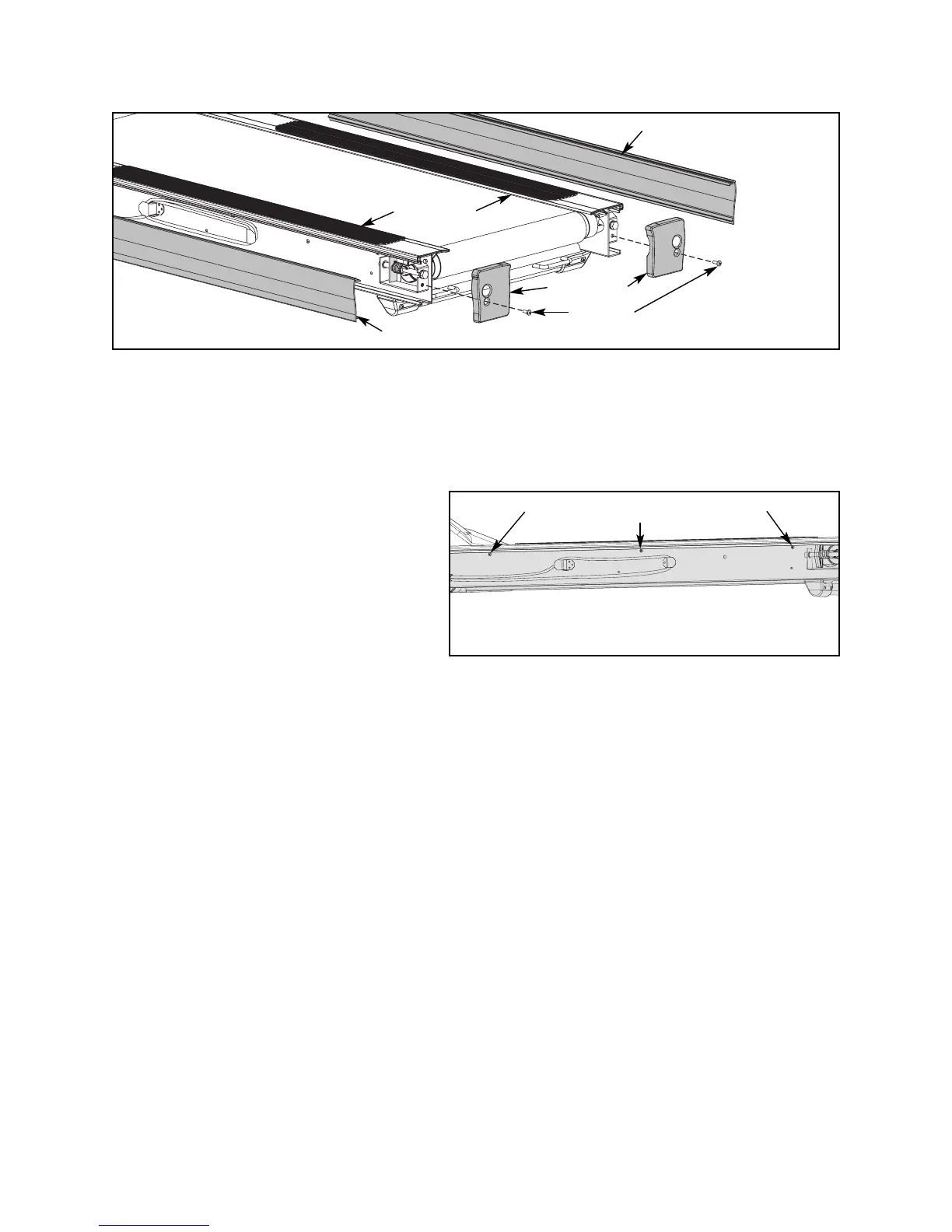

Figure 3
Side Panel
Figure 4
Screws (3 Under Each Top Step)
Top Steps
Preventive
Maintenance
Page 4-5
