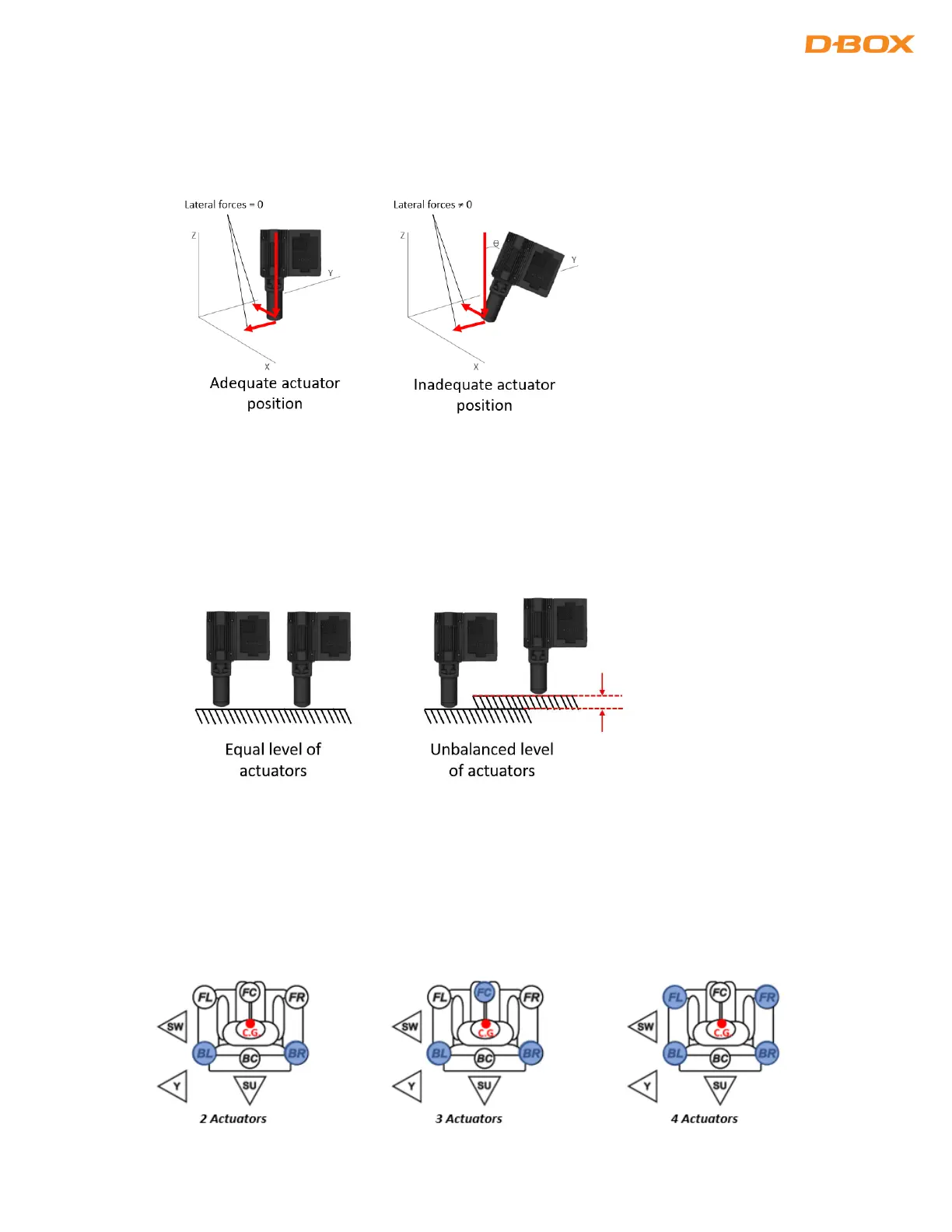

2.3 Haptic Actuator Straightness
During installation, the actuators should always remain straight to limit radial loading. Radial loading could result
in premature wear of the actuators.
2.4 Level Surface
All actuators must be level on the same flat surface for optimal operations. Different levels could result in
premature wear of the actuators.
2.5 Weight Distribution
Each actuator has a 250-lb maximal payload. When integrating the Haptic System on a platform, D-BOX
recommends balancing the center of gravity (CG) of the platform to ensure each haptic actuator supports an
equal load. The following figures show equal distribution of weight with 2, 3 or 4 actuators.
