DAP-1150 Wireless Access Point Supporting Router Mode
User Manual
Overview
Product Appearance
Front Panel

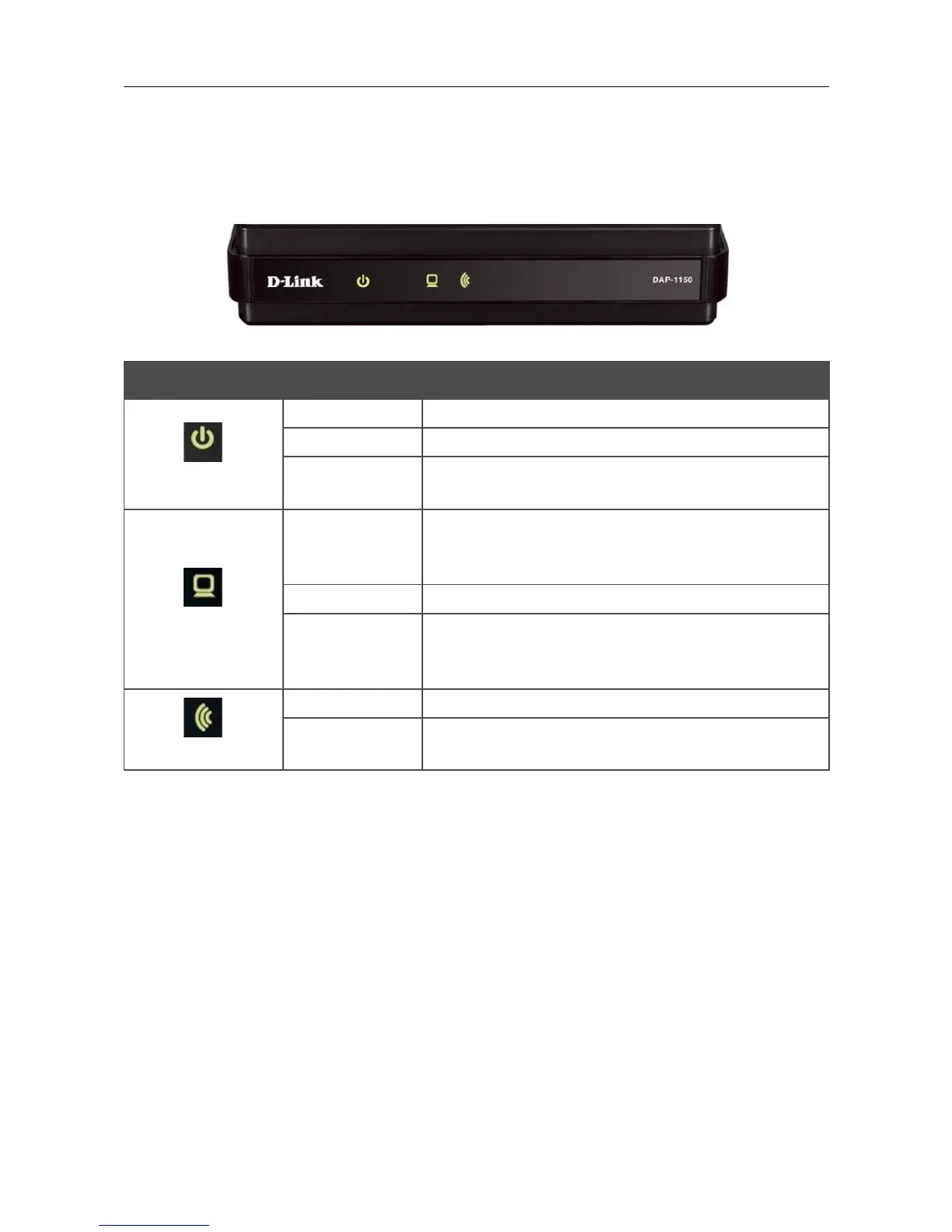

Figure 1. Front panel view.
LED Mode Description
Power
Solid green
The device is powered on.
No light
The device is powered off.
Solid yellow
When powered on: the device is being loaded; when
loaded: a malfunction of the device.
LAN/WAN
Solid green
Access point mode: the device has an IP address and is
available for configuration.
Router mode: a WAN connection is established.
Blinking green
The port is active (upstream or downstream traffic).
Solid yellow
When powered on: the device is being loaded; when
loaded in the router mode: no WAN connection is
established.
WLAN
Solid green
The device's WLAN is on.
Blinking green
The WLAN interface is active (upstream or
downstream traffic).
