D-Link DAP-1720 - Hardware Setup

13D-Link DAP-1720 User Manual
Section 2 - Installation

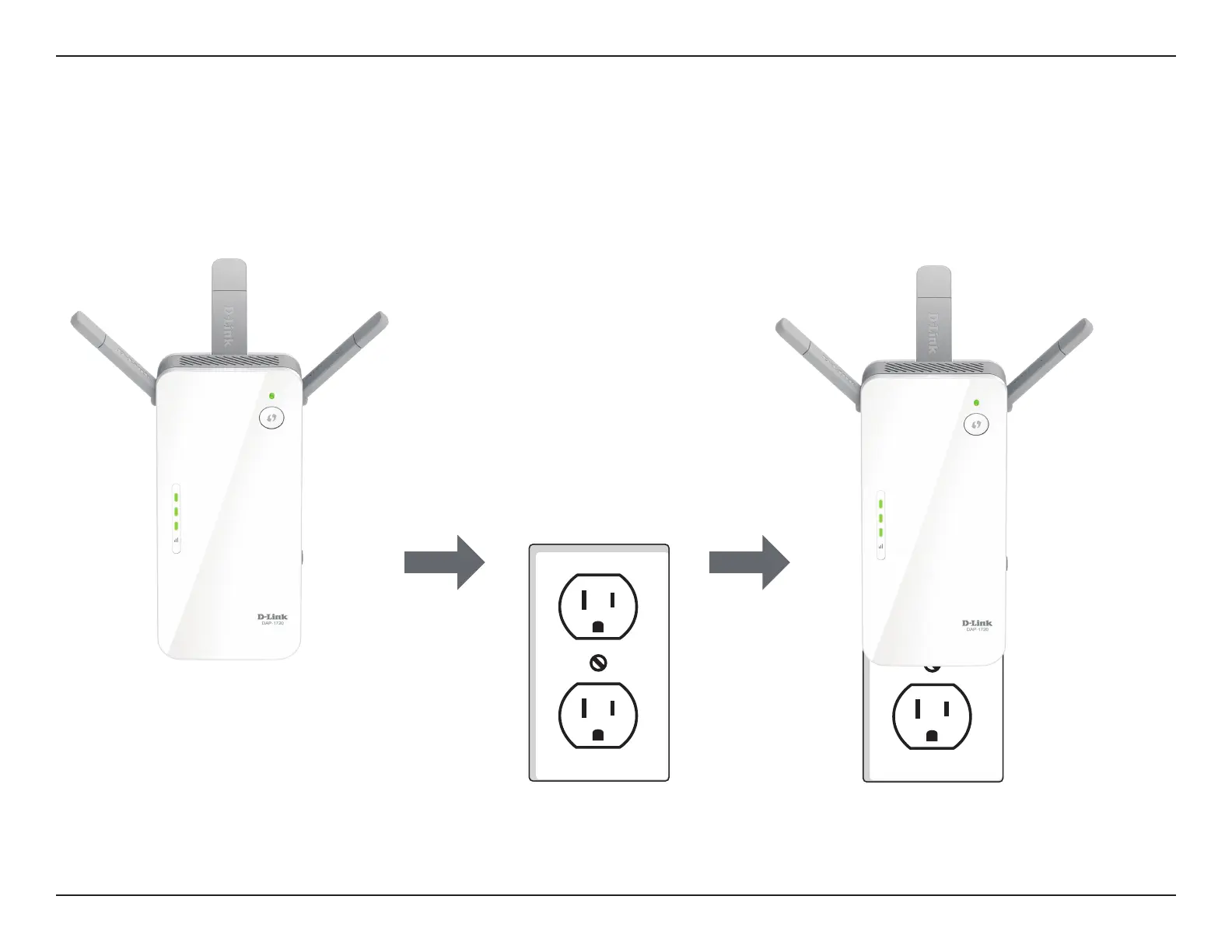

Ensure the power switch on the bottom of the DAP-1720 is in the ON position, plug the DAP-1720 into a wall outlet, and wait until
the Status/WPS LED is blinking amber.
Outlet
Ethernet
Outlet
Ethernet
Hardware Installation
