29D-Link DAP-1720 User Manual
Section 3 - Conguration
Home
Conguration

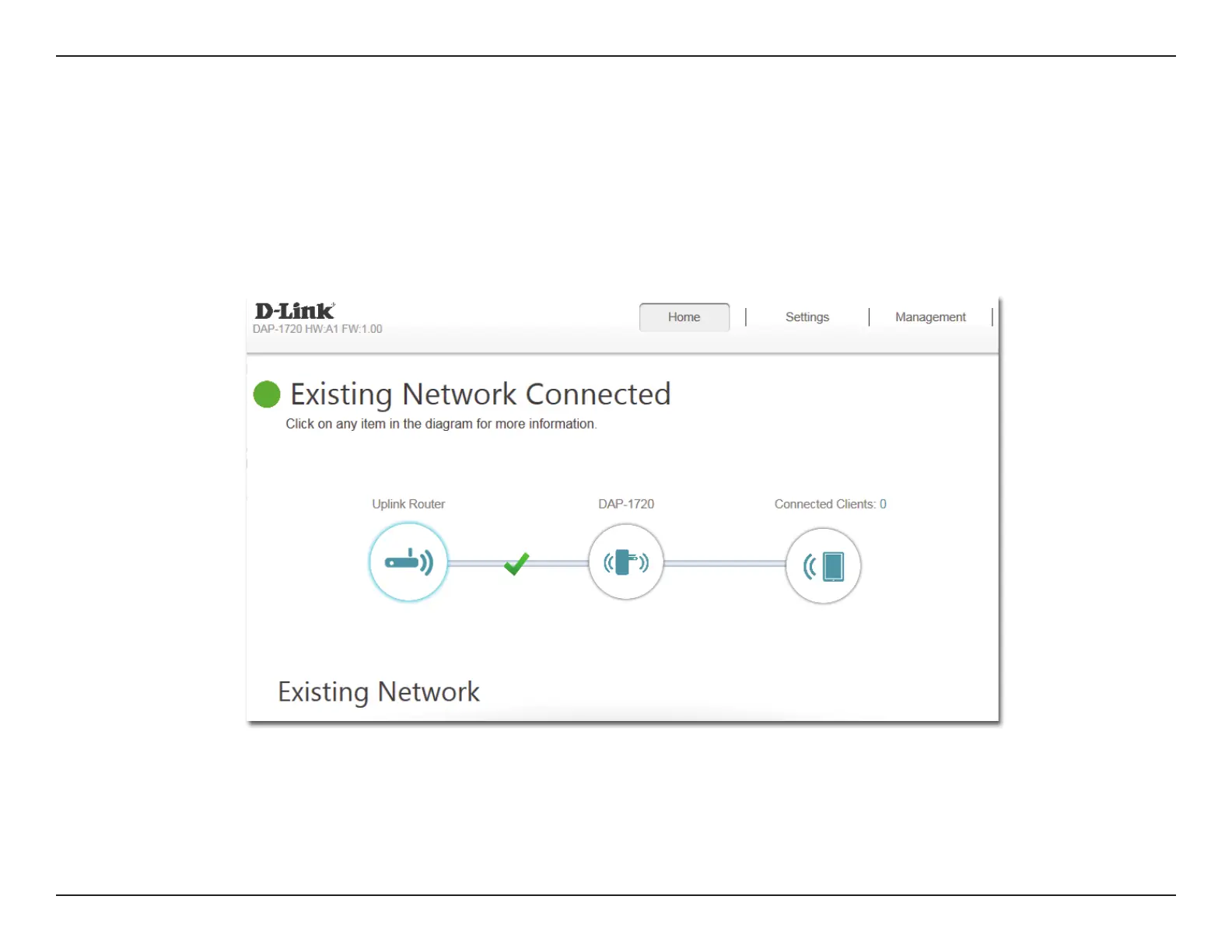

The home screen gives a summary of the current status of devices connected to the DAP-1720. A green check between the device
and the uplink router indicates that they are connected. A red ‘x’ indicates that there is a connection error. In that case the Click to
repair button will appear, which will start the setup wizard.
This icon shows the status of the connection to the uplink router. It is grey if the DAP-1720 is not connected to an uplink router.
Once connected, click on it to see its connection details.
Click on this icon to see details of the uplink network the DAP-1720 is connected to. or connect to another uplink router.
Click on this icon to see client details.
Uplink Router:
DAP-1720:
Connected
Clients:
