16D-Link DAP-1720 User Manual
Section 2 - Installation
The Status/WPS LED will turn solid green when the DAP-1720 has connected successfully to a wireless network and is extending

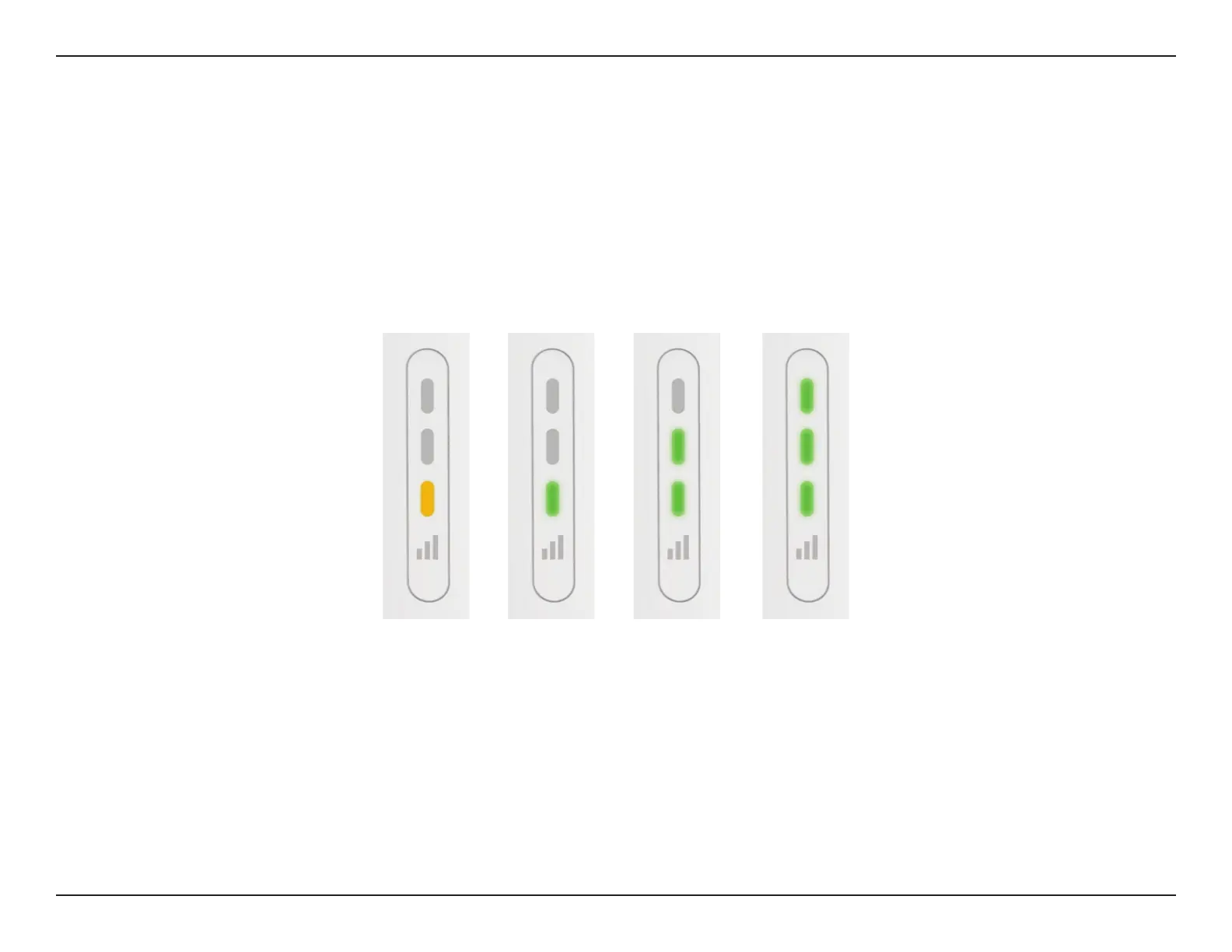

that network. If the Smart Signal LED has a single amber bar after the connection process has nished, the DAP-1720 has
established a poor quality connection. The more lit bars on the Signal Indicator LED, the better the wireless signal. To improve the
connection quality, the DAP-1720 should be relocated closer to the source wireless router. If the extender has been congured as an
Access Point and is connected via Ethernet cable to an uplink network, the Smart Signal LED will not be lit.
Poor Ok Good Best
Optimize Extender Location
