D-Link DAP-1720

34D-Link DAP-1720 User Manual
Section 3 - Conguration

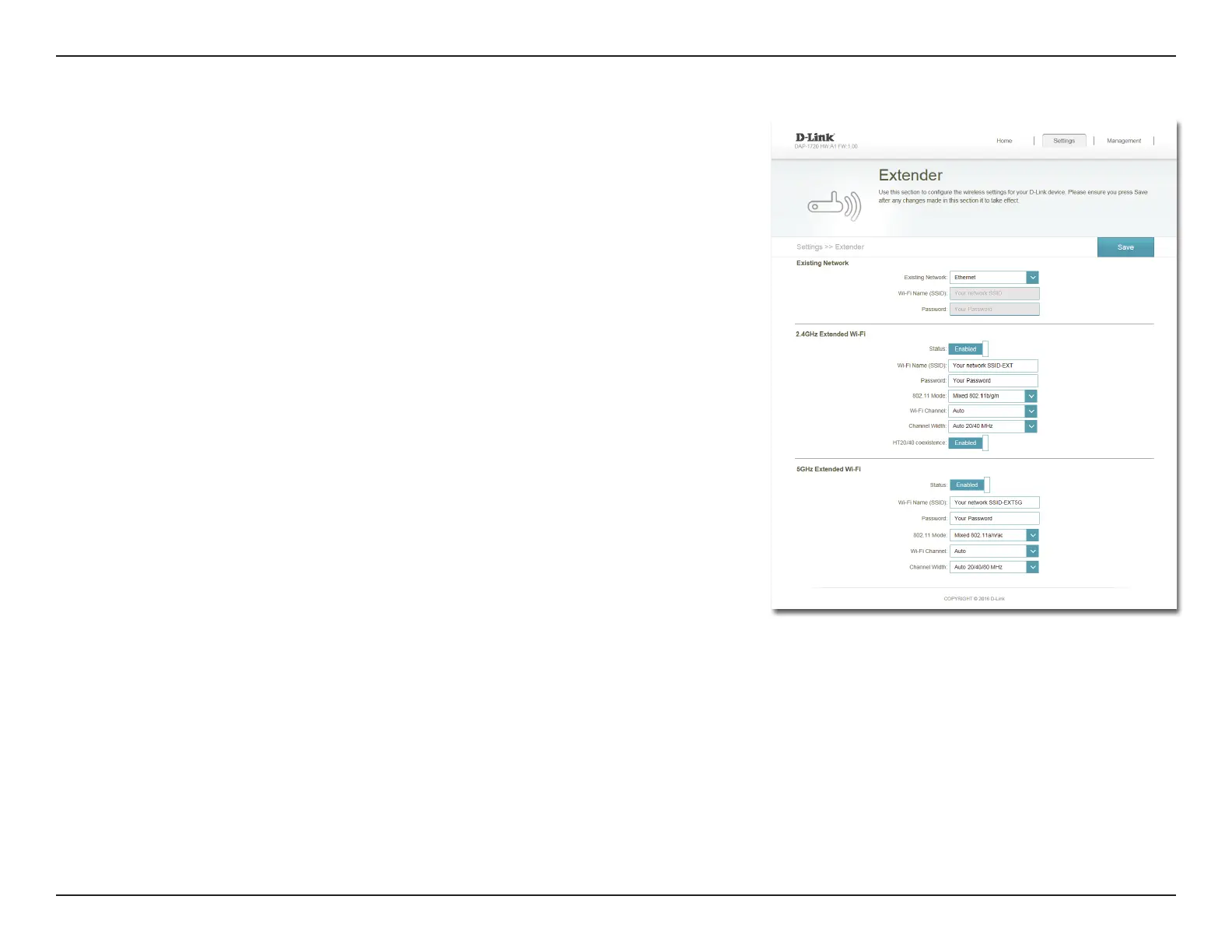

Enable or disable this network by toggling this slider.
This is the name of the DAP-1720’s 2.4 GHz extended network. If using Wi-Fi,
the DAP-1720 will rebroadcast the uplink router’s network under this SSID.
You may also manually set the SSID of the extended network.
Enter the password or network key that you wish to use for the extended
network.
Status:
Wi-Fi Name
(SSID):
Password:
2.4 GHz Extended Wi-Fi
Note: If you have selected Ethernet as the existing network, you can congure the following
additional settings. For pre-existing Wi-Fi networks, these settings are automatically
congured for optimal performance with you existing network.
Select Auto or manually specify a channel for use with this network.
Select Auto 20/40 or 20 MHz for the bandwidth you wish this network to use.
Enable or disable HT20/40 coexistence by toggling the slider.
Wi-Fi
Channel:
Channel
Width:
HT20/40
Coexistence:
