4 Configuration DES-1210 Series Switch Web UI Reference Guide
ACL > ACL Wizard
Access Control List (ACL) allows you to establish criteria to determine whether or not the Switch will forward
packets based on the information contained in each packet's header. This criteria can be specified on a
basis of the MAC address, or IP address.
The ACL Configuration Wizard will aid with the creation of access profiles and ACL Rules. The ACL Wizard
will create the access rule and profile automatically. The maximum usable profiles are 50 and with 200 Rules
in total for the switch.
To create a new access rule, select Create and enter the Access-List Name then click Next button.

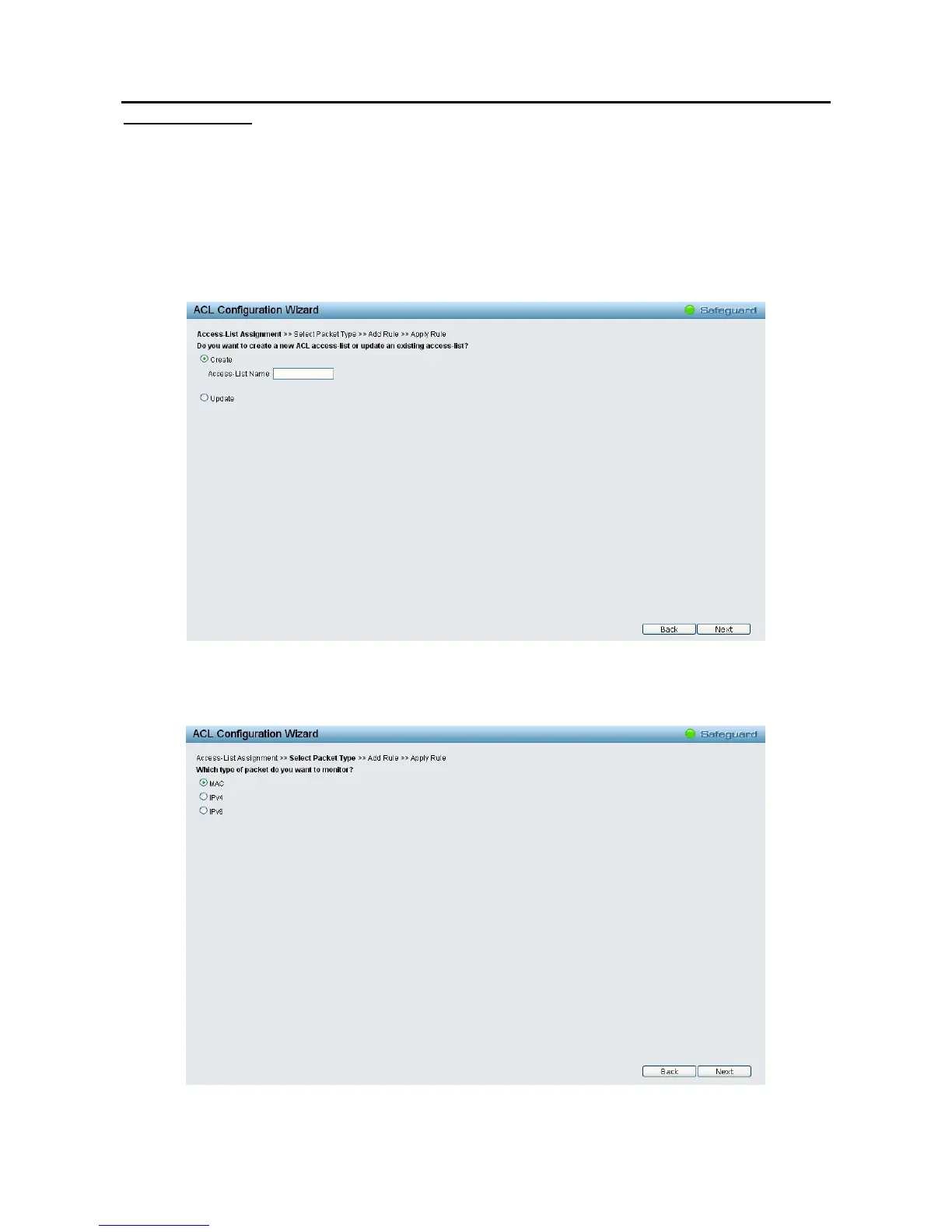

Figure 4.96 - ACL > ACL Wizard – Create Access-List
The steps of adding an access profile are described below:
1) Select the Packet Type: MAC, IPv4 or IPv6.
Figure 4.97 - ACL > ACL Wizard – Select Packet Type
66
