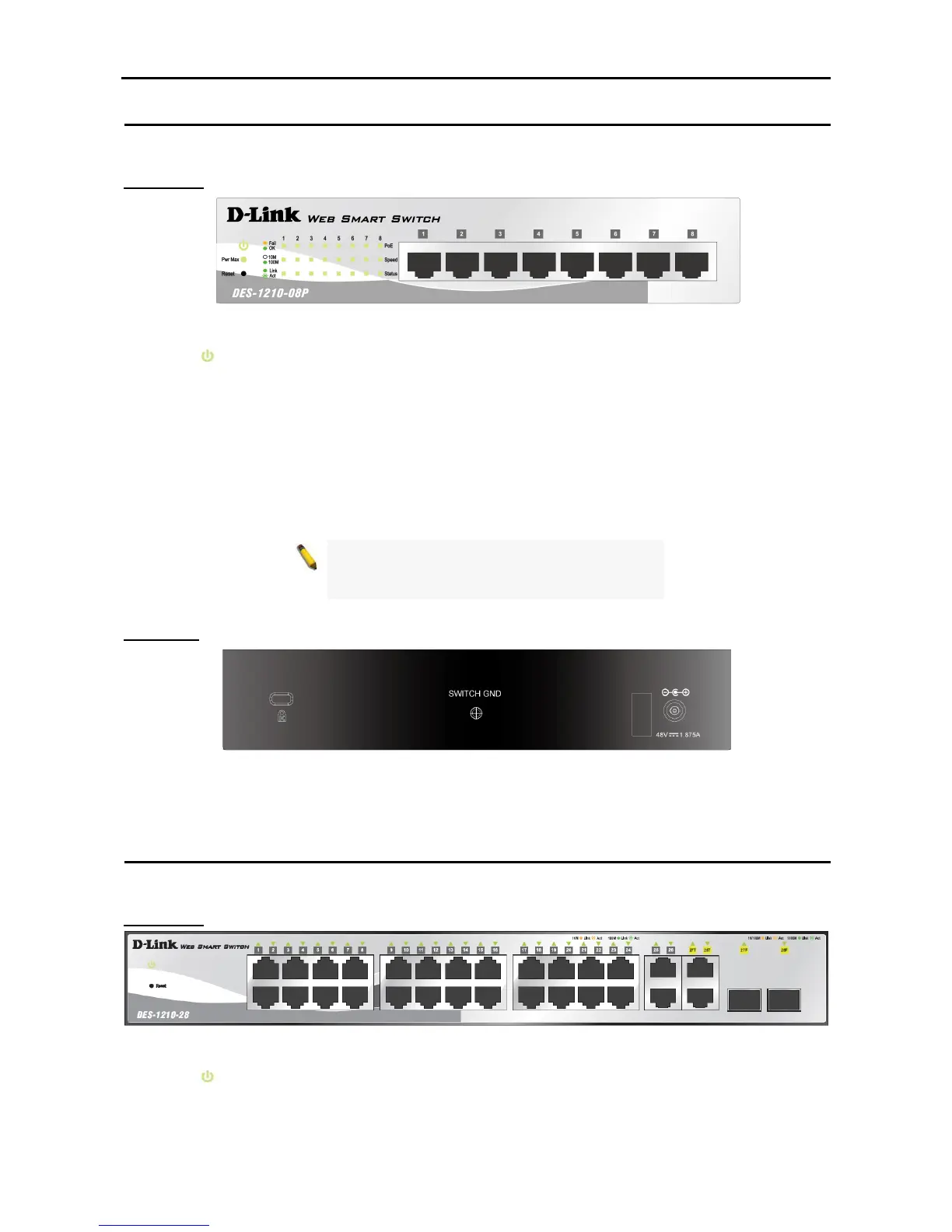

1 Product Introduction DES-1210 Series Switch Web UI Reference Guide
DES-1210-08P
8-Port 10/100Mbps ports Web Smart PoE Switch.
Front Panel
Figure 1.1 – DES-1210-08P Front Panel
Power LED
: The Power LED lights up when the Switch is connected to a power source.
Pwr Max: The Pwr Max LED lights up when the Switch reaches the maximum power budget defined by the
administrator via PoE System Settings page of Web GUI or the default power budget of 72 Watts.
Reset: By pressing the Reset button the Switch will change back to the default configuration and all changes
will be lost.
Mode: By pressing the Mode button, the Port LED will switch between Link/Act and PoE modes.Port
Link/Act/Speed LED (1-8): The Link/Act/Speed LED flashes which indicates a network link through the
corresponding port. Blinking indicates that the Switch is either sending or receiving data to the port. When a
port has amber light indicates that port is running on 10M. When it has a green light it is running on 100M.
NOTE: The installation instructions clearly state
that the ITE is to be connected onl
networks without routing toe the outside plant.
Rear Panel
Figure 1.2 – DES-1210-08P Rear Panel
Power: The power port is where to connect the AC power cord.
DES-1210-28
24-Port 10/100Mbps with 2 10/100/1000 BASE-T and 2 Combo 1000 BASE-T/SFP Web Smart Switch.
Front Panel
Figure 1.1 – DES-1210-28 Front Panel
Power LED
: The Power LED lights up when the Switch is connected to a power source.
Reset: By pressing the Reset button the Switch will change back to the default configuration and all changes
will be lost.
