1 Product Introduction DES-1210 Series Switch Web UI Reference Guide

Port Link/Act/Speed LED (1-24): The Link/Act/Speed LED flashes which indicates a network link through

the corresponding port. Blinking indicates that the Switch is either sending or receiving data to the port.

When a port has amber light indicates that port is running on 10M. When it has a green light it is running on

100M.

Port Link/Act/Speed LED (25, 26, 27T, 28T, 27F, 28F): The Link/Act/Speed LED flashes which indicates a

network link through the corresponding port. Blinking indicates that the Switch is either sending or receiving

data to the port. When a port has amber light indicates that port is running on 10M or 100M. When it has a

green light it is running on 1000M.

NOTE: On DES-1210-28, the MiniGBIC ports are

shared with normal RJ-45 ports 27 and 28. When

MiniGBIC port is used, the RJ-45 port cannot be

used.

CAUTION: The MiniGBIC ports should use UL

listed Optical Transceiver product, Rated Laser

Class I. 3.3Vdc.

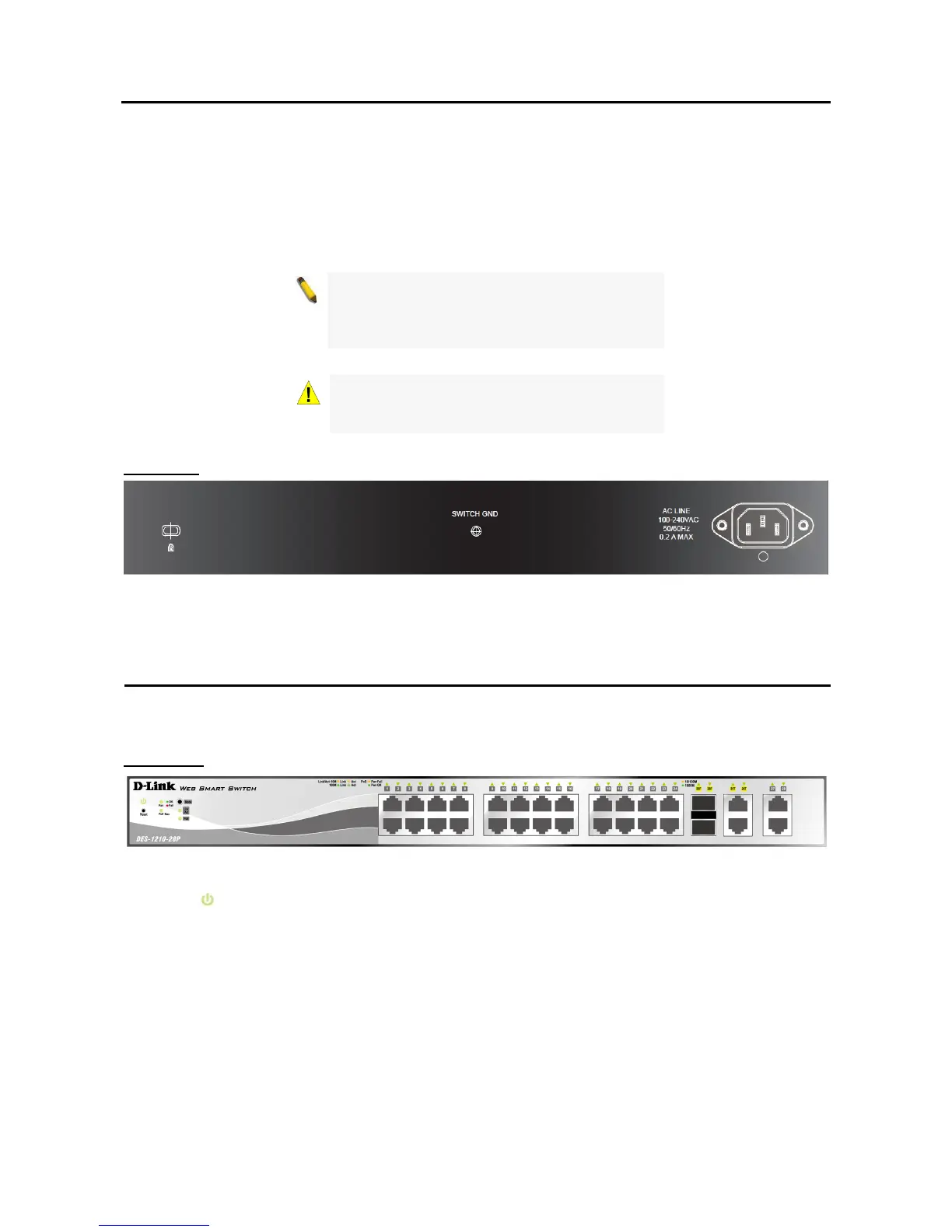

Rear Panel

Figure 1.2 – DES-1210-28 Rear Panel

Power: The power port is where to connect the AC power cord.

DES-1210-28P

24-Port 10/100Mbps PoE ports plus 2 1000Base-T ports and 2 combo SFP/1000Base-T ports Web Smart

Switch.

Front Panel

Figure 1.1 – DES-1210-28P Front Panel

Power LED

: The Power LED lights up when the Switch is connected to a power source.

Pwr Max: The Pwr Max LED lights up when the Switch reaches the maximum power budget defined by the

administrator via PoE System Settings page of Web GUI or the default power budget of 193 Watts.

Reset: By pressing the Reset button the Switch will change back to the default configuration and all changes

will be lost.

Mode: By pressing the Mode button, the Port LED will switch between Link/Act and PoE modes.
