1 Product Introduction DGS-1210 series Metro Ethernet Managed Switch User Manual
3
3
The front panel of the DGS-1210-10P/ME switch consists out of the following:
• 8 10/100/1000Mbps Copper Ports
• 2 1000Mbps SFP ports
• One RJ-45 Console Port
• LEDs for Power, PoE Max, Console, Link/Act for port 1 ~ 10
• Mode: By pressing the Mode button, the Port LED will switch between Link/Act and PoE modes.

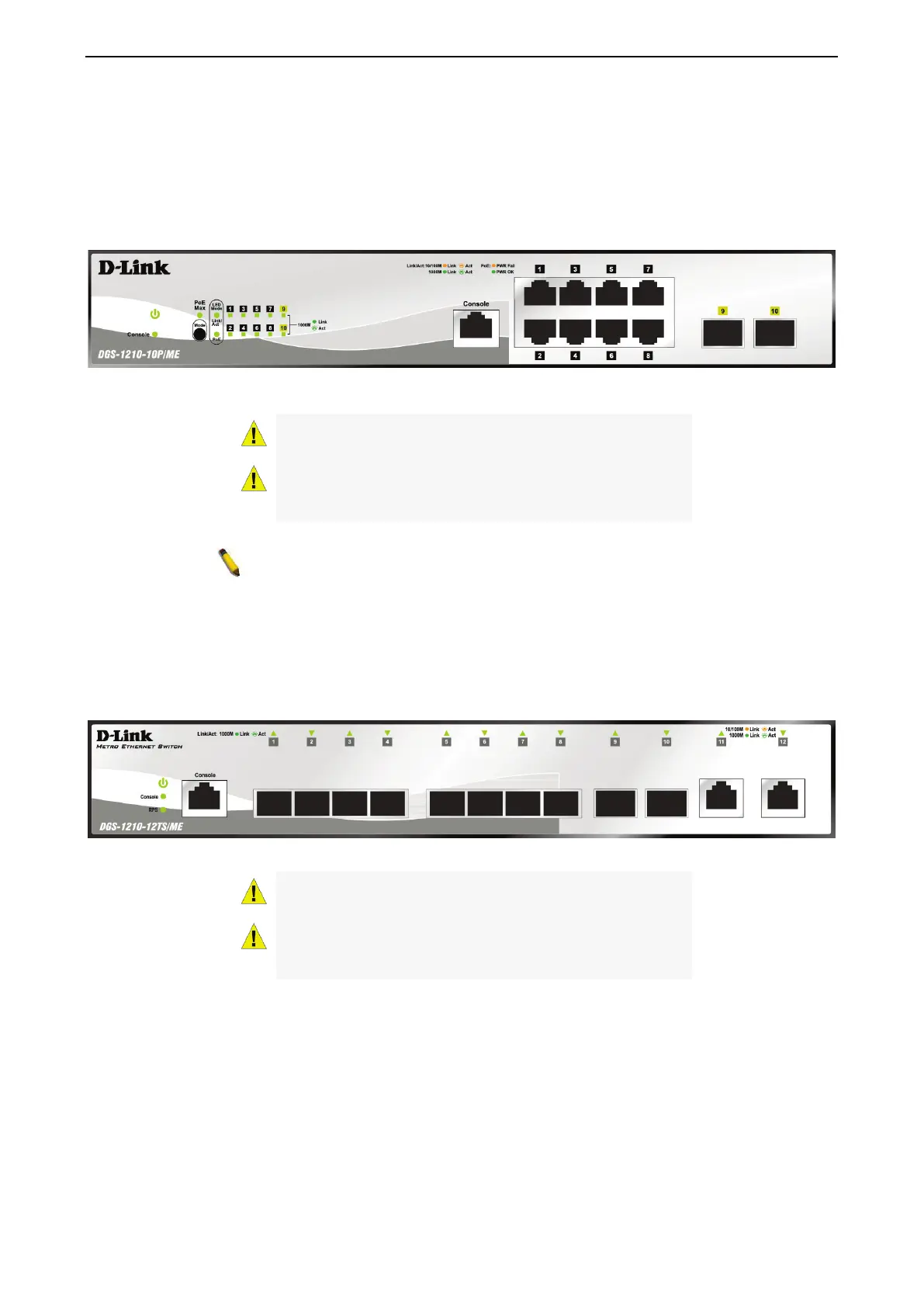

Figure 1.2 – DGS-1210-10P/ME Front Panel
CAUTION: The MiniGBIC ports should use UL listed
Optical Transceiver product, Rated Laser Class I. 3.3Vdc.
PRÉCAUTION:
Les ports Mini GBIC doivent utiliser la
liste UL. Produit émetteur-récepteur optique, classe laser
I. 3.3Vdc.
NOTE: The power budget is 78 Watts for DGS-1210-10P/ME.
The front panel of the DGS-1210-12TS/ME switch consists out of the following:
• 10 1000Mbps SFP port
• 2 10/100/1000Mbps Copper Ports
• One RJ-45 Console Port
• LEDs for Power, Console, RPS, Link/Act for port 1 ~ 12
Figure 1.3 – DGS-1210-12TS/ME Front Panel
CAUTION: The MiniGBIC ports should use UL listed
Optical Transceiver product, Rated Laser Class I. 3.3Vdc.
PRÉCAUTION:
Les ports Mini GBIC doivent utiliser la
liste UL. Produit émetteur-récepteur optique, classe laser
I. 3.3Vdc.
The front panel of the DGS-1210-20/ME switch consists out of the following:
• 16 10/100/1000Mbps Copper Ports
• 4 1000Mbps SFP ports
• One RJ-45 Console Port
• LEDs for Power, Console, RPS, Link/Act for port 1 ~ 20

D-Link DGS-1210 Series Specifications

General

Model	DGS-1210 Series
Uplink Ports	2/4 (varies by model)
VLAN Support	Yes
QoS	Yes
Management	Web-based
Dimensions	Varies depending on the model
Weight	Varies depending on the model
Operating Temperature	0°C to 45 °C
Power Consumption	Varies depending on the model
Certifications	CE, FCC, RoHS
Port Count	24, 48 (varies by model)
Gigabit Ethernet Ports	24, 48 (varies by model)
PoE Support	Available on some models (DGS-1210-28P, DGS-1210-52P, etc.)
Jumbo Frame Support	Yes, up to 9, 216 Bytes
Storage Temperature	-40°C to 70°C
