1 Product Introduction DGS-1210 series Metro Ethernet Managed Switch User Manual
9
9
Amber
Solid
Light
When there is a secure
100Mbps connection at the port.
(For DGS-1210-28XS/ME only)
Blinking
Amber
When there is reception or
transmission occurring at the
port. (For DGS-1210-28XS/ME
only)
Off
Solid
off
No link.
LED Per 10G
SFP+ Port
(for DGS-1210-
28X/ME,
28XS/ME)
Link/Act
Green
Solid
Light
When there is a secure 10Gbps
connection at the port.
Blinking
Green
When there is reception or
transmission occurring at the
port.
Amber
Solid
Light
When there is a secure
1000Mbps connection at the
port.
Blinking
Amber
When there is reception or
transmission occurring at the
port.
Off
Solid
off
No link.
Rear Panel Description
The rear panel of the Switch contains an AC power connector. The AC power connector is a standard three-
pronged connector that supports the power cord. Plug-in the female connector of the provided power cord
into this socket, and the male side of the cord into a power outlet. The Switch automatically adjusts its power
setting to any supply voltage in the range from 100 to 240 VAC at 50 to 60 Hz. Connect the Kensington-
compatible security lock, at the rear of the switch, to a secure immovable device. Insert the lock into the
notch and turn the key to secure the lock.
The rear panel also includes an outlet for an optional external power supply and one RJ-45 console port.
When a power failure occurs, the optional external RPS will immediately and automatically assume the
power supply for the Switch.

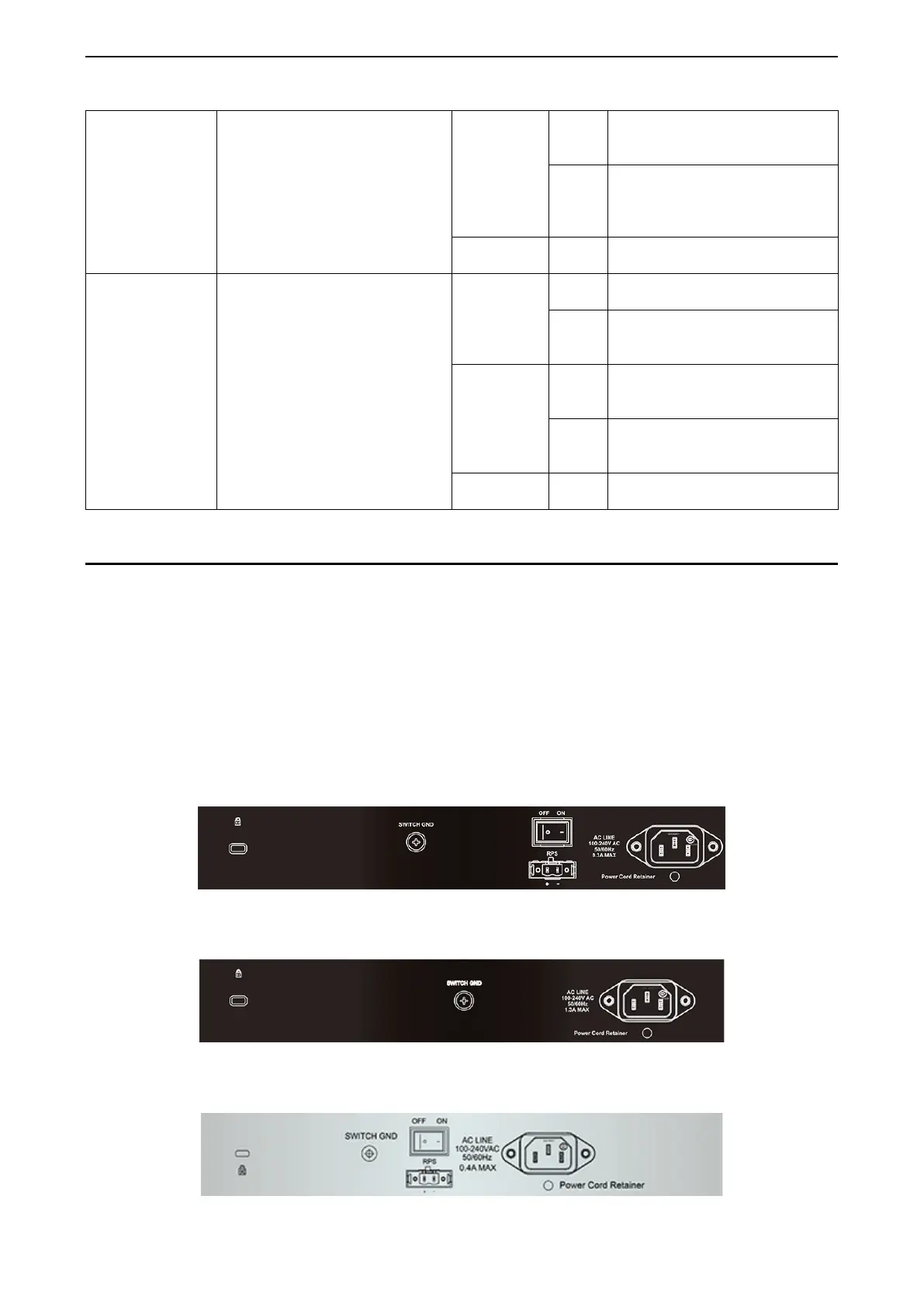

DGS-1210-10/ME
Figure 1.15
－
DGS-1210-10/ME Rear Panel
DGS-1210-10P/ME
Figure 1.16
－
DGS-1210-10P/ME Rear Panel
DGS-1210-12TS/ME
Figure 1.17
－
DGS-1210-12TS/ME Rear Panel

D-Link DGS-1210 Series Specifications

General

Model	DGS-1210 Series
Uplink Ports	2/4 (varies by model)
VLAN Support	Yes
QoS	Yes
Management	Web-based
Dimensions	Varies depending on the model
Weight	Varies depending on the model
Operating Temperature	0°C to 45 °C
Power Consumption	Varies depending on the model
Certifications	CE, FCC, RoHS
Port Count	24, 48 (varies by model)
Gigabit Ethernet Ports	24, 48 (varies by model)
PoE Support	Available on some models (DGS-1210-28P, DGS-1210-52P, etc.)
Jumbo Frame Support	Yes, up to 9, 216 Bytes
Storage Temperature	-40°C to 70°C
