1 Product Introduction DGS-1210 series Metro Ethernet Managed Switch User Manual
4

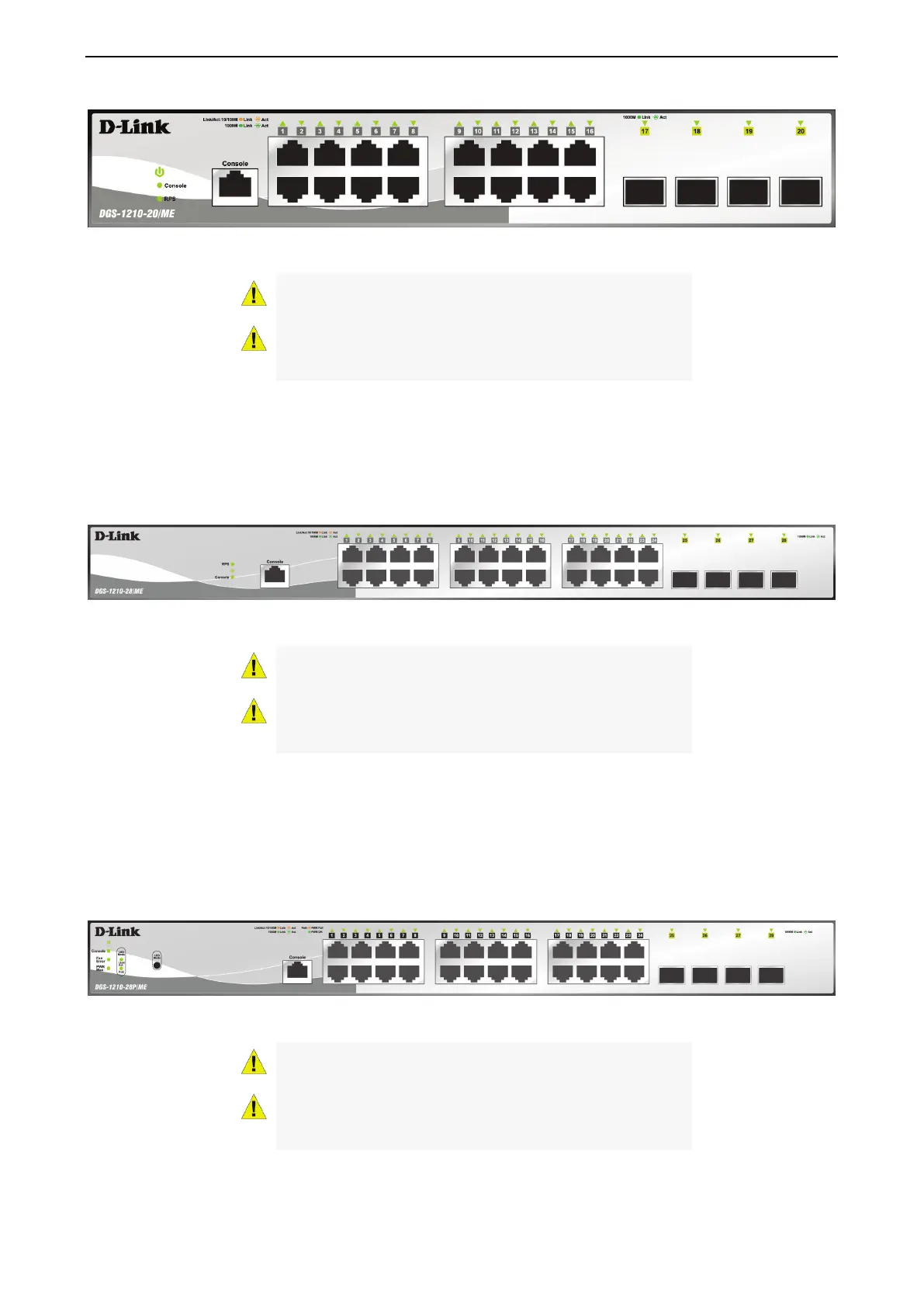

Figure 1.4 – DGS-1210-20/ME Front Panel
CAUTION: The MiniGBIC ports should use UL listed
Optical Transceiver product, Rated Laser Class I. 3.3Vdc.
PRÉCAUTION:
Les ports Mini GBIC doivent utiliser la
liste UL. Produit émetteur-récepteur optique, classe laser
I. 3.3Vdc.
The front panel of the DGS-1210-28/ME switch consists out of the following:
• 24 10/100/1000Mbps Copper Ports
• 4 1000Mbps SFP ports
• One RJ-45 Console Port
• LEDs for Power, RPS, Console, Link/Act for port 1 ~ 28
Figure 1.5 – DGS-1210-28/ME Front Panel
CAUTION: The MiniGBIC ports should use UL listed
Optical Transceiver product, Rated Laser Class I. 3.3Vdc.
PRÉCAUTION: Les ports Mini
GBIC doivent utiliser la
liste UL. Produit émetteur-récepteur optique, classe laser
I. 3.3Vdc.
The front panel of the DGS-1210-28P/ME switch consists out of the following:
• 24 10/100/1000Mbps Copper Ports
• 4 1000Mbps SFP ports
• One RJ-45 Console Port
• LEDs for Power, Console, Fan Error, Pwr Max, Link/Act for port 1 ~ 28
• Mode: By pressing the Mode button, the Port LED will switch between Link/Act and PoE modes
Figure 1.6 – DGS-1210-28P/ME Front Panel
CAUTION: The MiniGBIC ports should use UL listed
Optical Transceiver product, Rated Laser Class I. 3.3Vdc.
PRÉCAUTION:
Les ports Mini GBIC doivent utiliser la
liste UL. Produit émetteur-récepteur optique, classe laser
I. 3.3Vdc.
