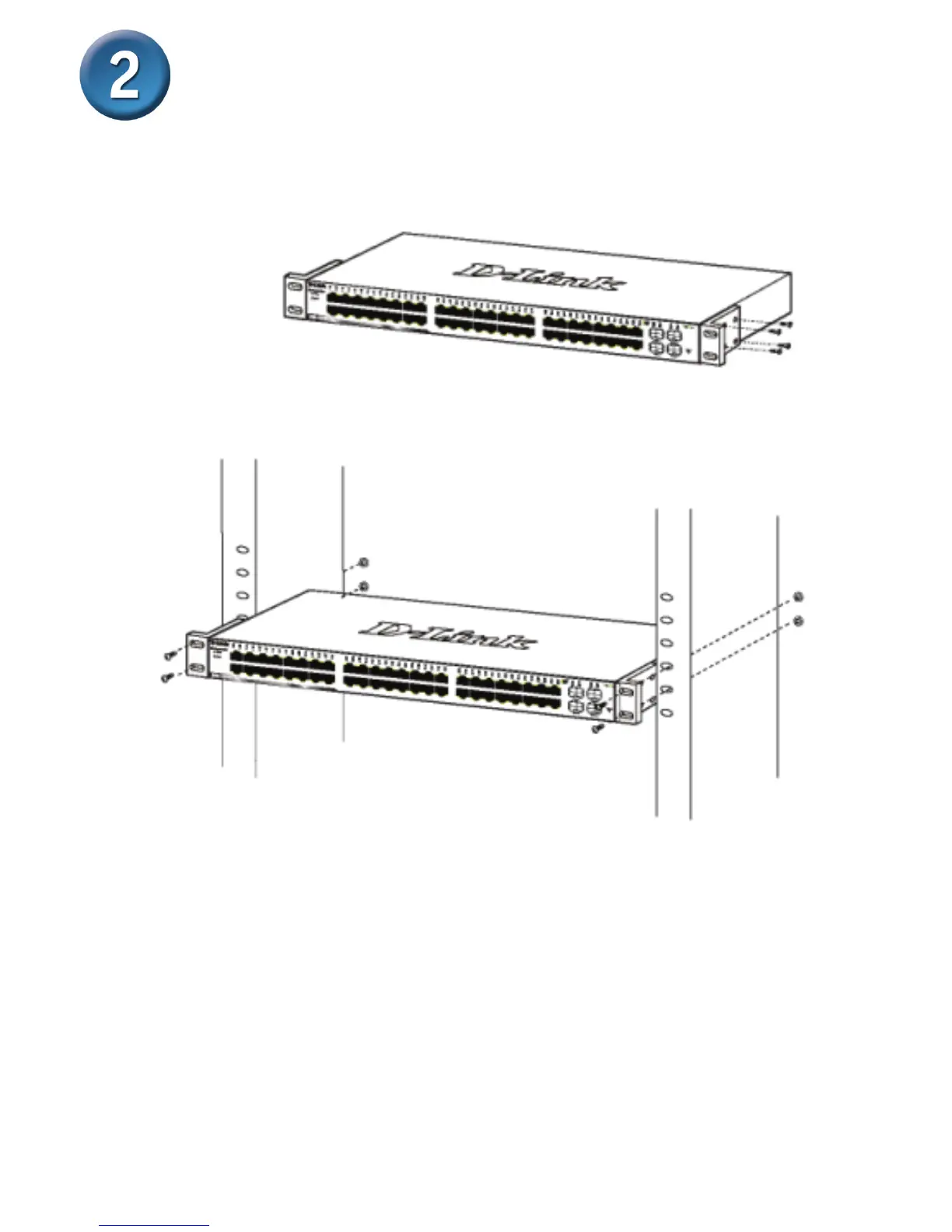

Rack Mounting
The DGS-1248T can be mounted in an EIA standard-size, 19-inch rack,
which can be placed in a wiring closet with other equipments. Attach the
mounting brackets to both sides of the Switch (one at each side), and
secure them with the provided screws.
Use the screws provided. Then use screws provided with the
equipment rack to mount the Switch in the rack.
Mount the Switch in the rack
Connecting Network Cable
The DGS-1248T supports 10/100/1000Mbps Gigabit Ethernet. It runs
full/half duplex transfer mode for 10/100Mbps and full duplex transfer
mode for 1000Mbps. Each port on the DGS-1248T supports Auto-
MDI/MDI-X. Auto-MDI/MDI-X is a feature that eliminates the need for
worrying about using either a standard or crossover cable—you can
use either one—and allows any port to be an uplink port.
AC Power
The DGS-1248T can be used with AC power supply 100~240V AC,
50~60Hz. The power switch is located at the rear of the unit adjacent to
the AC power connector and the system fan. The switch’s power supply
will adjust to the local power source automatically and may be turned on
without having any or all LAN segment cables connected.
