9

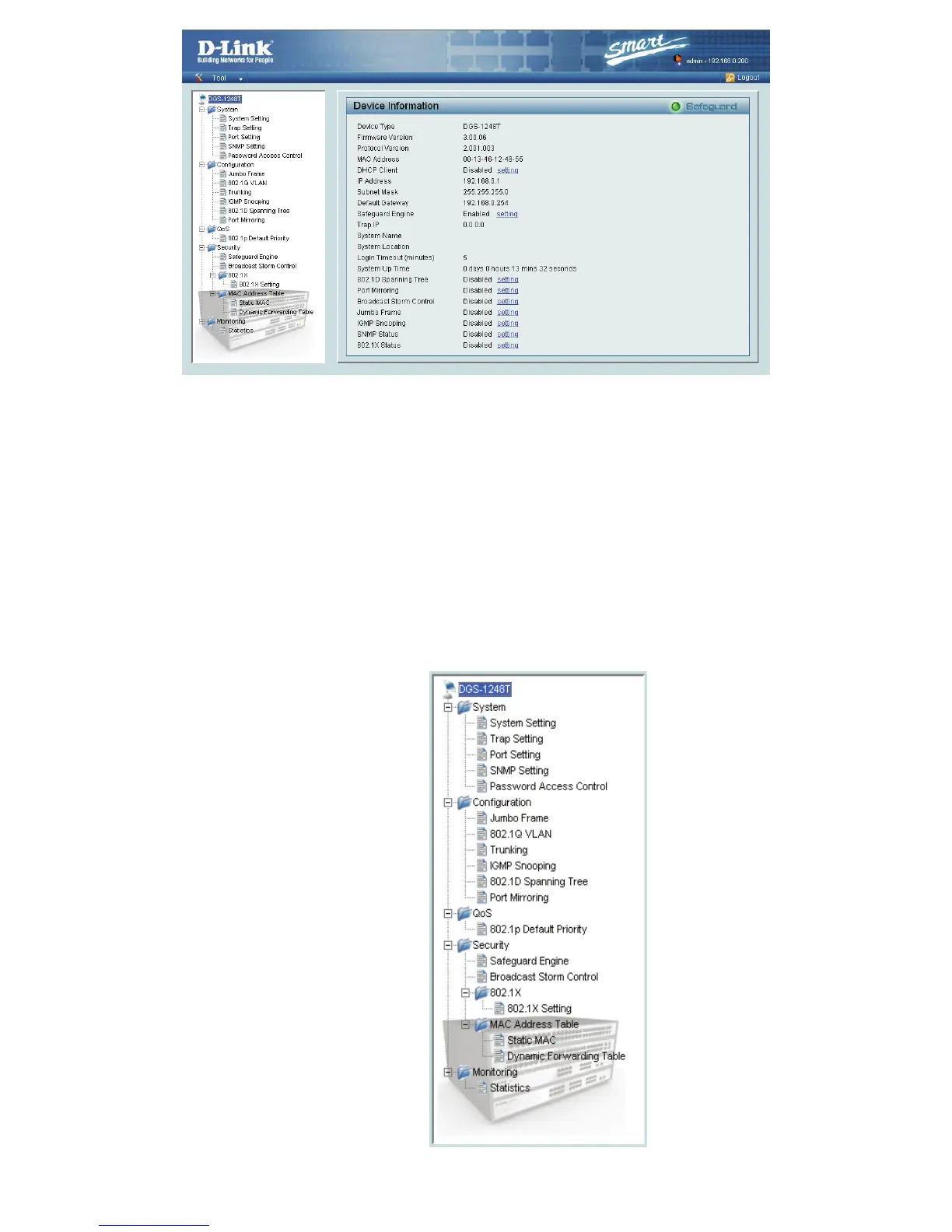

Figure 4.
Setup Menu
When the main page appears, find the Setup menu in the left side of the
screen (Figure 5). Click on the setup item that you want to configure.
There are eleven options: System Setting, Trap Setting, Port Setting,
SNMP Setting, Password Access Control, 802.1Q VLAN, Trunking,
IGMP Snooping, 802.1D Spanning Tree, Port Mirroring, 802.1p Default
Priority, Safeguard Engine, Broadcast Storm Control, 802.1X Setting,
Static MAC, Dynamic Forwarding Table and Statistics. (Figure 5).
Figure 5.
