DGS-3100 Series Gigabit Stackable Managed Switch Hardware Installation Guide
Using the External Redundant Power Supply
The device supports an external Redundant Power Supply.

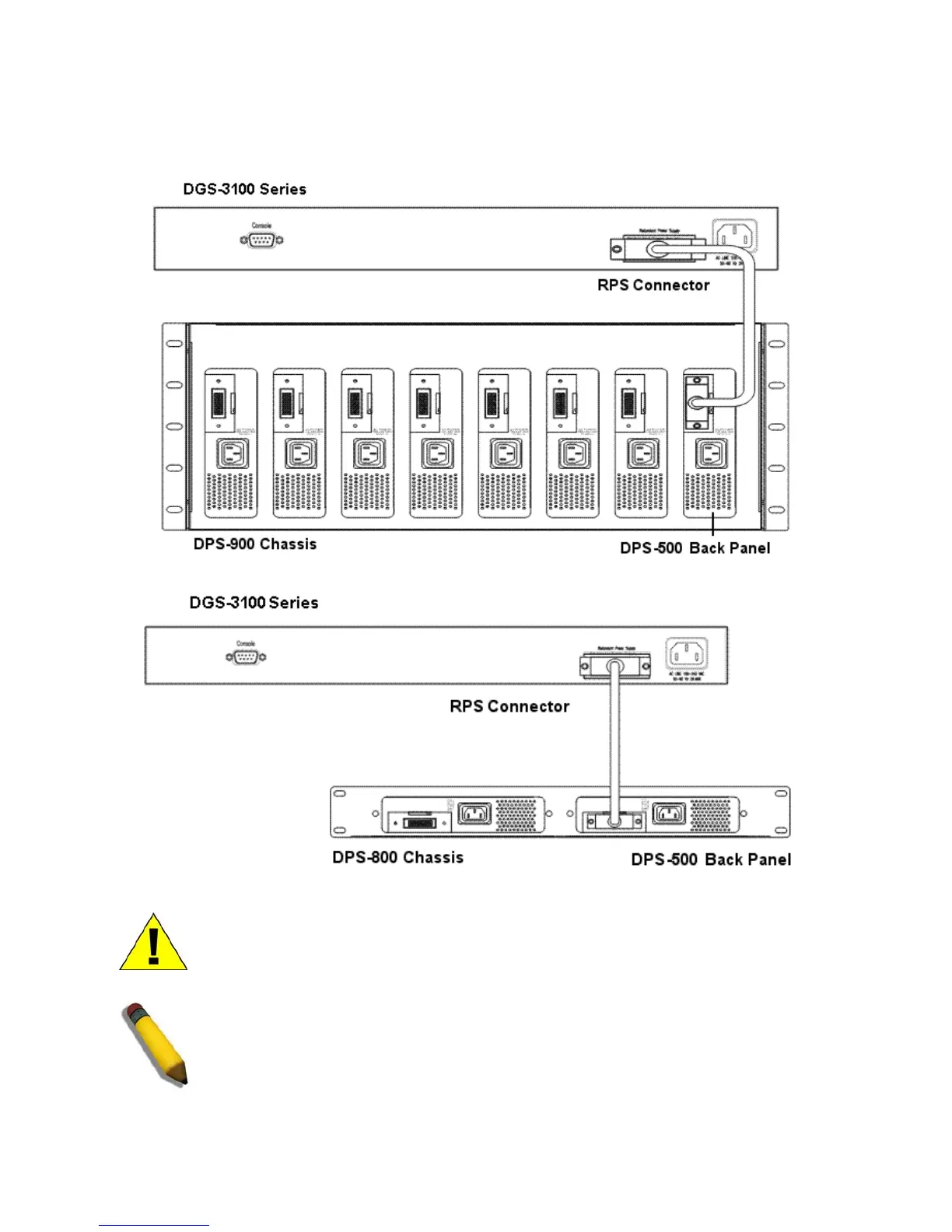

Figure 2-4. DPS-500 in DPS-900 Chassis
Figure 2-5. DPS-500 in DPS-800 Chassis
CAUTION: Do not use the device with any Redundant Power Supply other than a device supported
RPS.
NOTE: See Section 1, Viewing Rear Panel for more information.
15
