Packet Size
Users can display packets received by the Switch, arranged in six groups and classed by size, as either a line graph or a table. Two
windows are offered. To select a port to view these statistics for, select the port by using the Port pull-down menu. The user may
also use the real-time graphic of the Switch at the top of the web page by simply clicking on a port.
To view the following windows, click Monitoring > Packet Size:

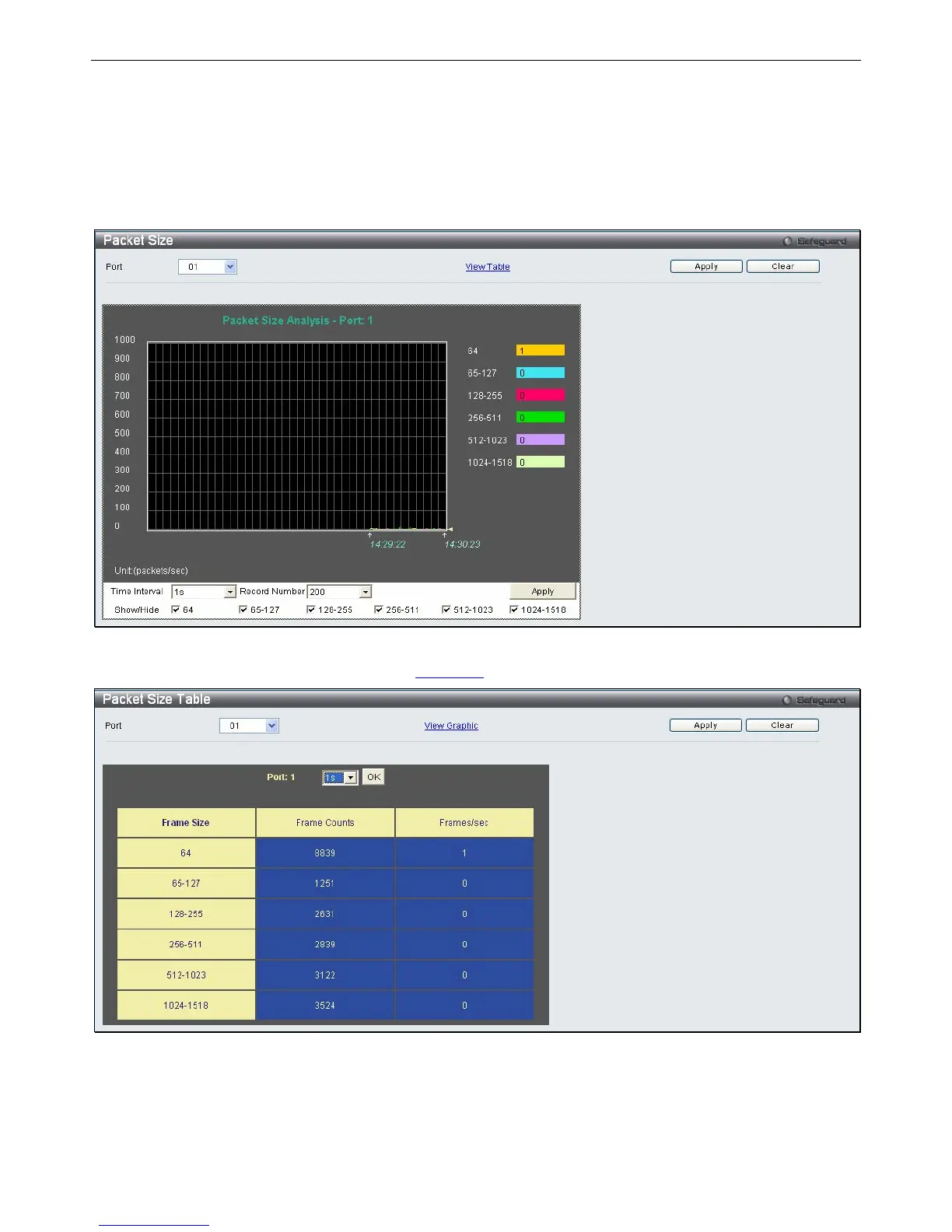

Figure 7 - 5. Packet Size window
To view the Packet Size Table window, click the link View Table
, which will show the following table:
Figure 7 - 6. Packet Size Table window
The following fields can be set or viewed:
