xStack
®
DGS-3200 Series Layer 2 Gigabit Ethernet Managed Switch
188
Errors
The Web manager allows port error statistics compiled by the Switch's management agent to be viewed as either a line graph or a
table. Four windows are offered.
Received (RX)
To select a port to view these statistics for, select the port by using the Port pull-down menu. The user may also use the real-time
graphic of the Switch at the top of the web page by simply clicking on a port.
To view the following windows, click Monitoring > Errors > Received (RX):

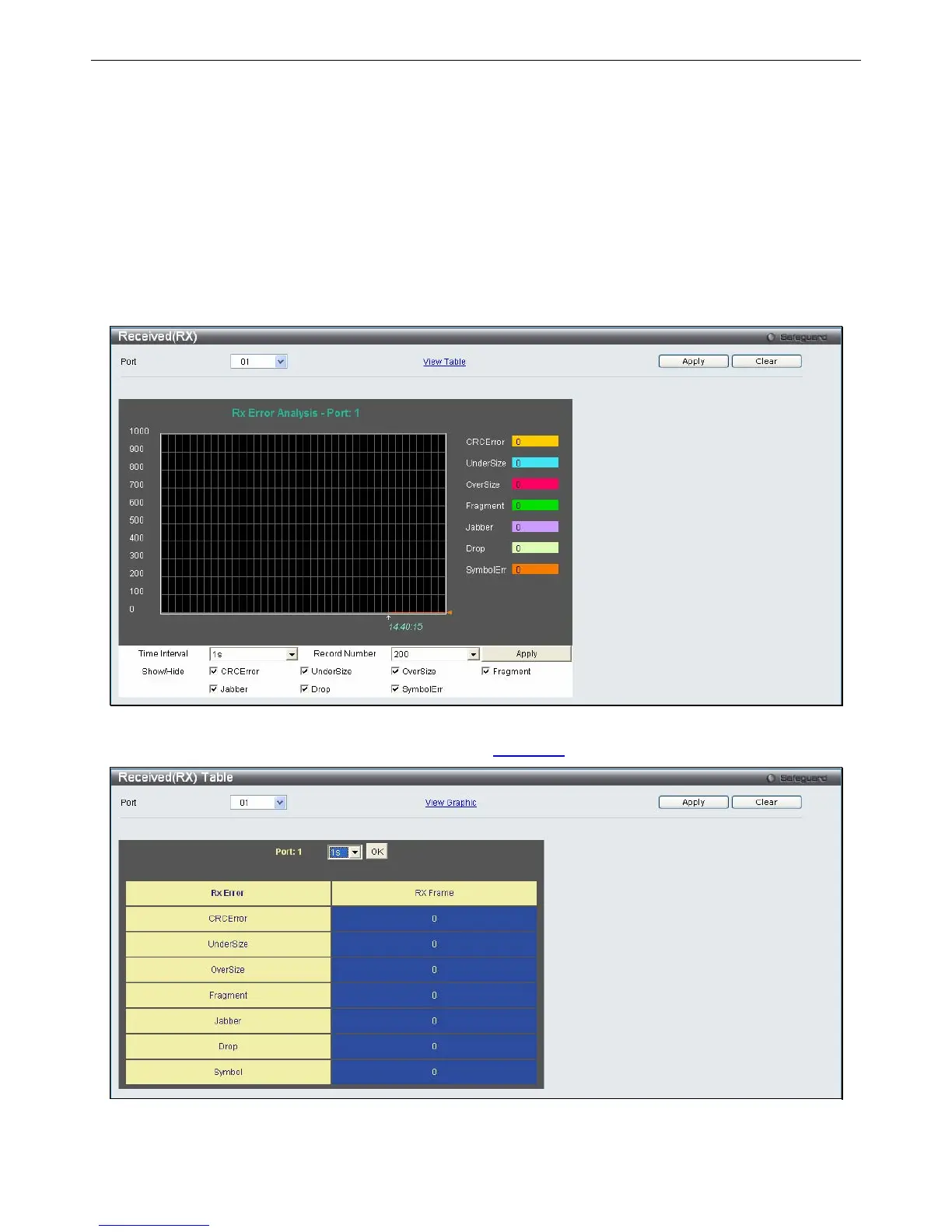

Figure 7- 13. Received (RX) window (for errors)
To view the Received (RX) Table window for errors, click the link View Table
, which will show the following table:
Figure 7 - 14. Received (RX) Table window (for errors)
