xStack
®
DGS-3200 Series Layer 2 Gigabit Ethernet Managed Switch
190
Transmitted (TX)
To select a port to view these statistics for, select the port by using the Port pull-down menu. The user may also use the real-time
graphic of the Switch at the top of the web page by simply clicking on a port.
To view the following windows, click Monitoring > Errors > Transmitted (TX):

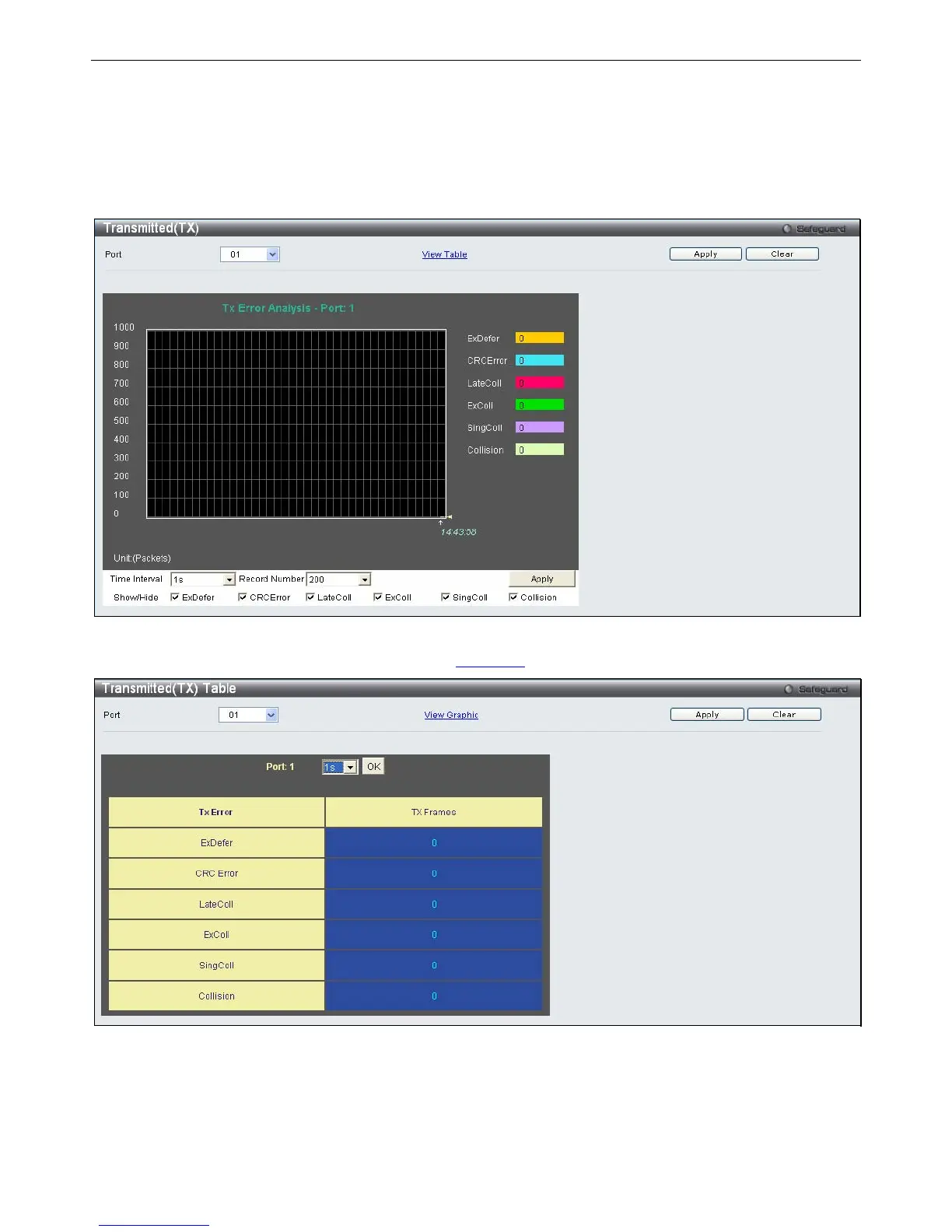

Figure 7- 15. Transmitted (TX) window (for errors)
To view the Transmitted (TX) Table window, click the link View Table
, which will show the following table:
Figure 7- 16. Transmitted (TX) Table window (for errors)
The following fields may be set or viewed:
