UMB_cast (RX)
To select a port to view these statistics for, select the port by using the Port pull-down menu. The user may also use the real-time
graphic of the Switch at the top of the web page by simply clicking on a port.
To view the following windows, click Monitoring > Packets > UMB_cast (RX):

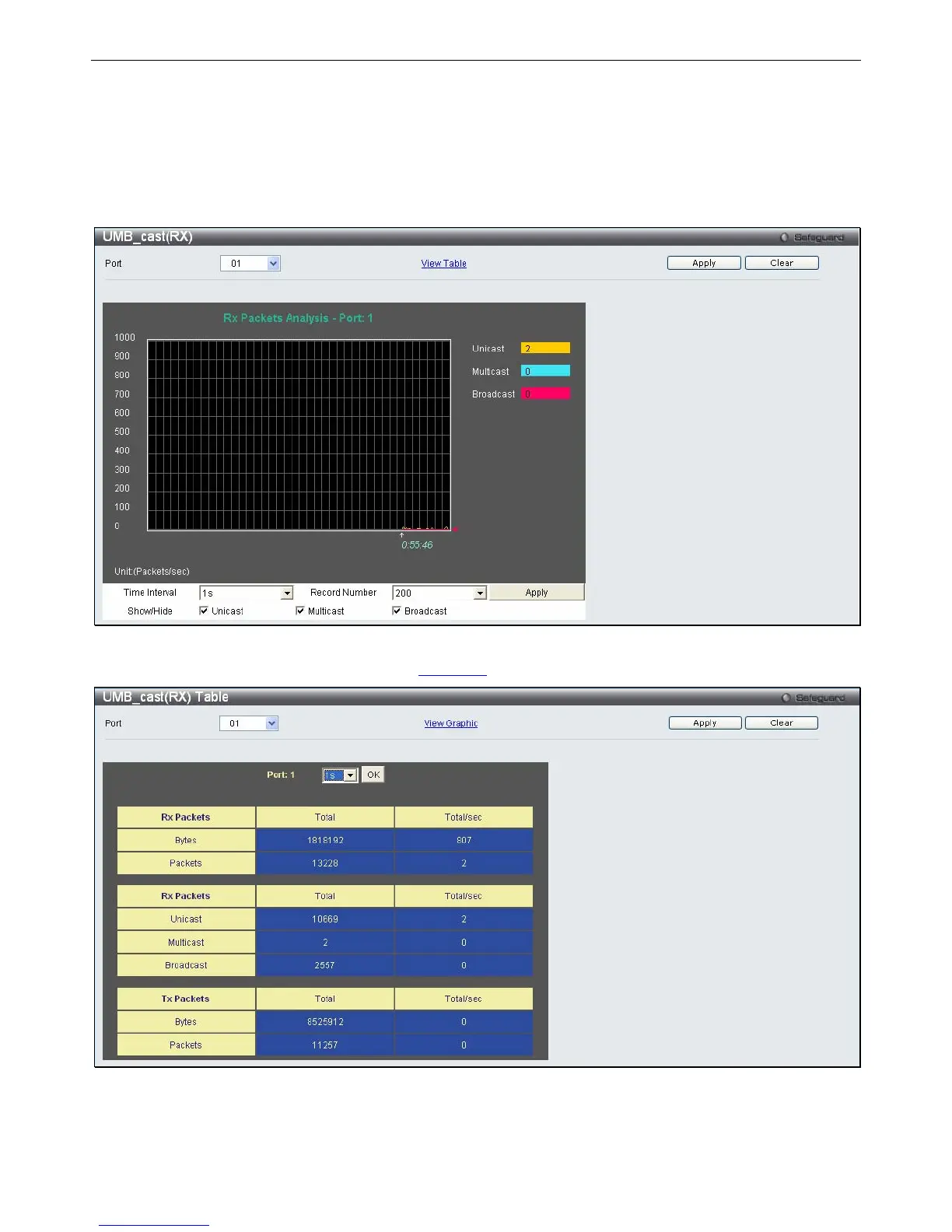

Figure 7 - 9. UMB_cast (RX) window (for Unicast, Multicast, and Broadcast Packets)
To view the UMB_cast (RX) Table window, click the View Table
link.
Figure 7 - 10. UMB_cast (RX) Table window (for Unicast, Multicast, and Broadcast Packets)
The following fields may be set or viewed:
