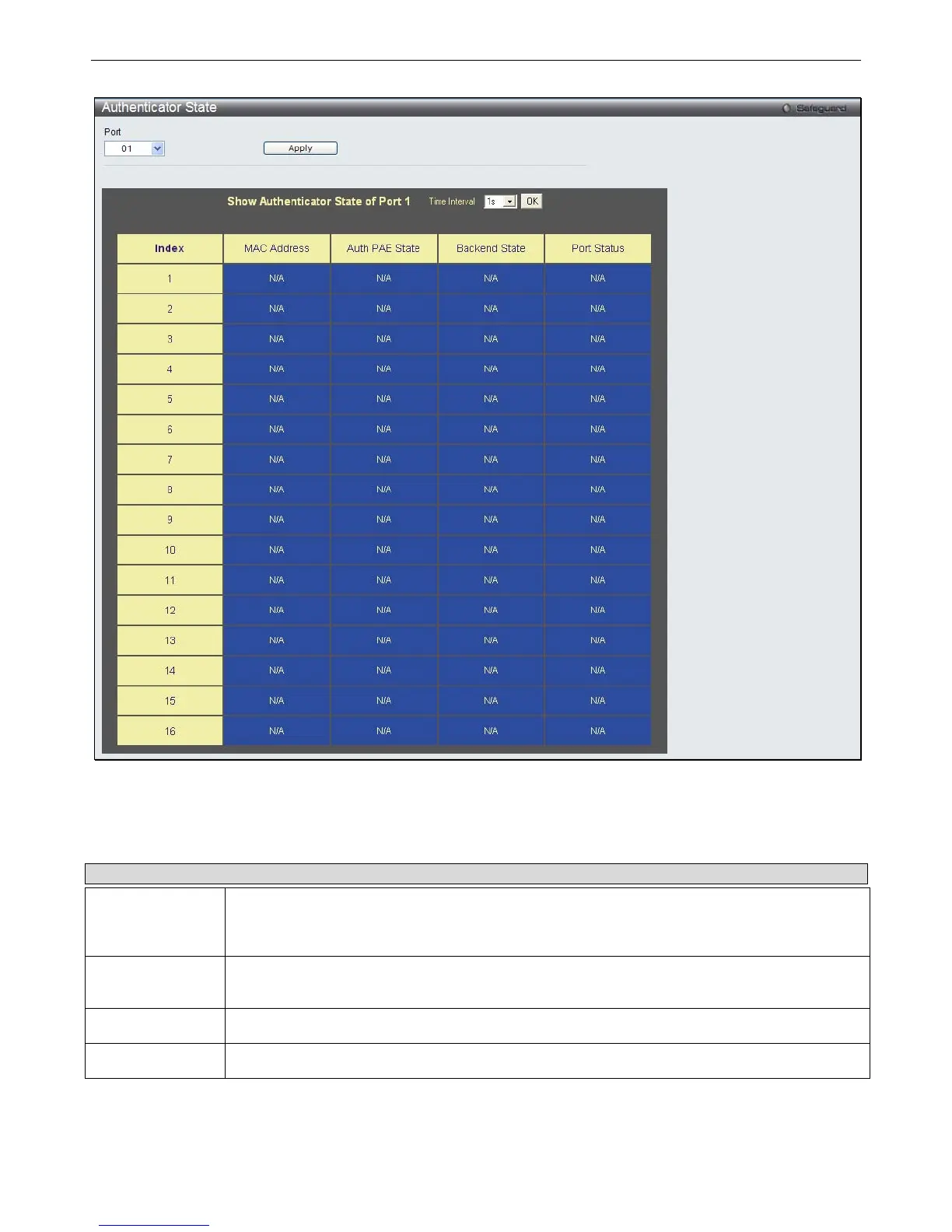

Figure 7 - 18. Authenticator State window – MAC-Based 802.1X
This window displays the Authenticator State for individual ports on a selected device. A polling interval between 1 and 60
seconds can be set using the drop-down menu at the top of the window and clicking OK.
The information on this window is described as follows:
Parameter Description
Auth PAE State
The Authenticator PAE State value can be: Initialize, Disconnected, Connecting, Authenticating,
Authenticated, Aborting, Held, Force_Auth, Force_Unauth, or N/A. N/A (Not Available) indicates
that the port's authenticator capability is disabled.
Backend State
The Backend Authentication State can be Request, Response, Success, Fail, Timeout, Idle,
Initialize, or N/A. N/A (Not Available) indicates that the port's authenticator capability is disabled.
Port Status
Controlled Port Status can be Authorized, Unauthorized, or N/A.
MAC Address
The MAC Address of the device of the corresponding index number.
To Next Page
