D-Link DHP-W312AV User Manual

16D-Link DHP-W312AV User Manual
Section 3 - Conguration

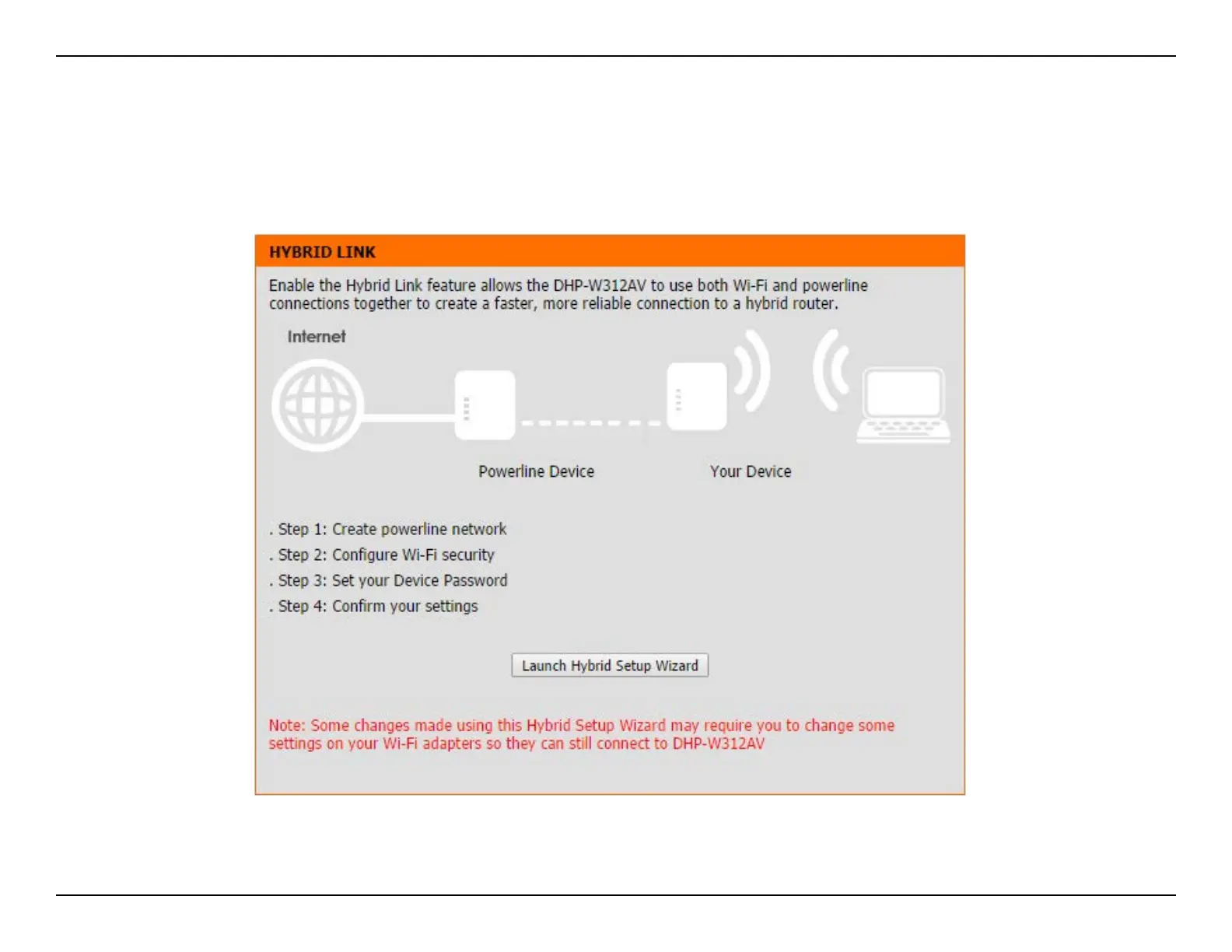

Hybrid Link Setup
Use the wizard’s on-screen instructions to conveniently set up your network if you have not yet. You can also manually congure your network.
Wi-Fi settings are covered at “Wireless Settings” on page 17 and Powerline settings are at “PLC Settings” on page 21.

D-Link DHP-W312AV Specifications

Power

AC input voltage	100 - 240 VAC
AC input frequency	50/60 Hz
transmitter output power	13 dBm (+/- 2dB)

Operating Environment

operating temperature	32 to 104 °F (0 to 40 °C)
storage temperature	-14 to 158 °F (-10 to 70 °C)
operating humidity	10% to 90% Relative Humidity

Wireless Specifications

frequency range	2.4GHz to 2.497GHz, 5GHz 5.15~5.25GHz, 5.725 ~ 5.85GHz
wireless bandwidth rate IEEE 802.11n	6.5 to 300 Mbps
wireless bandwidth rate IEEE 802.11ac	6.5 to 1300 Mbps

Weight and Dimensions

dimensions	101 x 70 x 45 mm (3.54 x 2.75 x 1.97 inches)
