D-Link DHP-W312AV User Manual

31D-Link DHP-W312AV User Manual
Section 3 - Conguration

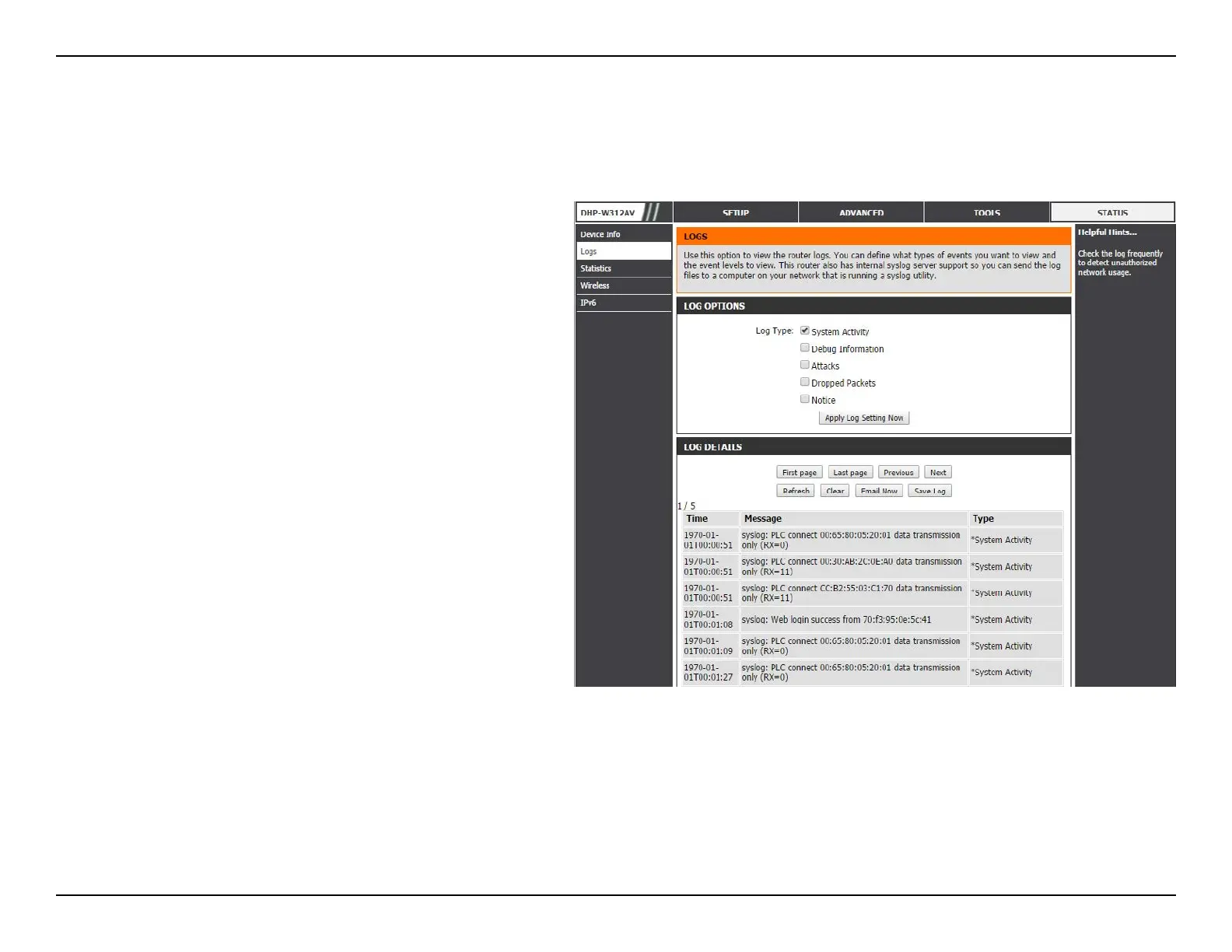

Logs
The DHP-W312AV keeps a running log of events and activities occurring on the DHP-W312AV. If the AP is rebooted, the logs are automatically
cleared. You can save the log les prior to clearing them.
Log Options:
First Page:
Last Page:
Previous:
Next:
Refresh:
Clear:
Email Now:
Save Log File:
You can select the types of messages
that you would like to display from the
log: System Activity, Debug Information,
Attacks, Dropped Packets,
Notice. Select the types you want to view
and click Apply Log Setting Now.
Go to the rst page of the log.
Go to the last page of the log.
Go to the previous page of the log.
Go to the next page of the log.
Refresh the page.
This button clears all current log content.
Click this button to email a log record to a
designated email address.
Save the log to your hard drive.

D-Link DHP-W312AV Specifications

Power

AC input voltage	100 - 240 VAC
AC input frequency	50/60 Hz
transmitter output power	13 dBm (+/- 2dB)

Operating Environment

operating temperature	32 to 104 °F (0 to 40 °C)
storage temperature	-14 to 158 °F (-10 to 70 °C)
operating humidity	10% to 90% Relative Humidity

Wireless Specifications

frequency range	2.4GHz to 2.497GHz, 5GHz 5.15~5.25GHz, 5.725 ~ 5.85GHz
wireless bandwidth rate IEEE 802.11n	6.5 to 300 Mbps
wireless bandwidth rate IEEE 802.11ac	6.5 to 1300 Mbps

Weight and Dimensions

dimensions	101 x 70 x 45 mm (3.54 x 2.75 x 1.97 inches)
