D-Link DHP-W312AV User Manual

41D-Link DHP-W312AV User Manual
Section 3 - Conguration
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being used.

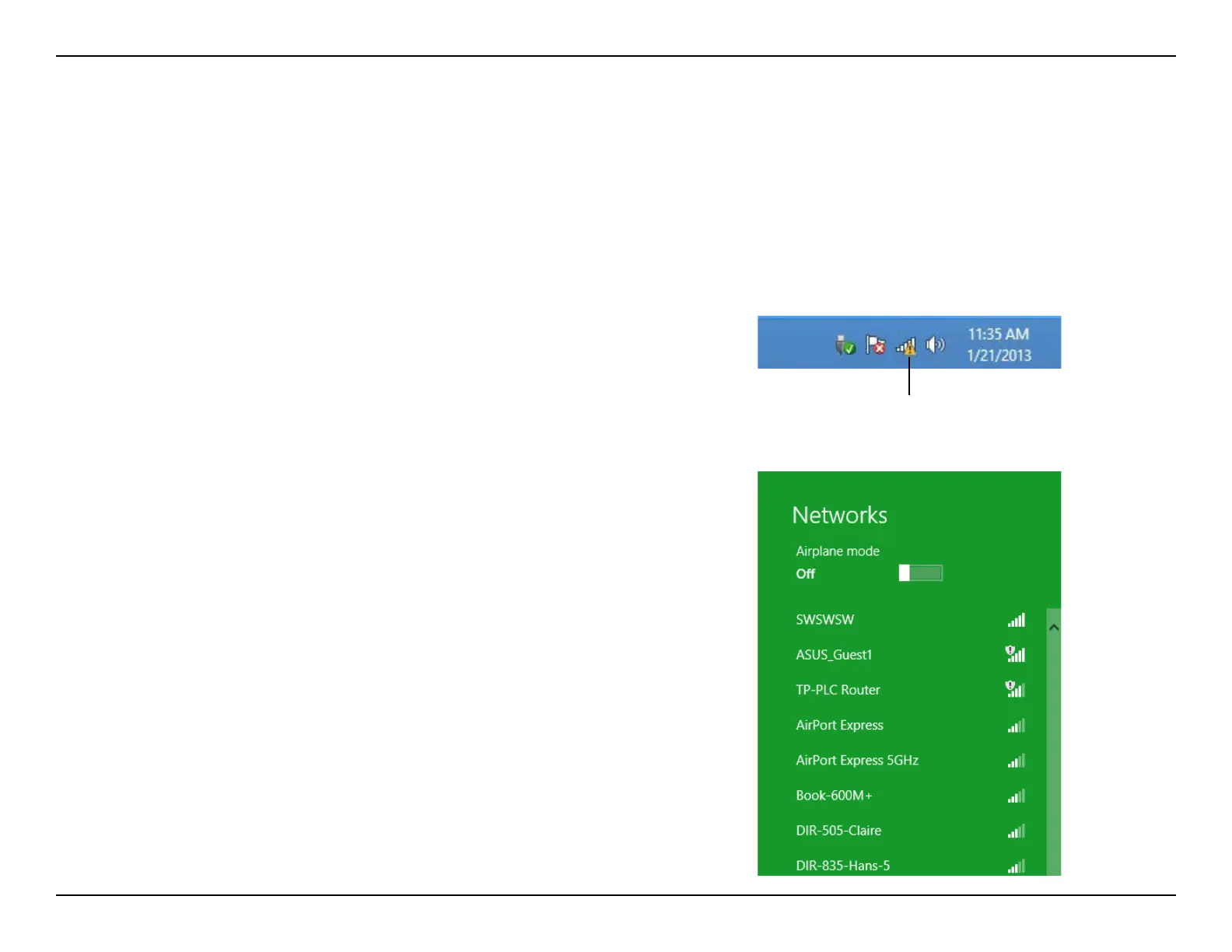

To join an existing network, locate the wireless network icon in the taskbar, next to
the time display.
Wireless Icon
Clicking on this icon will display a list of wireless networks which are within connecting
proximity of your computer. Select the desired network by clicking on the network
name.
Using Windows 8

D-Link DHP-W312AV Specifications

Power

AC input voltage	100 - 240 VAC
AC input frequency	50/60 Hz
transmitter output power	13 dBm (+/- 2dB)

Operating Environment

operating temperature	32 to 104 °F (0 to 40 °C)
storage temperature	-14 to 158 °F (-10 to 70 °C)
operating humidity	10% to 90% Relative Humidity

Wireless Specifications

frequency range	2.4GHz to 2.497GHz, 5GHz 5.15~5.25GHz, 5.725 ~ 5.85GHz
wireless bandwidth rate IEEE 802.11n	6.5 to 300 Mbps
wireless bandwidth rate IEEE 802.11ac	6.5 to 1300 Mbps

Weight and Dimensions

dimensions	101 x 70 x 45 mm (3.54 x 2.75 x 1.97 inches)
