D-Link DIR-300A User Manual

DIR-300A Wireless N150 Router
User Manual
Configuring via Web-based Interface
Static IPv6 Connection

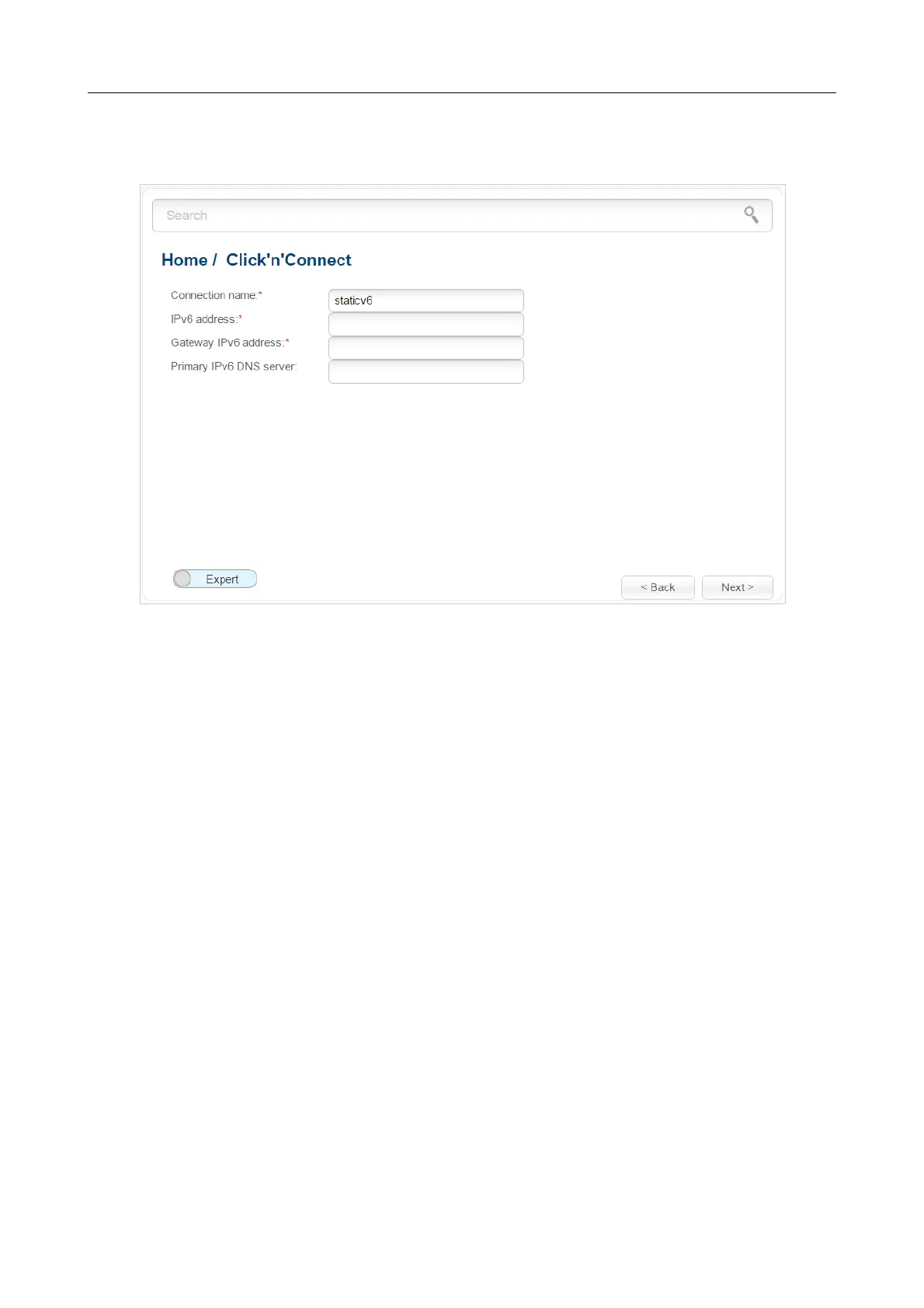

Figure 29. Configuring Static IPv6 WAN connection.
In the Connection name field, specify a name for the connection for easier identification.
Fill in the IPv6 address and Gateway IPv6 address fields.
As a rule, the specified settings are enough to configure a connection of the selected type. If you
need to specify additional settings, open the expert settings mode. To do this, use the switch in the
bottom left corner of the page (for a detailed description of all the connection's parameters, see the
Creating Static IPv6 or Dynamic IPv6 WAN Connection section, page 92).
Click the Next button to continue.
After that the page displaying all specified settings opens. Click the Apply button to create the
connection or the Back button to specify other settings.
After clicking the Apply button, the page for checking the Internet availability opens (see the
Checking Internet Availability section, page 56).
Page 44 of 181

D-Link DIR-300A Specifications

General

Frequency Band	2.4GHz
Wireless Speed	Up to 300 Mbps
Antennas	2
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Wireless Standards	IEEE 802.11b/g/n
Ports	4 x 10/100 Mbps LAN, 1 x 10/100 Mbps WAN
Security	WPA/WPA2, WPS
Antenna Type	External, fixed
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 65°C
