DIR-853 AC1300 MU-MIMO Wi-Fi Gigabit Router
with 3G/LTE Support and USB Port 3.0
User Manual
Configuring via Web-based Interface
(,%0-1+1
This configuration step is available for the Router and WISP Repeater modes.
1. On the IPTV page, select the Is an STB connected to the device checkbox.

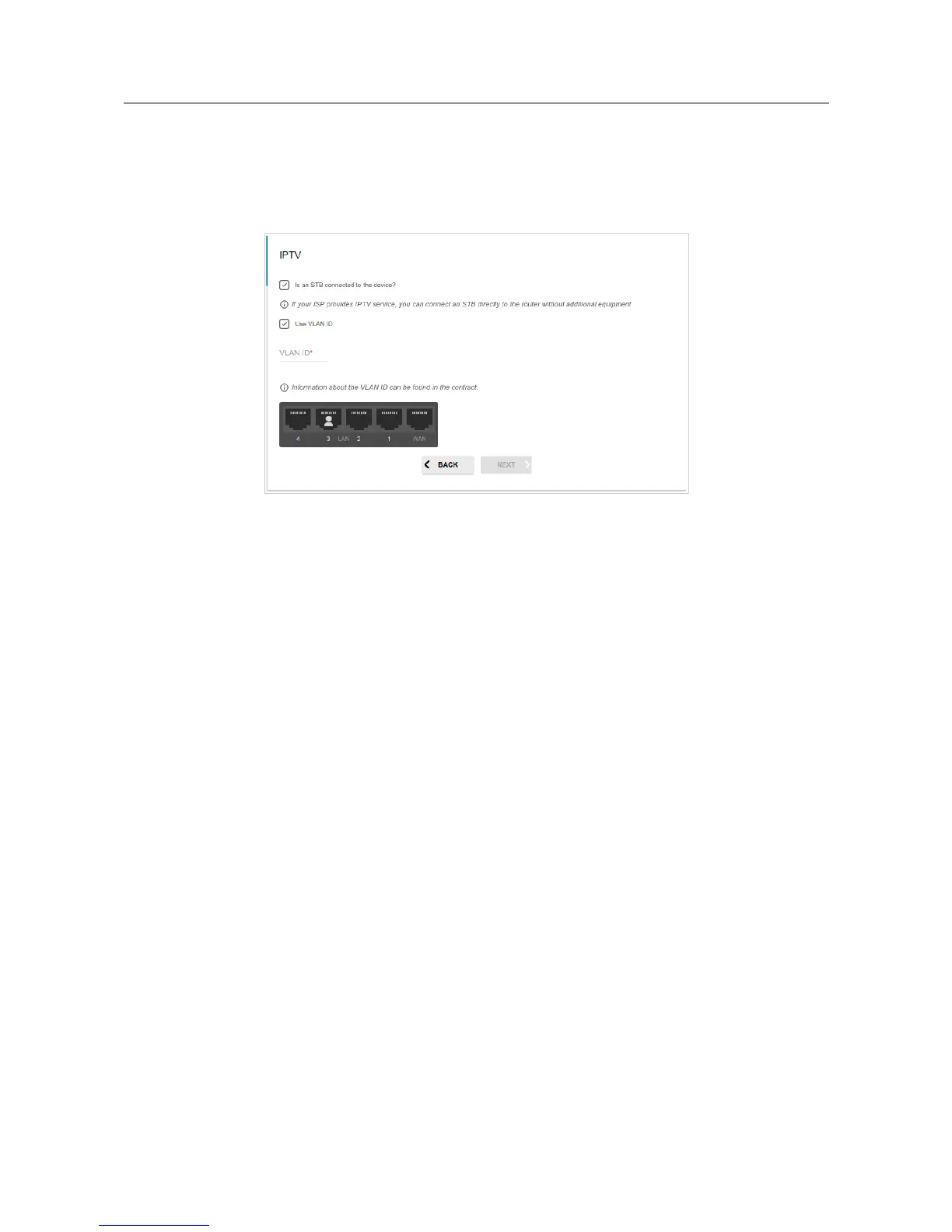

Figure 41. The page for selecting a LAN port to connect an IPTV set-top box.
2. Select a free LAN port for connecting your set-top box.
3. If the IPTV service is provided via a VLAN channel, select the Use VLAN ID checkbox
and fill in the VLAN ID field.
4. Click the NEXT button to continue or click the BACK button to specify other settings.
Page 56 of 228
