DIR-853 AC1300 MU-MIMO Wi-Fi Gigabit Router
with 3G/LTE Support and USB Port 3.0
User Manual
Configuring via Web-based Interface
If you need to configure a connection via VLAN, click the ADVANCED MODE button.

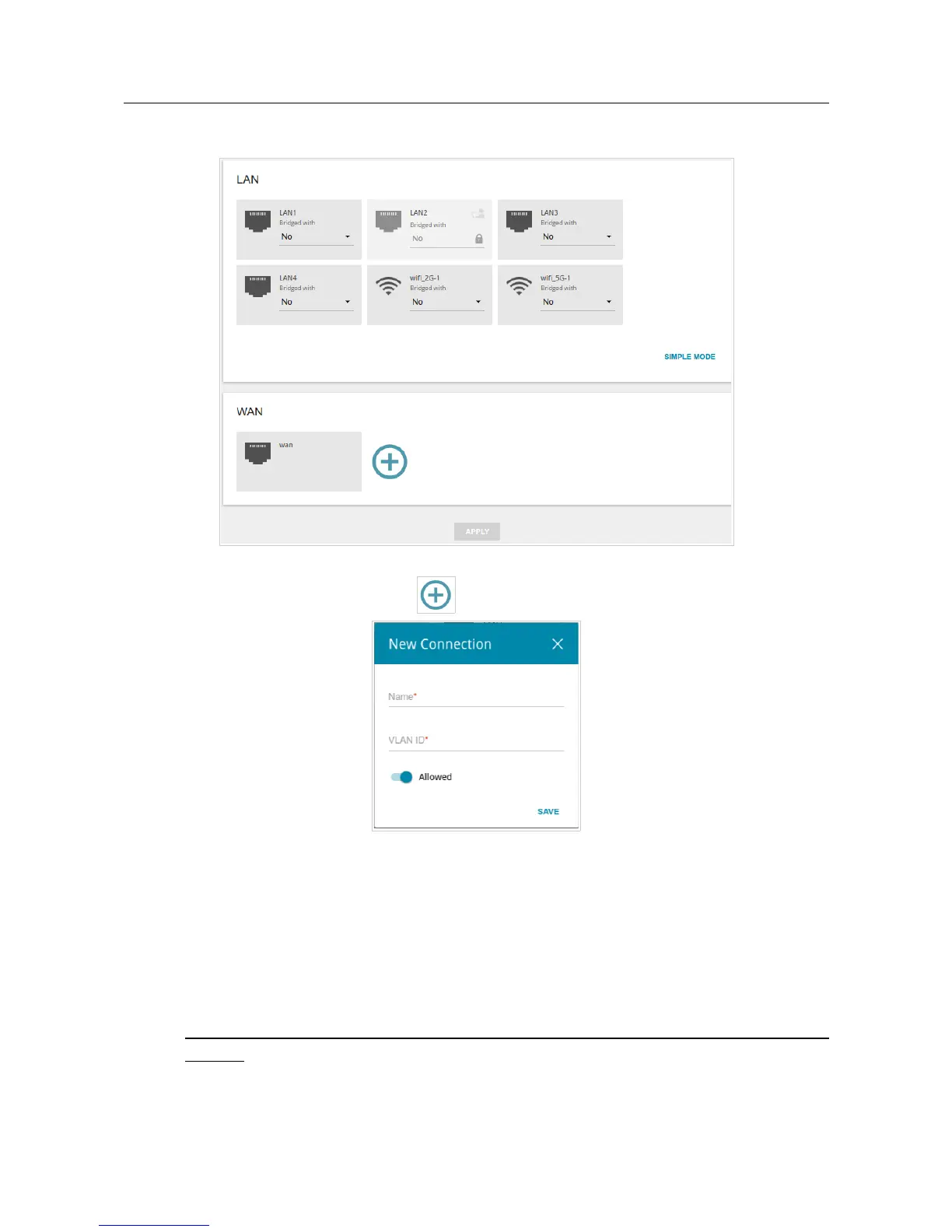

Figure 46. The Multimedia Devices Connection Wizard. The advanced mode.
In the WAN section, click the Add icon ( ).
Figure 47. Adding a connection.
In the opened window, specify a name of the connection for easier identification in the Name field
(you can specify any name). Specify the VLAN ID provided by your ISP and click the SAVE
button.
Then in the LAN section, from the Bridged with drop-down list of the element corresponding to
the LAN port or wireless interface to which the additional device is connected, select the created
connection. Click the APPLY button.
!
The selected port or wireless interface cannot use the default connection to access the
Internet.
Page 61 of 228
