D-Link DIR-865L User Manual

125D-Link DIR-865L User Manual
Section 5 - Connecting to a Wireless Network
WPS/WCN 2.0
The router supports Wi-Fi protection, referred to as WCN 2.0 in Windows Vista®. The following instructions for setting this up
depends on whether you are using Windows Vista® to congure the router or third party software.
When you rst set up the router, Wi-Fi protection is disabled and uncongured. To enjoy the benets of Wi-Fi protection, the
router must be both enabled and congured. There are three basic methods to accomplish this: use Windows Vista’s built-in
support for WCN 2.0, use software provided by a third party, or manually congure.

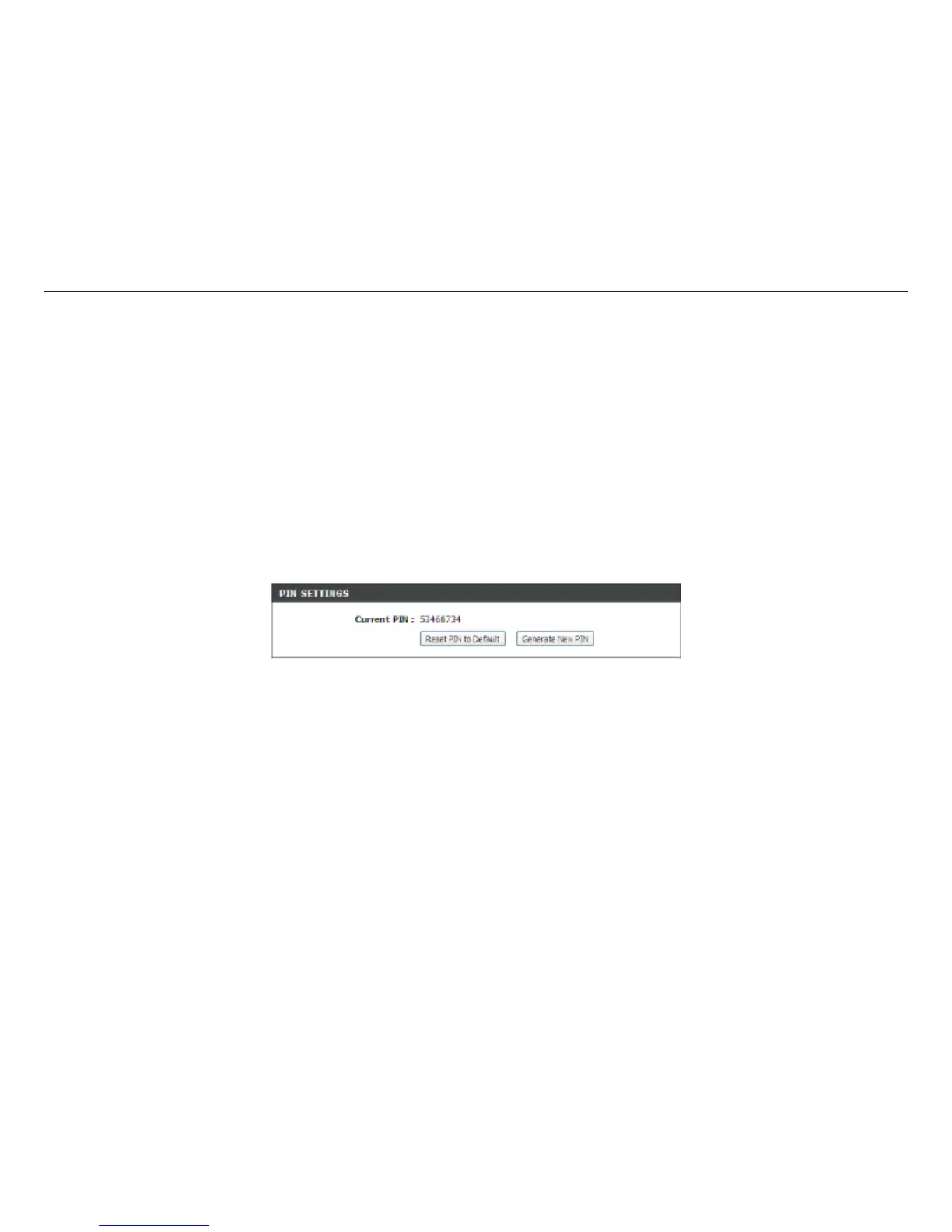

If you are running Windows Vista®, log into the router and click the Enable checkbox in the Basic > Wireless section. Use the
Current PIN that is displayed on the Advanced > Wi-Fi Protected Setup section or choose to click the Generate New PIN
button or Reset PIN to Default button.
If you are using third party software to set up Wi-Fi Protection, carefully follow the directions. When you are nished, proceed
to the next section to set up the newly-congured router.

D-Link DIR-865L Specifications

Device Interfaces

wireless LAN	802.11 a/b/g/n/ac
Gigabit LAN ports	Four 10/100/1000
Gigabit WAN port	10/100/1000
USB port	USB 3.0

Power

input voltage	100 to 240 V AC
input frequency	50/60 Hz
output voltage	12 V DC
output current	2.5 A
USB port power	5 V / 0.9 A

Operating Environment

operating temperature	32°F to 104°F (0°C to 40°C)
humidity	95% maximum (non-condensing)

Weight and Dimensions

length	102.3 mm (4.03 inches)
width	123.3 mm (4.85 inches)
height	217 mm (8.54 inches)
