Section 3 - Conguration

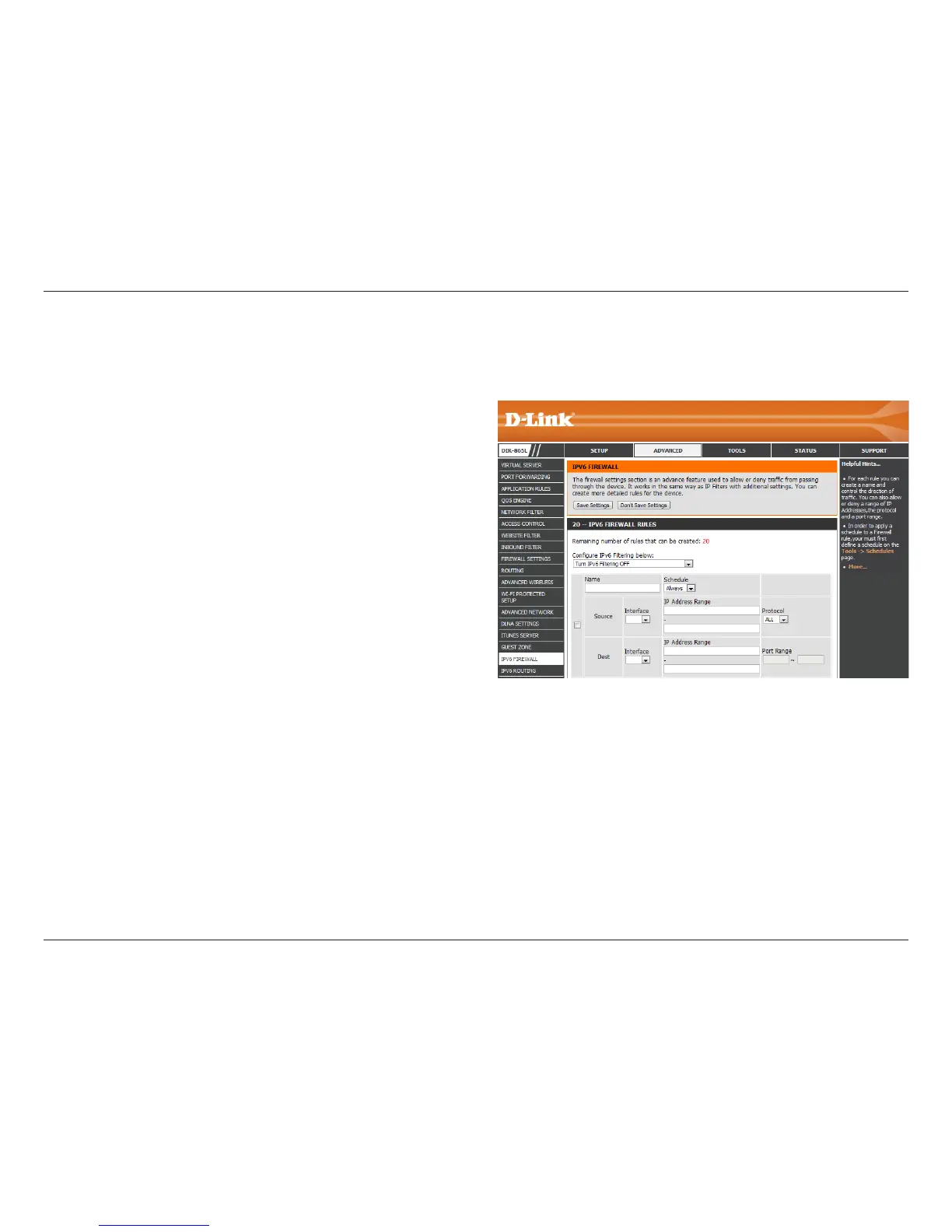

IPv6 Firewall
The DIR-865L’s IPv6 Firewall feature allows you to congure which kind of IPv6 trac is allowed to pass through the device.
The DIR-865L’s IPv6 Firewall functions in a similar way to the IP Filters feature.
Check the box to enable the IPv6 rewall simple security.
Select an action from the drop-down menu.
Enter a name to identify the IPv6 rewall rule.
Use the drop-down menu to select the time schedule that
the IPv6 Firewall Rule will be enabled on. The schedule may
be set to Always, which will allow the particular service to
always be enabled. You can create your own times in the
Tools > Schedules section.
Use the Source drop-down menu to specify the interface
that connects to the source IPv6 addresses of the rewall
rule.
Enter the source IPv6 address range in the adjacent IP Address Range eld.
Use the Dest drop-down menu to specify the interface that connects to the destination IP addresses of the rewall rule.
Select the protocol of the rewall port (All, TCP, UDP, or ICMP).
Enter the rst port of the range that will be used for the rewall rule in the rst box and enter the last port in the eld in the second
box.
Enable Checkbox:
Congure IPv6
Firewall:
Name:
Schedule:
Source:
IP Address Range:
Dest:
Protocol:
Port Range:

D-Link DIR-865L Specifications

Device Interfaces

wireless LAN	802.11 a/b/g/n/ac
Gigabit LAN ports	Four 10/100/1000
Gigabit WAN port	10/100/1000
USB port	USB 3.0

Power

input voltage	100 to 240 V AC
input frequency	50/60 Hz
output voltage	12 V DC
output current	2.5 A
USB port power	5 V / 0.9 A

Operating Environment

operating temperature	32°F to 104°F (0°C to 40°C)
humidity	95% maximum (non-condensing)

Weight and Dimensions

length	102.3 mm (4.03 inches)
width	123.3 mm (4.85 inches)
height	217 mm (8.54 inches)
