93D-Link DIR-865L User Manual
Section 3 - Conguration

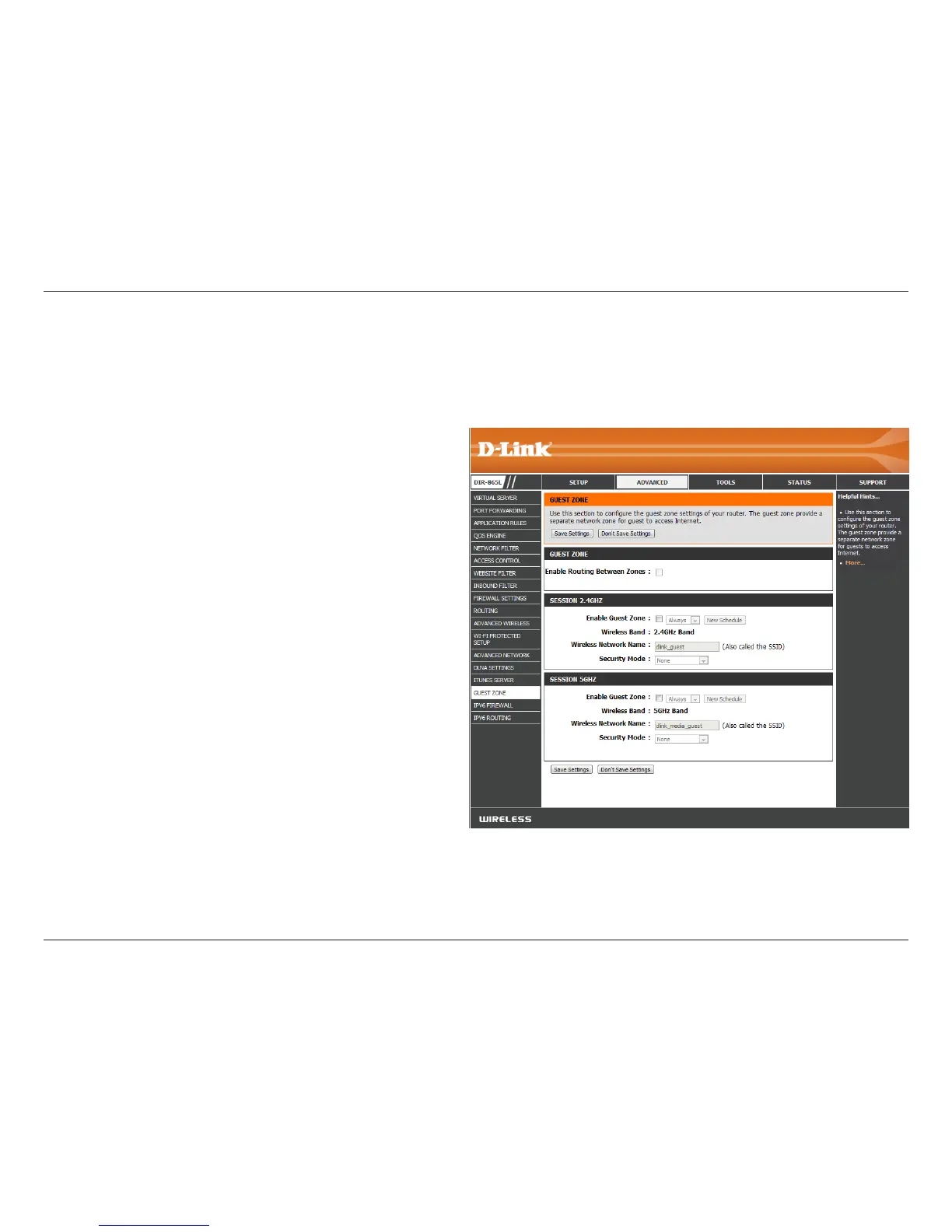

Guest Zone
Check to enable the Guest Zone feature.
Check to allow network connectivity between the
dierent zones created.
The schedule of time when the Guest Zone will be
active. The schedule may be set to Always, which will
allow the particular service to always be enabled. You
can create your own times in the Tools > Schedules
section or click Add New.
Enter a wireless network name (SSID) that is dierent
from your main wireless network.
Select the type of security or encryption you would
like to enable for the guest zone.
Enable Guest
Zone:
Enable Routing
Between Zones:
Schedule:
Wireless
Network Name:
Security Mode:
The Guest Zone feature will allow you to create temporary zones that can be used by guests to access the Internet. These zones
will be separate from your main wireless network. You may congure dierent zones for the 2.4GHz and 5GHz wireless bands.

Table of Contents

Other manuals for D-Link DIR-865L

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DIR-865L and is the answer not in the manual?

D-Link DIR-865L Specifications

Device Interfaces IconDevice Interfaces
wireless LAN802.11 a/b/g/n/ac
Gigabit LAN portsFour 10/100/1000
Gigabit WAN port10/100/1000
USB portUSB 3.0
Power IconPower
input voltage100 to 240 V AC
input frequency50/60 Hz
output voltage12 V DC
output current2.5 A
USB port power5 V / 0.9 A
Operating Environment IconOperating Environment
operating temperature32°F to 104°F (0°C to 40°C)
humidity95% maximum (non-condensing)
Weight and Dimensions IconWeight and Dimensions
length102.3 mm (4.03 inches)
width123.3 mm (4.85 inches)
height217 mm (8.54 inches)
