D-Link DIR-865L User Manual

66D-Link DIR-865L User Manual
Section 3 - Conguration

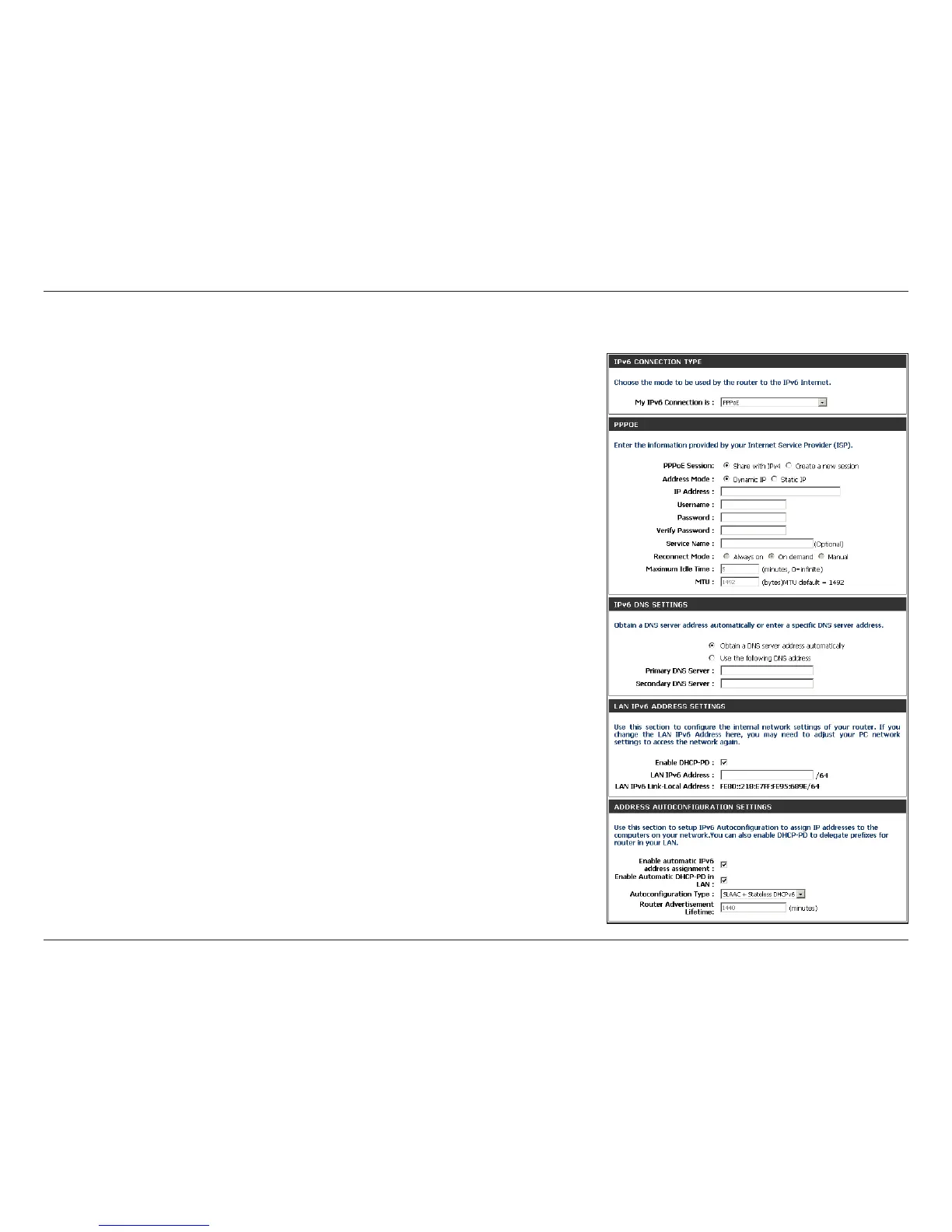

PPPoE
Select PPPoE from the drop-down menu.
Enter the PPPoE account settings supplied by your Internet
provider (ISP).
Select Static if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype the password in the
next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection
is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your specic ISP. 1492 is the default MTU.
Select either Obtain DNS server address automatically or Use
the following DNS Address.
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
My IPv6 Connection:
PPPoE:
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnection Mode:
Maximum Idle Time:
MTU:
IPv6 DNS Settings:
Primary/Secondary DNS
Address:
LAN IPv6 Address:
LAN Link-Local Address:
Enable Autoconguration:

D-Link DIR-865L Specifications

Device Interfaces

wireless LAN	802.11 a/b/g/n/ac
Gigabit LAN ports	Four 10/100/1000
Gigabit WAN port	10/100/1000
USB port	USB 3.0

Power

input voltage	100 to 240 V AC
input frequency	50/60 Hz
output voltage	12 V DC
output current	2.5 A
USB port power	5 V / 0.9 A

Operating Environment

operating temperature	32°F to 104°F (0°C to 40°C)
humidity	95% maximum (non-condensing)

Weight and Dimensions

length	102.3 mm (4.03 inches)
width	123.3 mm (4.85 inches)
height	217 mm (8.54 inches)
