Section 3 - Conguration
Select L2TP (Username/Password) from the drop-down menu.
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses. In most cases, select
Dynamic.
Enter the L2TP IP address supplied by your ISP (Static only).
Enter the Subnet Mask supplied by your ISP (Static only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
Enter your L2TP username.
Enter your L2TP password and then retype the password in
the next box.
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet
connection is maintained during inactivity. To disable this
feature, enable Auto-reconnect.
My Internet
Connection:
Address Mode:
L2TP IP Address:
L2TP Subnet
Mask:
L2TP Gateway:
L2TP Server IP:
Username:
Password:
Reconnect
Mode:
Maximum Idle
Time:

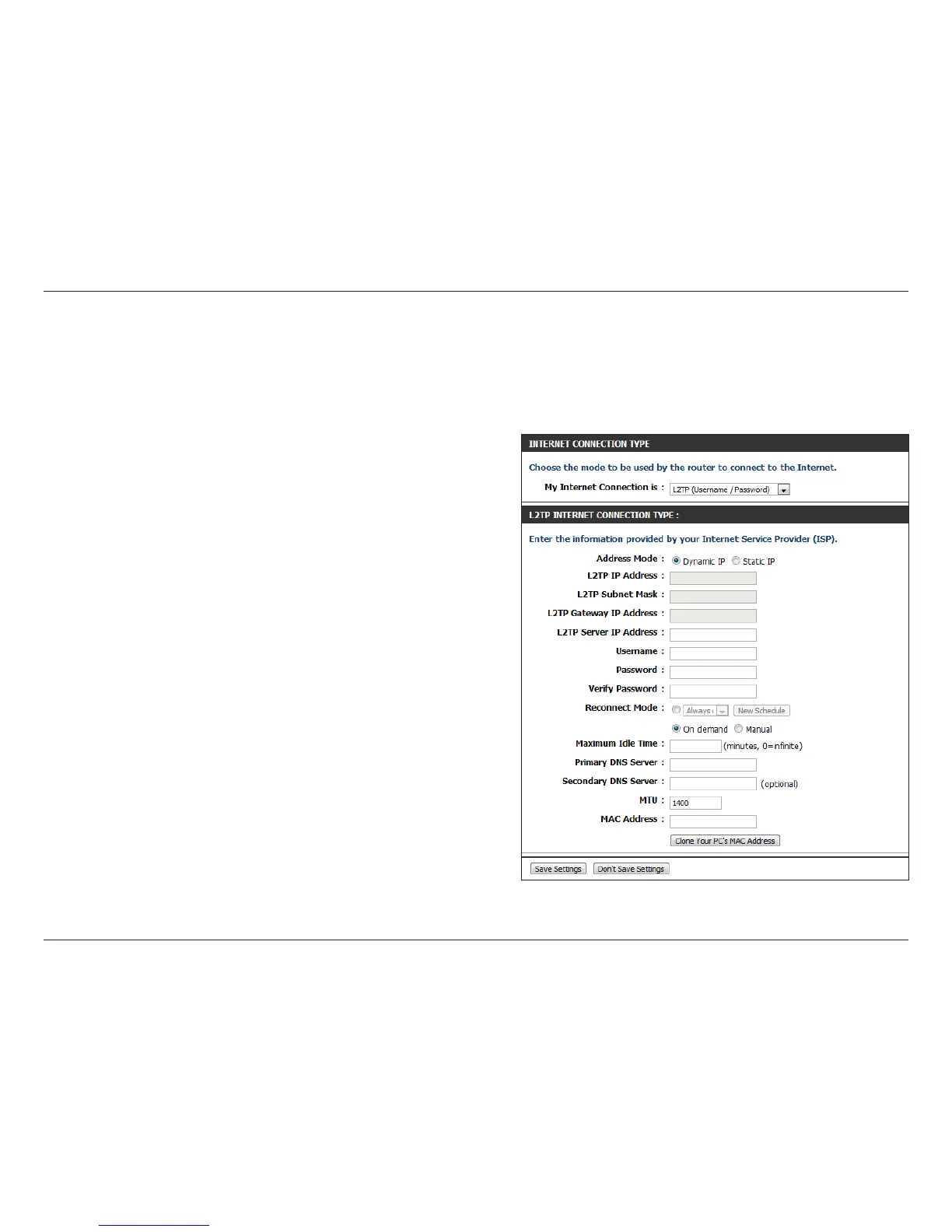

Internet Setup
L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and
password. This option is typically used for DSL services.

D-Link DIR-865L Specifications

Device Interfaces

wireless LAN	802.11 a/b/g/n/ac
Gigabit LAN ports	Four 10/100/1000
Gigabit WAN port	10/100/1000
USB port	USB 3.0

Power

input voltage	100 to 240 V AC
input frequency	50/60 Hz
output voltage	12 V DC
output current	2.5 A
USB port power	5 V / 0.9 A

Operating Environment

operating temperature	32°F to 104°F (0°C to 40°C)
humidity	95% maximum (non-condensing)

Weight and Dimensions

length	102.3 mm (4.03 inches)
width	123.3 mm (4.85 inches)
height	217 mm (8.54 inches)
