D-Link DIR-865L User Manual

86D-Link DIR-865L User Manual
Section 3 - Conguration
Enter a name for your route.
Enter the IP address of packets that will take this
route.
Enter the netmask of the route, please note
that the octets must match your destination IP
address.
Enter your next hop gateway to be taken if this
route is used.
The route metric is a value from 1 to 16 that
indicates the cost of using this route. A value 1 is
the lowest cost and 15 is the highest cost.
Select the interface that the IP packet must use to
transit out of the router when this route is used.
Name:
Destination IP:
Netmask:
Gateway:
Metric:
Interface:

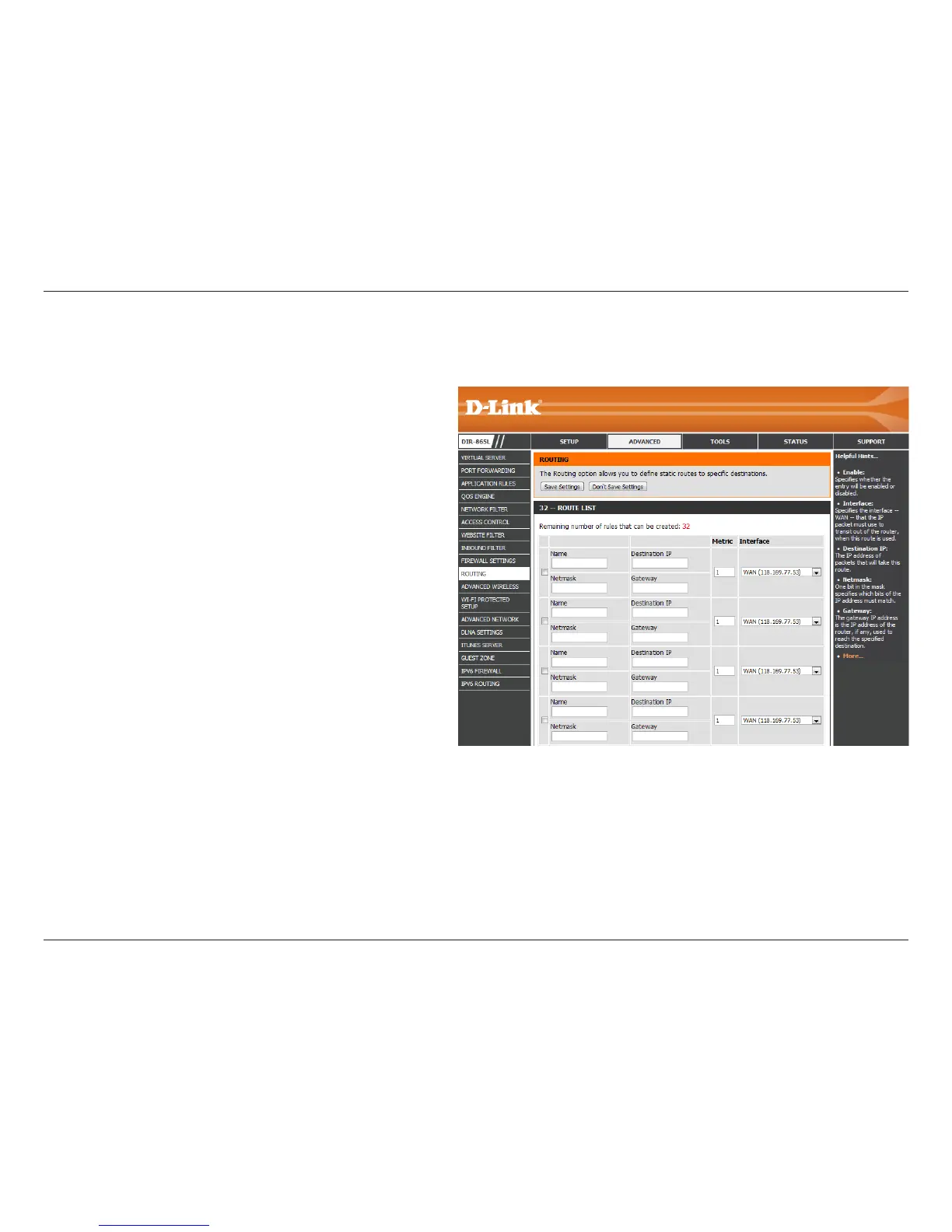

Routing
The Routing option is an advanced method of customizing specic routes of data through your network.

D-Link DIR-865L Specifications

Device Interfaces

wireless LAN	802.11 a/b/g/n/ac
Gigabit LAN ports	Four 10/100/1000
Gigabit WAN port	10/100/1000
USB port	USB 3.0

Power

input voltage	100 to 240 V AC
input frequency	50/60 Hz
output voltage	12 V DC
output current	2.5 A
USB port power	5 V / 0.9 A

Operating Environment

operating temperature	32°F to 104°F (0°C to 40°C)
humidity	95% maximum (non-condensing)

Weight and Dimensions

length	102.3 mm (4.03 inches)
width	123.3 mm (4.85 inches)
height	217 mm (8.54 inches)
