The fields that can be configured are described below:
Parameter Description
VLAN Name
Enter the name of the VLAN.
Tagged
Click to designate the post as tagged. Click the All button to select
all ports.
Untagged
Click to designate the port as untagged. Click the All button to
select all ports
Not Member
Click to allow an individual port to be specified as a non-VLAN
member. Click the All button to select all ports.
Native VLAN (PVID)
Click to designate the port as native VLAN. Click the All button to
select all ports.
Click the View Allowed VLAN button to see the allowed VLAN information for all ports.
Click the Back button to return to the previous step.
Click the Apply button to accept the changed made.
After clicking the View Allowed VLAN button, the following window will appear.

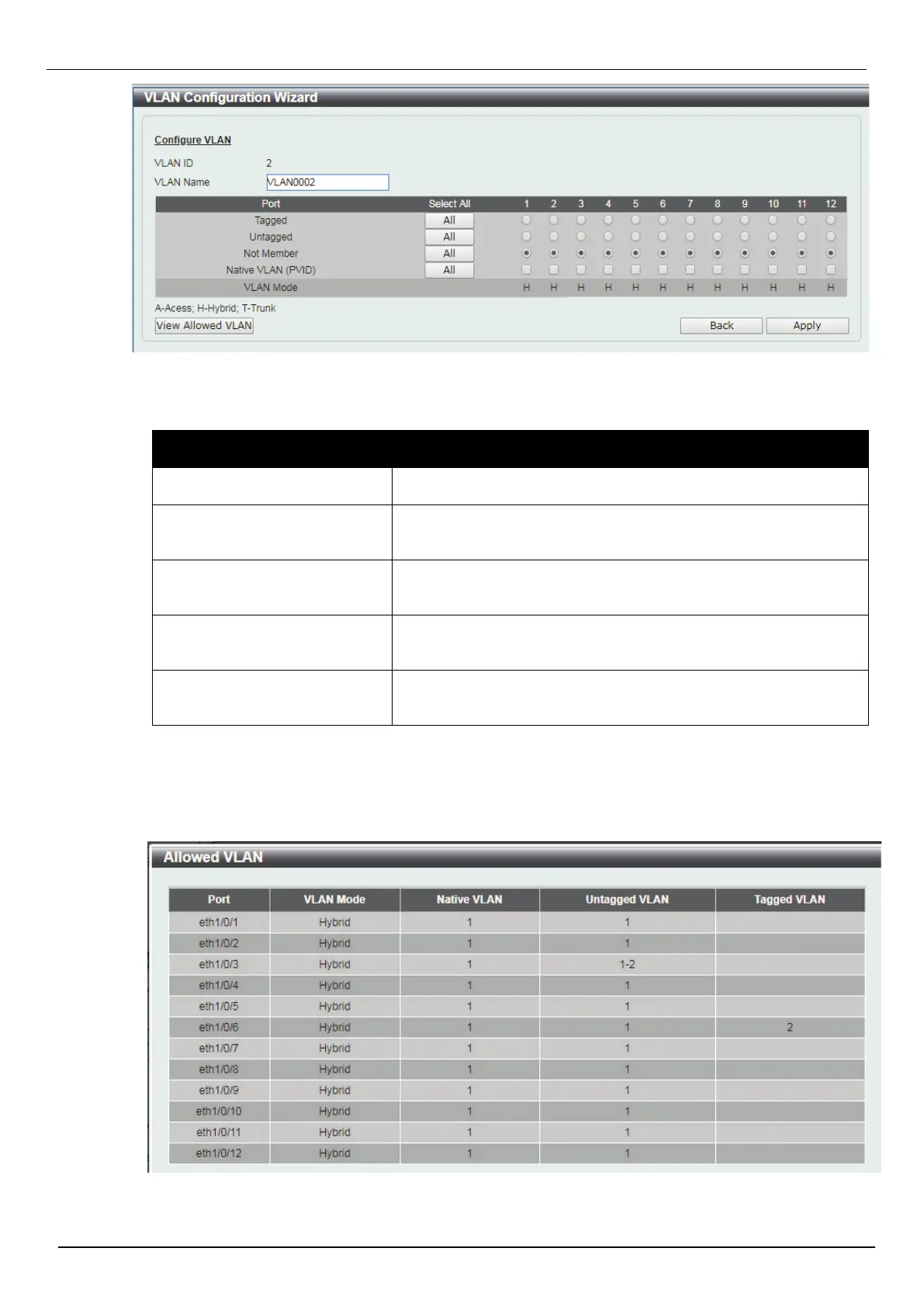

Figure 6-9 Allowed VLAN Window
Figure 6-8 VLAN Configuration Wizard (Configure VLAN) Window
