D-Link DPR-1061 User Manual

6
LED Indicators

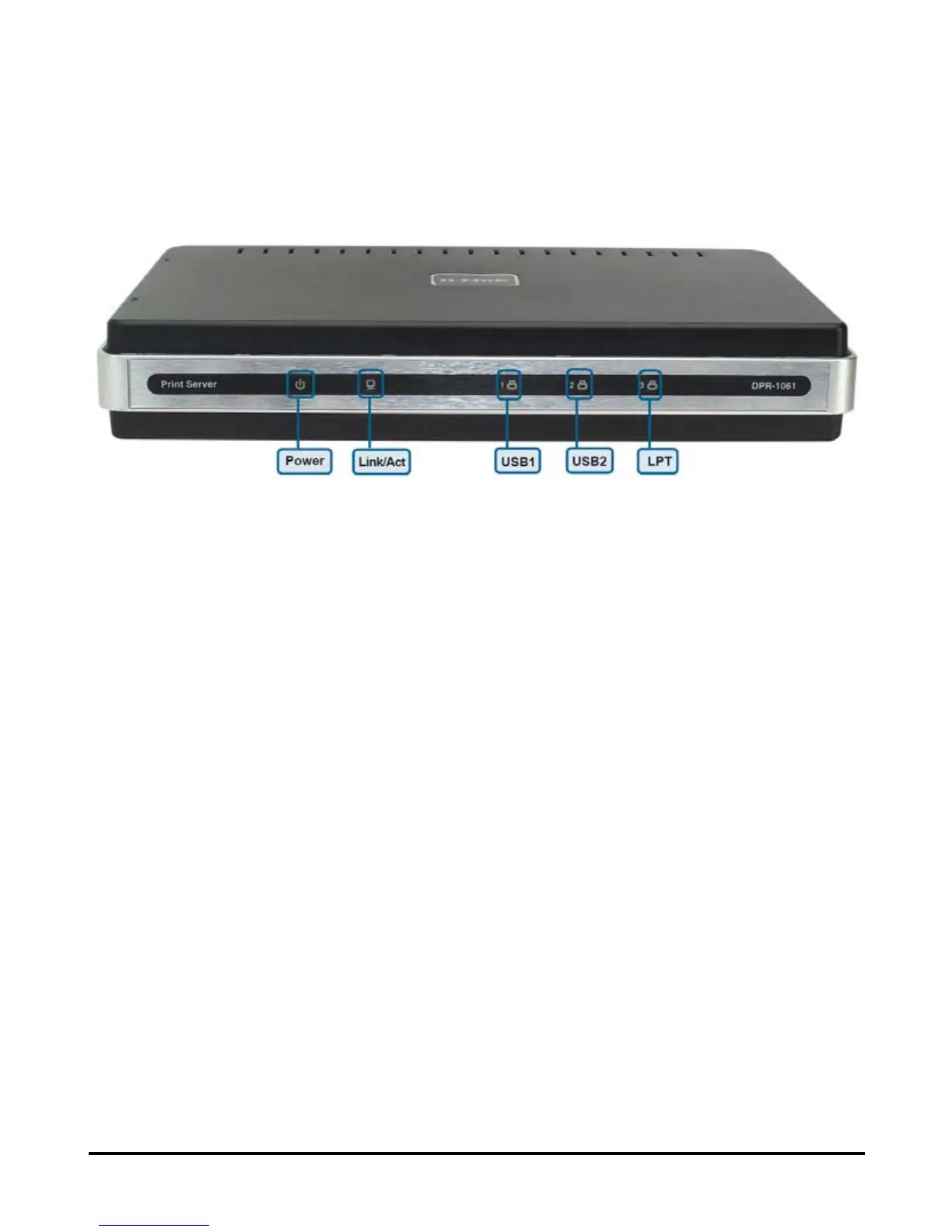

The front panel of the Print Server features five LED indicators:
 Power
Steady green confirms that the Print Server is powered ON.
 Link/Act
Steady green confirms that the Print Server has a good connection to the Ethernet or
Fast Ethernet network. The indicator blinks off briefly to indicate that the Print Server
is receiving or transmitting from the network.
 USB1, USB2, LPT
When these LEDs light in steady green, it indicates the printer is on line now.
While if these LEDs light in blinking green, it indicates that data is transferred
between print server and printer.
These three indicators are also used by the Print Server’s Power-ON Self
Test (POST) to indicate any hardware failures.

D-Link DPR-1061 Specifications

General

Networking standards	IEEE 802.3
Network connection type	Ethernet LAN
Supported network protocols	TCP/IP, NetBEUI, IPP
Interface	10/100Base-TX
Dimensions (WxDxH)	192.5 x 118.4 x 31 mm
Power requirements	5.0V DC/2.5A
Compatible operating systems	Windows Vista/XP/2000/NT 4/ME/98SE/95 Apple Mac OS 9.x - MAC OS X 10.4.x Linux UNI X lpr/lpd (HP-UX, SunOS, Solaris, SCO, UnixWare, IBM AIX) NetWare 5.x
DC-in jack	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 50 °C
Certification	FCC, CE, C-Tick, IC, CSA

Weight and Dimensions

Depth	118.4 mm
Width	192.5 mm
Height	30.1 mm
Weight	292 g
